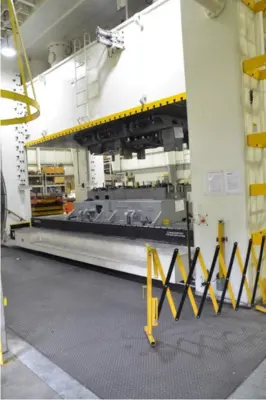

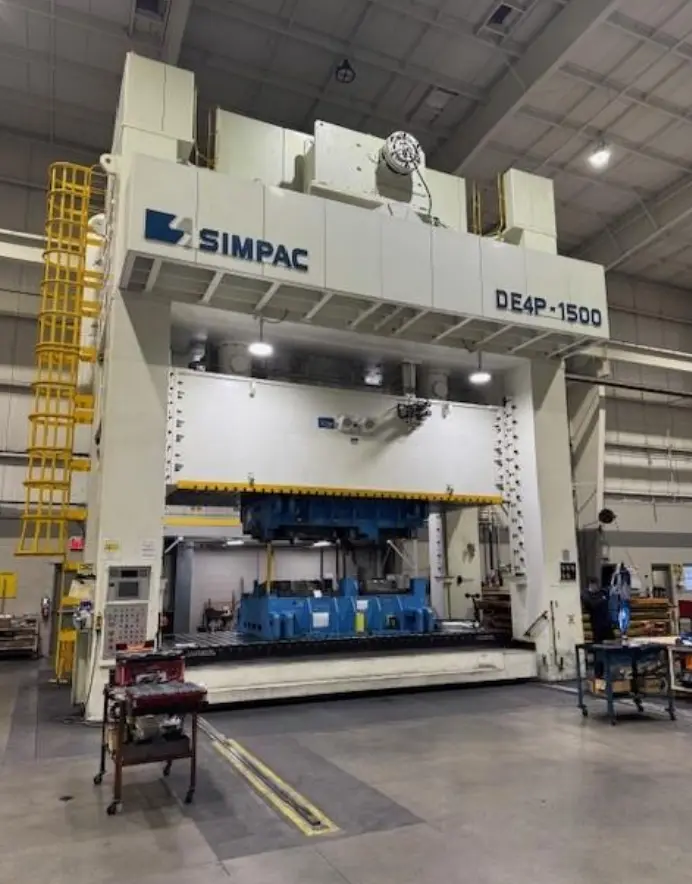

SIMPAC DE4P-1500 in Excellent Condition - Low Usage
Have one to sell?
ConditionUsed
1 available
Make SIMPAC -
Model DE4P-1500 -
Tonnage 1500 metric ton
Year 2017 -
Bed size (LR x FB) 6000 X 2500 mm
Speed 10 - 20 SPM
Stroke Length 900 mm
Die Height 1600 mm
Bolster size (LR x FB) Moving 6000 X 2500 mm
Bolster thickness 300 mm
Main Motor 160 X 4 (AC) Kw x P
Adjust Motor 15 X 6 Kw x P
Rated Voltage 440 VAC
Control Voltage 24 VDC
Rated Frequency 60 Hz
SCCR 65 kA
Safety Distance 716 mm
Make SIMPAC -
Model DE4P-1500 -
Tonnage 1500 metric ton
Year 2017 -
Bed size (LR x FB) 6000 X 2500 mm
Speed 10 - 20 SPM
Stroke Length 900 mm
Die Height 1600 mm
Bolster size (LR x FB) Moving 6000 X 2500 mm
Bolster thickness 300 mm
Main Motor 160 X 4 (AC) Kw x P
Adjust Motor 15 X 6 Kw x P
Rated Voltage 440 VAC
Control Voltage 24 VDC
Rated Frequency 60 Hz
SCCR 65 kA
Safety Distance 716 mm
Make SIMPAC -
Model DE4P-1500 -
Tonnage 1500 metric ton
Year 2017 -
Bed size (LR x FB) 6000 X 2500 mm
Speed 10 - 20 SPM
Stroke Length 900 mm
Die Height 1600 mm
Bolster size (LR x FB) Moving 6000 X 2500 mm
Bolster thickness 300 mm
Main Motor 160 X 4 (AC) Kw x P
Adjust Motor 15 X 6 Kw x P
Rated Voltage 440 VAC
Control Voltage 24 VDC
Rated Frequency 60 Hz
SCCR 65 kA
Safety Distance 716 mm
Imperial
| Tonnage | 1,500 T |
| Stroke | 35.433" |
| Shut Height | 62.992" |
| SPM | 0 strokes/min. |
| Vari Speed (Yes/No) | 'Yes' |
| Bed W | 236.22" |
| Bed L | 98.425" |
Make SIMPAC -
Model DE4P-1500 -
Tonnage 1500 metric ton
Year 2017 -
Bed size (LR x FB) 6000 X 2500 mm
Speed 10 - 20 SPM
Stroke Length 900 mm
Die Height 1600 mm
Bolster size (LR x FB) Moving 6000 X 2500 mm
Bolster thickness 300 mm
Main Motor 160 X 4 (AC) Kw x P
Adjust Motor 15 X 6 Kw x P
Rated Voltage 440 VAC
Control Voltage 24 VDC
Rated Frequency 60 Hz
SCCR 65 kA
Safety Distance 716 mm
