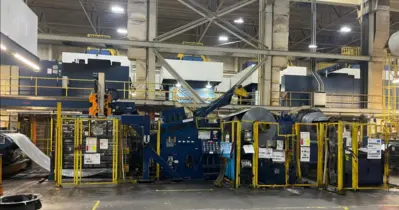

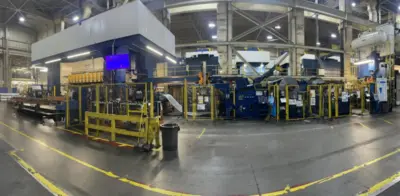

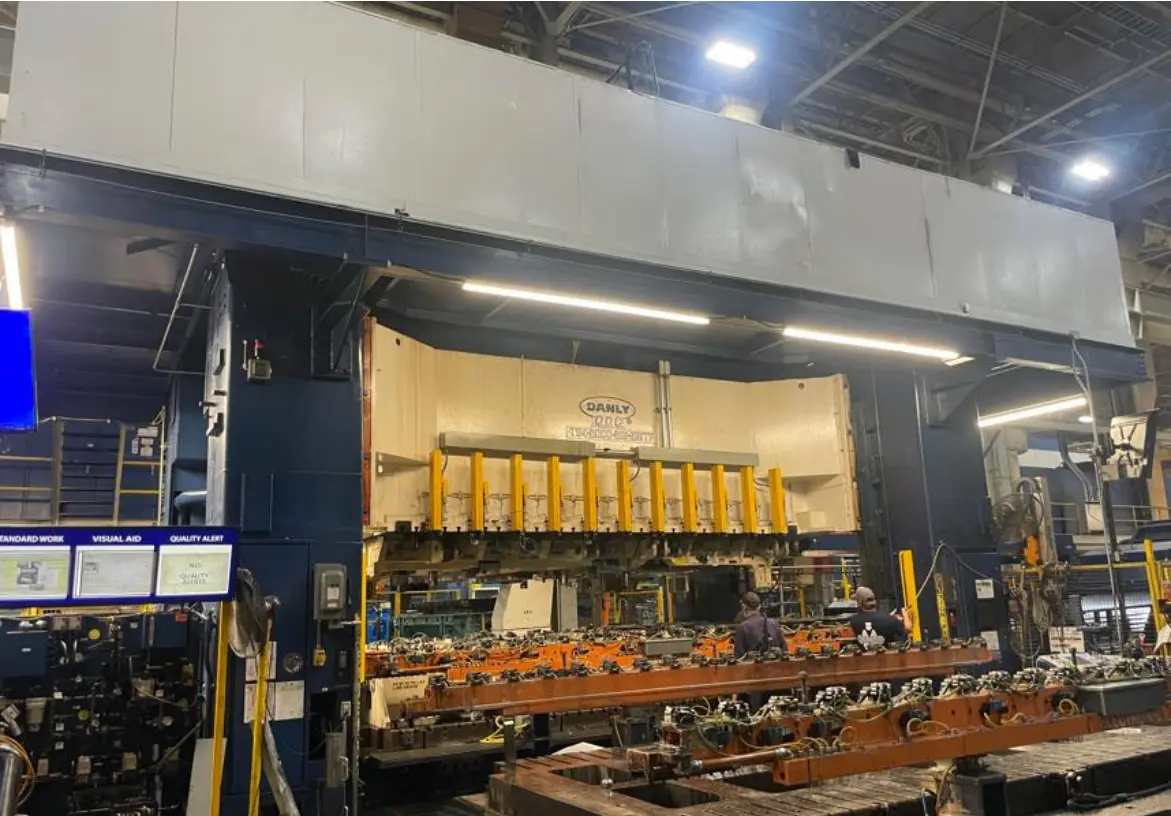

2000T DANLY Transfer Press = Transfer + Destacker + Coil Feeder

Description

Make: Danly
Model TS4-2000-216-108TF -
Tonnage 2000 ton
Year 1986 -
Bolster (L-R x F-B) 216 x108 inches
Bolster Height 8 inches
Window Height 30 inches
Window Width 140 inches
Between Gibbs 248 inches
Stroke 30 inches
Shut Height (Min.) 52 inches
Shut Height (Max.) 54 inches
Adj 2 inches
Speed 12 - 24 spm
No cushion - -
Feed line Height (max. / min) 33 / 23 inches
Press Feed Sizes – Width 72 inches
Press Feed Sizes – Pitch 0 - 60 inches

Feeder / Straightener
Make CHS -
Type Servo -
Model DRF672 -
Width Max. 72 inches
Material thickness X Width - 0.125 X 72
225 X 24
.27 X 26
inches
Feed above bolster (min.) 30 Inches
Feed Length Capacity 0 – 99 -
Feed Direction Right – Left -
Decoiler
Make HMS -
Type Servo -
Model Number PS4X7X72 -
Max. Coil Weight 40,000 Lbs
Max. Coil Width 72 inches
Max. Coil Dia. ID 23.5 inches
Min. Coil Dia. ID 19.5 inches
Line speed range 20 - 100 FPM
Destacker
Feed Stroke 0 - 99 inches
Feed Height 30 inches
Stack Max. Height 35 inches
Transfer Rail
Press Column Opening 144 inches
Max. Distance Between Rails 120 Inches
Min. Distance Between Rails 43 Inches
Max Clamp Adjust 36 Inches
Rail Height from Bolster 23 inches
Max. Rail Lift 10 inches
Max. Pitch 42 inches
STD Pitch 36 inches
