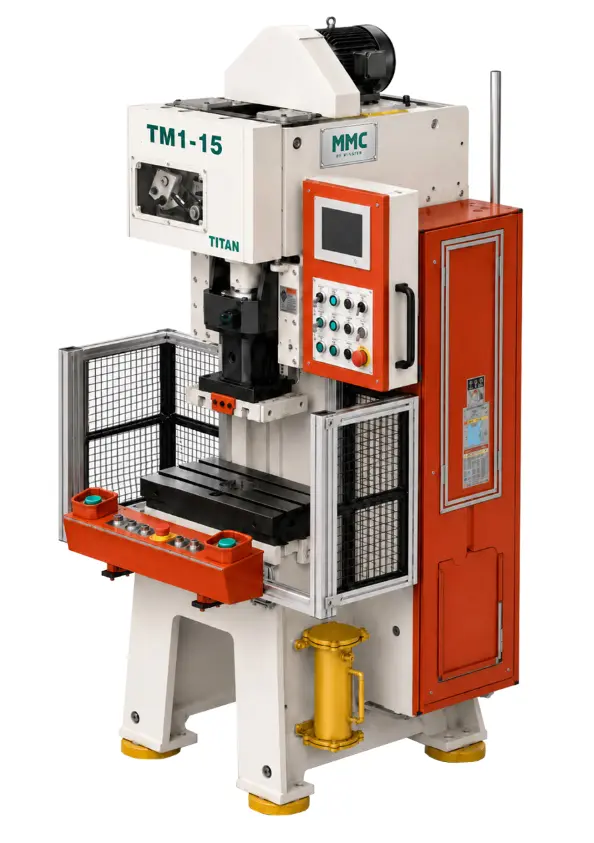

TITAN TM1-15 Press - NEW in Stock
Have one to sell?
ConditionNew
1 available
New
The Titan 15 Ton Gap Frame Press is OSHA/ANSI compliant. These presses are built to our own specifications, therefore making them extremely reliable and allowing us to provide all the latest features available.
Capacity in Tons 17
Torque Capacity from BDC 0.047″
Stroke Length 3.14″
Speed Range at Full Tonnage 90-180 SPM
Area of Slide (R-L x F-B) 14.17″ x 8.66″
Recommended Max Upper Die Weight 220 lbs
Bolster Plate Thickness 1.96″
Area of Bolster (R-L x F-B) 25.59″ x 12.20″
Throat Depth (F-B) 6.34″
Bed Deflection 0.0018″
Shutheight Maximum (SDAU) 8.66″
Shutheight Adjustment 1.96″
Drive Motor 3 HP
Compressed Air Requirement 80 psi
Electrics (230V or 460V) / 3 Phase
Approximate Press Size (R-L x F-B) 30.81″ x 34.71″
Approximate Press Height 87.36″
Approximate Press Weight 2,860 lbs
Standard Features
Automatic Recirculating Oil Lubrication
Automatic Oil Counterbalance Lubrication
Articulated Control Arm Mounting
Area Die Lights
Fabricated Steel Frame
Wet Clutch/Brake
Hydraulic Overload Protection
6-Point Slide Guiding
Single Gear Reduction Drive
Isolator Mounts
Built to JIS Class 1 Accuracy Standards
Powered Die Height Adjustment w/Electronic Readout in Millimeters and Inches
PLC-Based Control with 10” Color Touch Screen
8 Channel PLS
8 Input Die Protection
