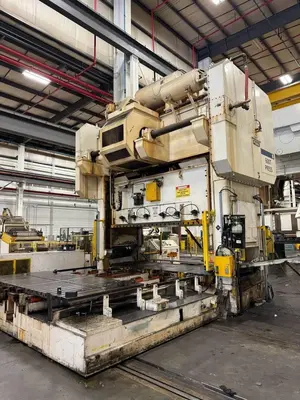

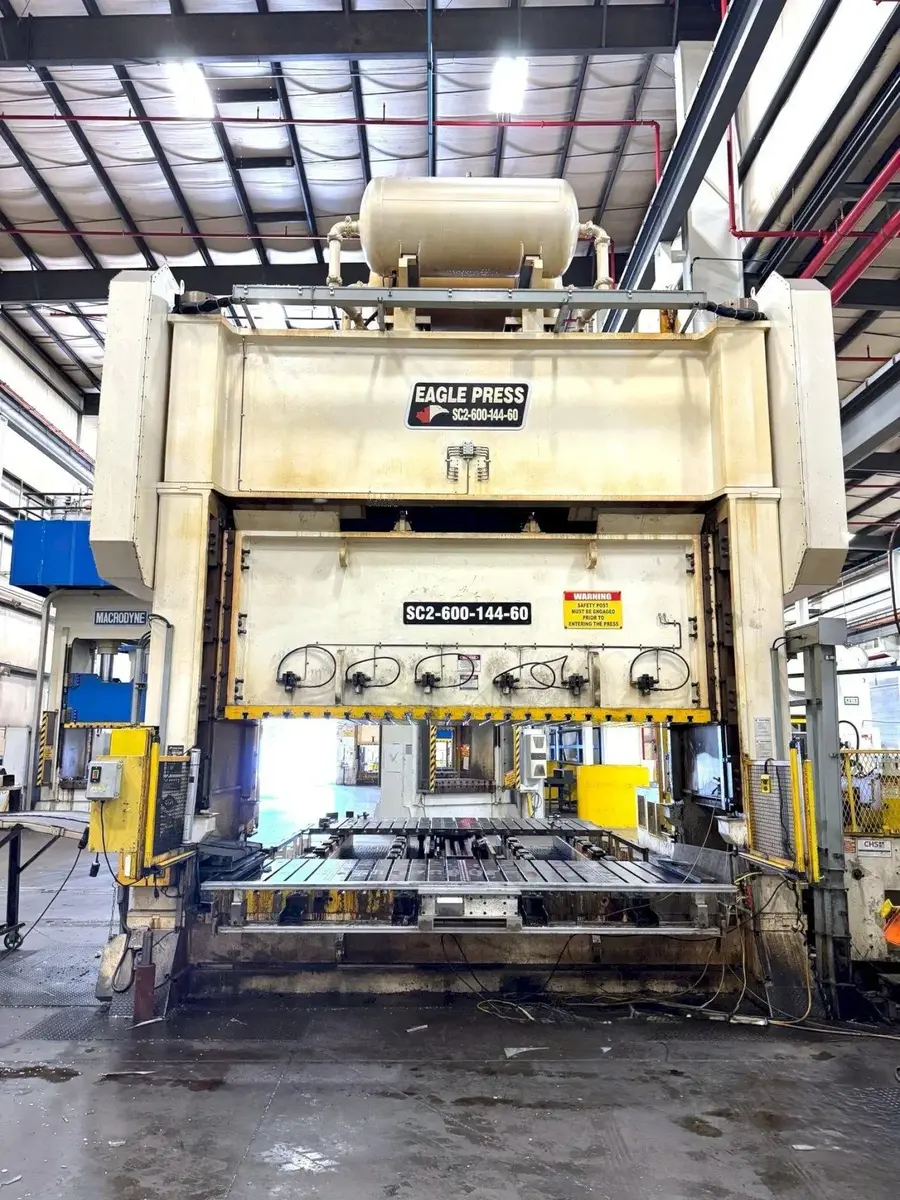

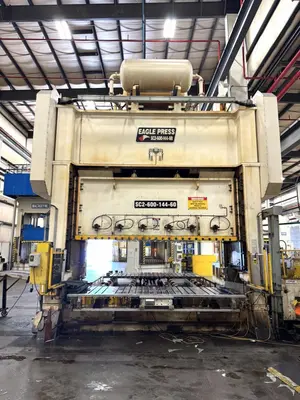

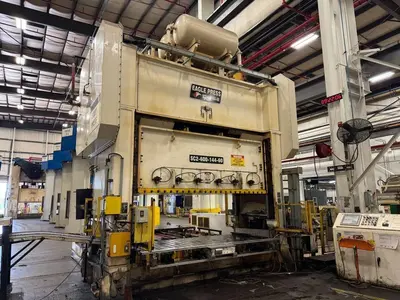

EAGLE 600 Ton 144" x 60" - 16" Stroke / CHS 48" Coil Feed Line (2014)

Description

600 U.S. Tons Capacity
16 in. Stroke
12 in. Shut Height Adjustment
34 in. Over Bolster SDAU
20 - 45 SPM
Full Tonnage @ 20 SPM

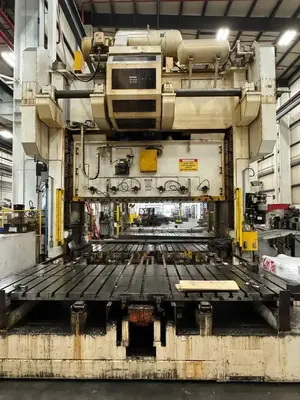

144" x 60" Bed Area
50" Window

EQUIPPED WITH:

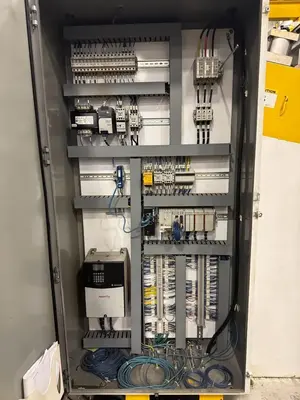

Allen Bradley Controls
Air Clutch & Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram & Bolster Plate
Motor and Controls
Palm Buttons
Dual Ross Air Valve
Motorized Slide Adjustment
Hydraulic Tie Rod Nuts

ATLAS Die Change System
PASCAL Die Clamping System
Scrap Shaker

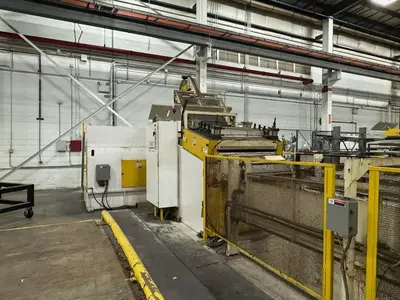

CHS COIL FEED LINE SPECIFICATIONS
2014 CHS Coil Feed Line
Coil Weight Capacity: 20,000 Lbs.
Coil width capacity: 48"
Stock thickness capacity: .140" x 48" Wide
Stock thickness capacity: .250" x 12" Wide

Servo Roll Feed Model MX-4548
4.5" Diameter Feed Rolls
Piloting Upper Feed Roll
Cabinet Base Mounted with Adjustable Pass Line

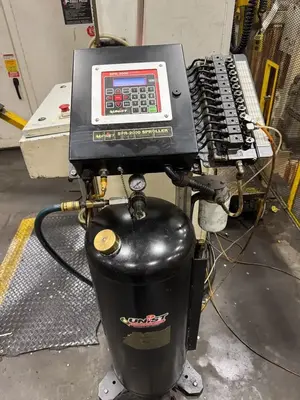

UNIST Stock Lubricator System

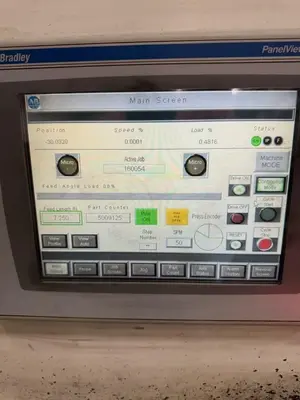

Allen Bradley Servo Drive And Controls

Exit Threading Tables MODEL ETT-48
Dual Side
Bomb Bay Door Design

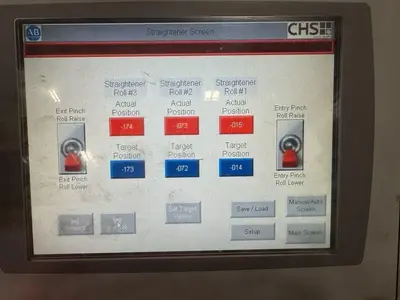

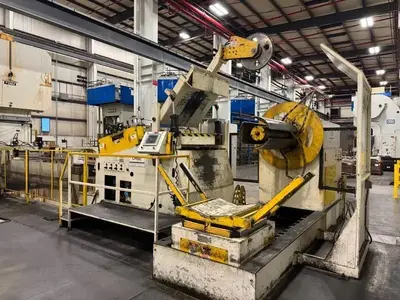

Powered Coil Straightener Model PS-350-48
Seven Straightening Rolls x 3.5" Diameter
Back ups on upper and lower straightening rolls
Entry Pinch Rolls w/ Air Operated Actuation
Exit Pinch Rolls w/ Air Counter Balance Feature
Adjustable Stock Width Edge Guides
Coil Hold Down Arm with Motorized End Wheel
Stock Peeler Table
Exit Side Cascade Loop Support Rollers
Allen Bradley VFD Control System
Laser Loop Control

CHS Coil Reel and Load Car Model R200-48
Three Leaf Mandrel with Hydraulic Expansion
Jog Drive F/R
Drag Brake (Adjustable Tensioning)
Traveling Coil Load Car
Powered Lift And Travel
