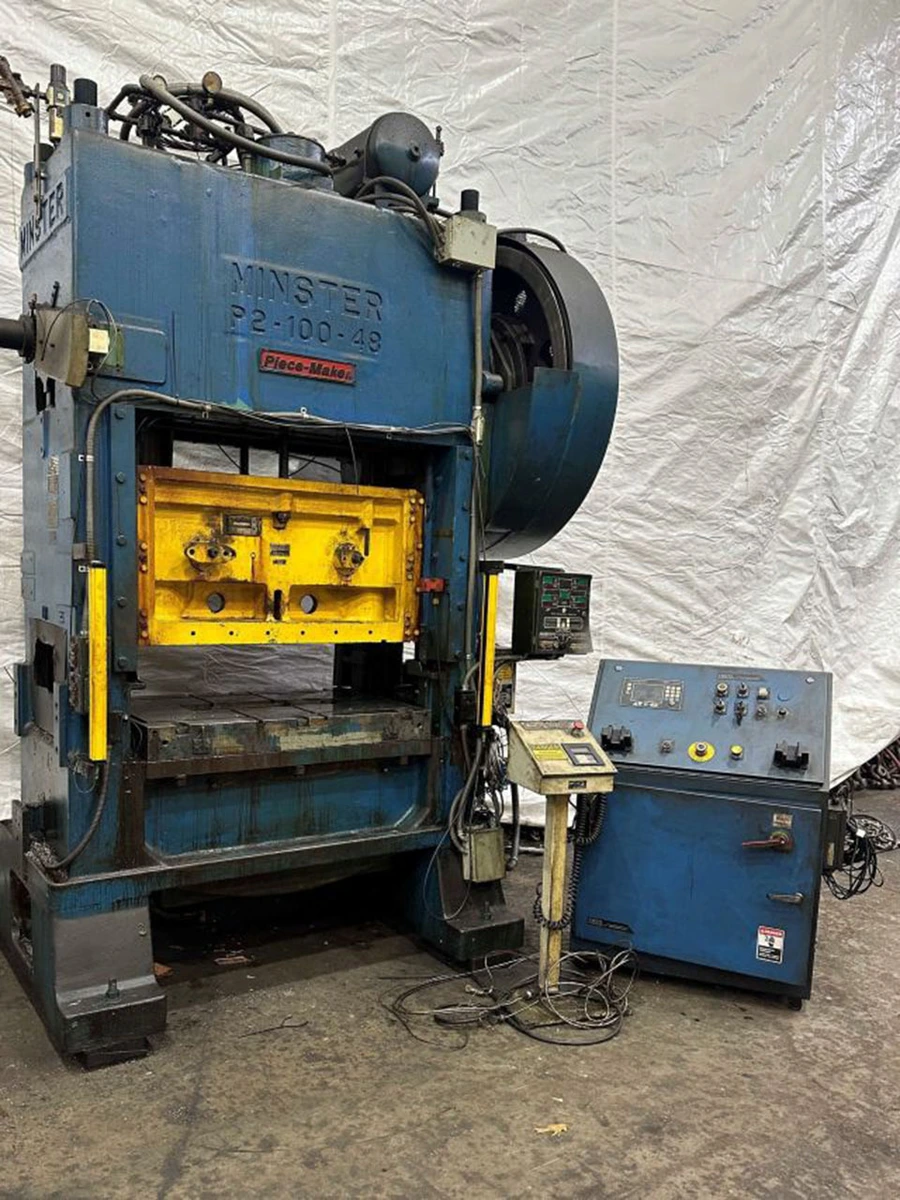

100 TON MINSTER SSDC PIECE-MAKER PRESS
Have one to sell?
ConditionUsed
1 available
Tonnage = 100
Stroke = 3"
Speed (Variable) = 100-200 SPM
Slide Adjustment = 4"
Shut Height (S.D.A.U.) = 17.5"
Bed Area = 48" L-R x 31" F-B
Slide Area = 48" L-R x 18" F-B
Side Window Width = 16"
Motor = 20 HP
Electrics = 230/460V/60HZ/3PH
Weight (Approx.) = 33,000 lbs
Air Clutch and Brake
Recirculating Lubrication System
Dual Air Counterbalances
Cieco Resolver Based Automator 1 Control
Time-Based Brake Monitor
Die Protection
PLS Outputs
Floor Mounted Operator Console
Eight Point Gibbing
Tie Rod Construction
4.75" T-Slotted Bolster Plate (with Center Cutout)
(4) Isolation Mounts
