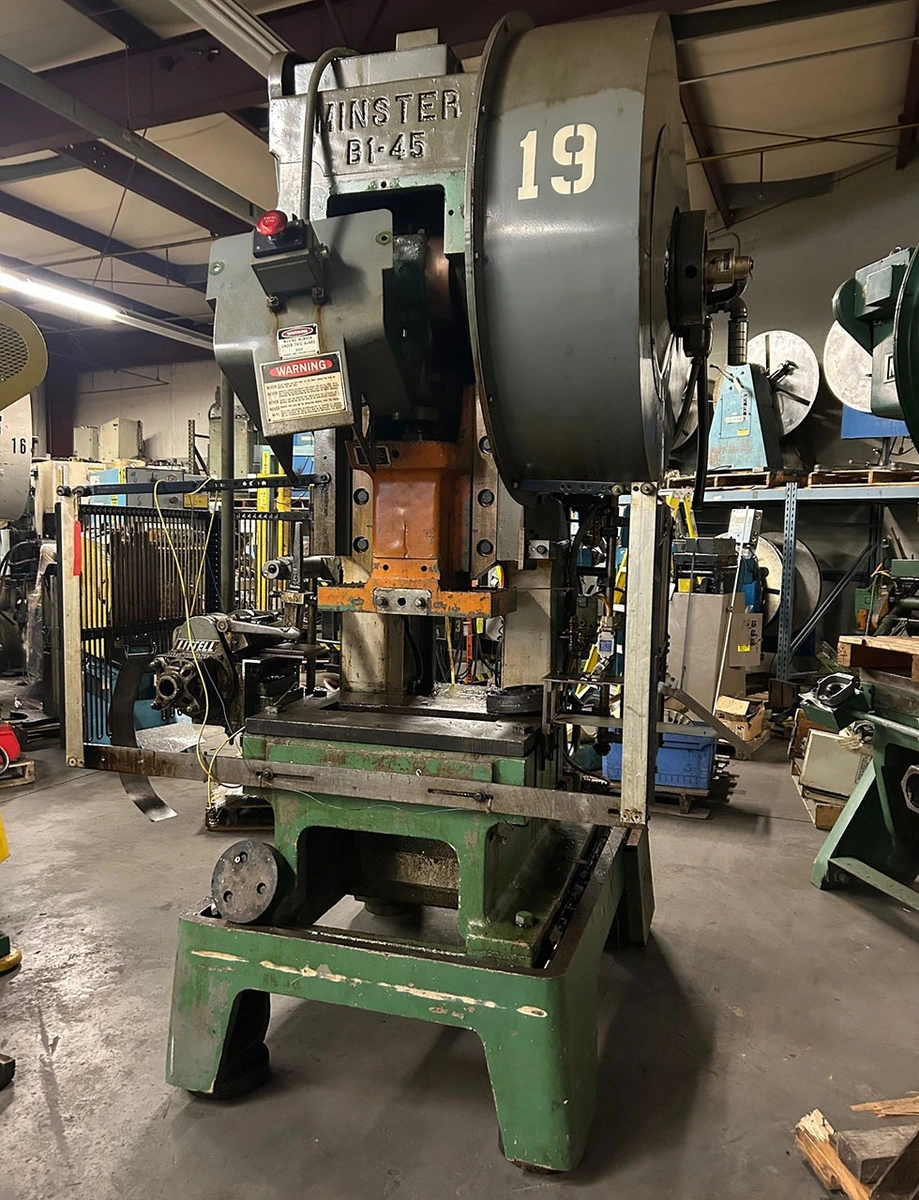

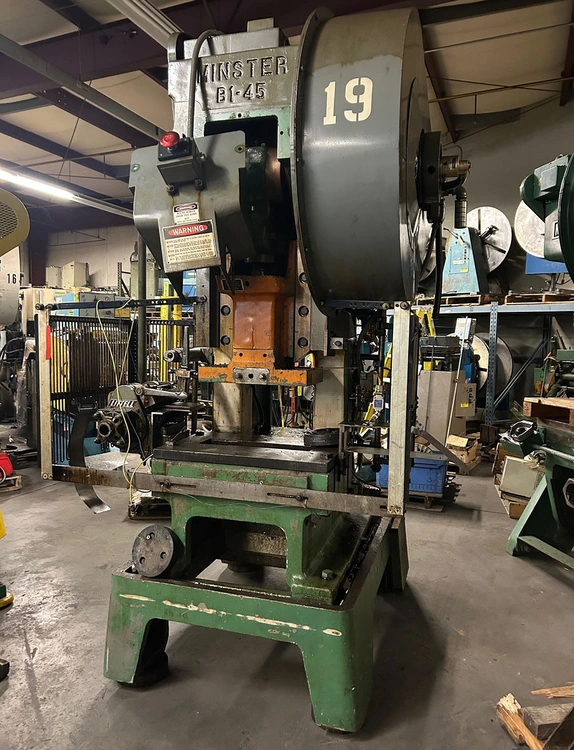

45 TON MINSTER HIGH SPEED FIXED BASE PRESS
Have one to sell?
ConditionUsed
1 available
Tonnage = 45
Stroke = 1.25"
Speed (Variable) = 0-700 SPM
Slide Adjustment = 2.75"
Shut Height (S.D.A.U.) = 11.75"
Ram Size = 18" L-R x 10.5" F-B
Bed Area = 27.5" L-R x 18" F-B
Motor = 10 HP
Electrics = 220/440V/60HZ/3PH
Weight (Approx.) = 12,000 lbs.
Minster Air Clutch and Brake
OSHA Compliant Press Control with Time-Based Brake Monitor
Dual Safety Clutch Valve
Recirculating Lubrication System
1.50" Bolster Center Cutout (16" L-R x 4.125" F-B)
(4) Isolation Mounts
