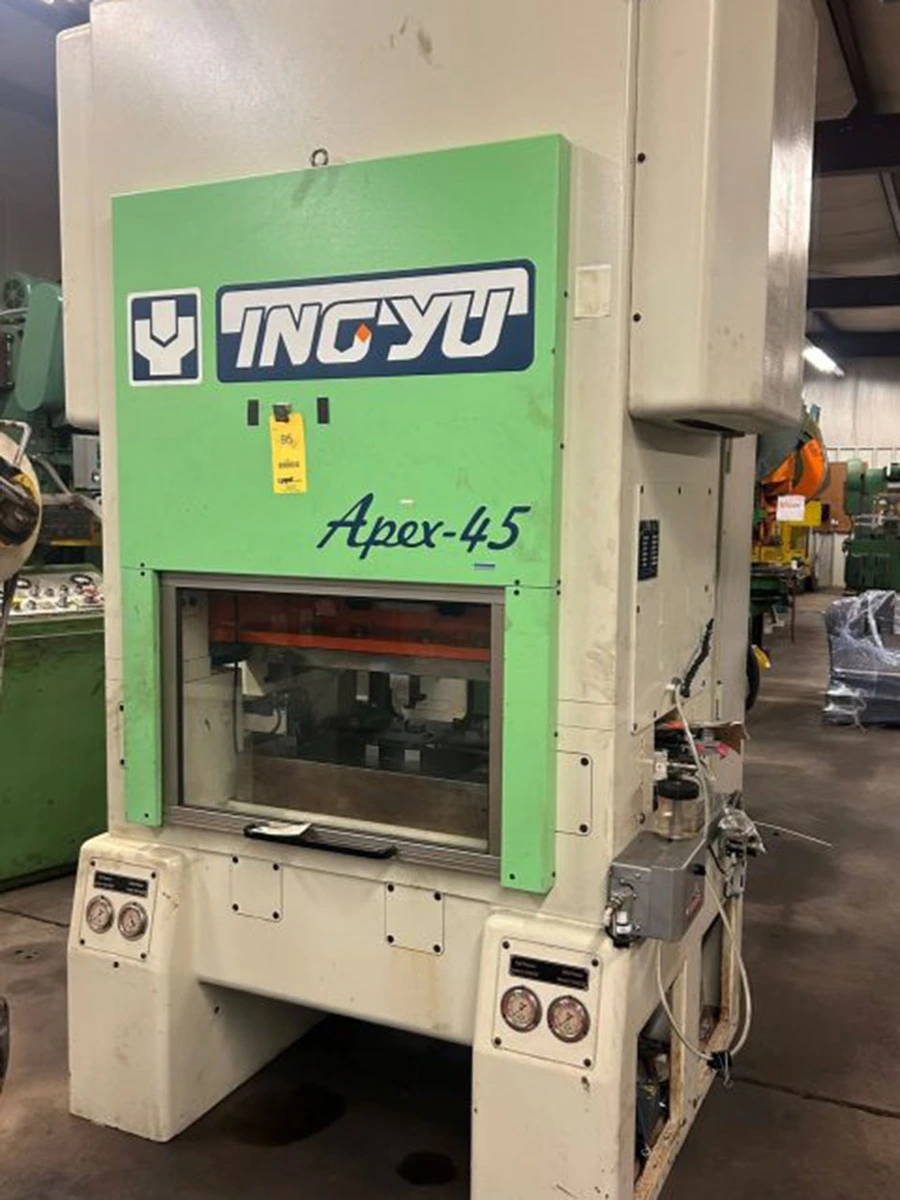

45 TON INGYU STRAIGHT SIDE HIGH SPEED PRESS
Have one to sell?
ConditionUsed
1 available
Tonnage = 45 Ton
Stroke = 0.787"
Speed (Variable) = 200-1100 SPM
Slide Adjustment = 2.0"
Shut Height (S.D.A.U.) = 11.02"
Slide Area = 31.50" L-R x 15.75" F-B
Bed Area = 50" L-R x 15.75" F-B
Side Window Width = 25"
Motor = 15 HP
Electrics = 220/440V/60HZ/4PH
Weight (Approx.) = 16,000 lbs.
Refrigerant Cooling System
Operator Console
Dual Safety Clutch Valve
Unist Lubrication System
Front & Rear Die Safety Windows
5" Bolster
(4) Isolation Mounts
