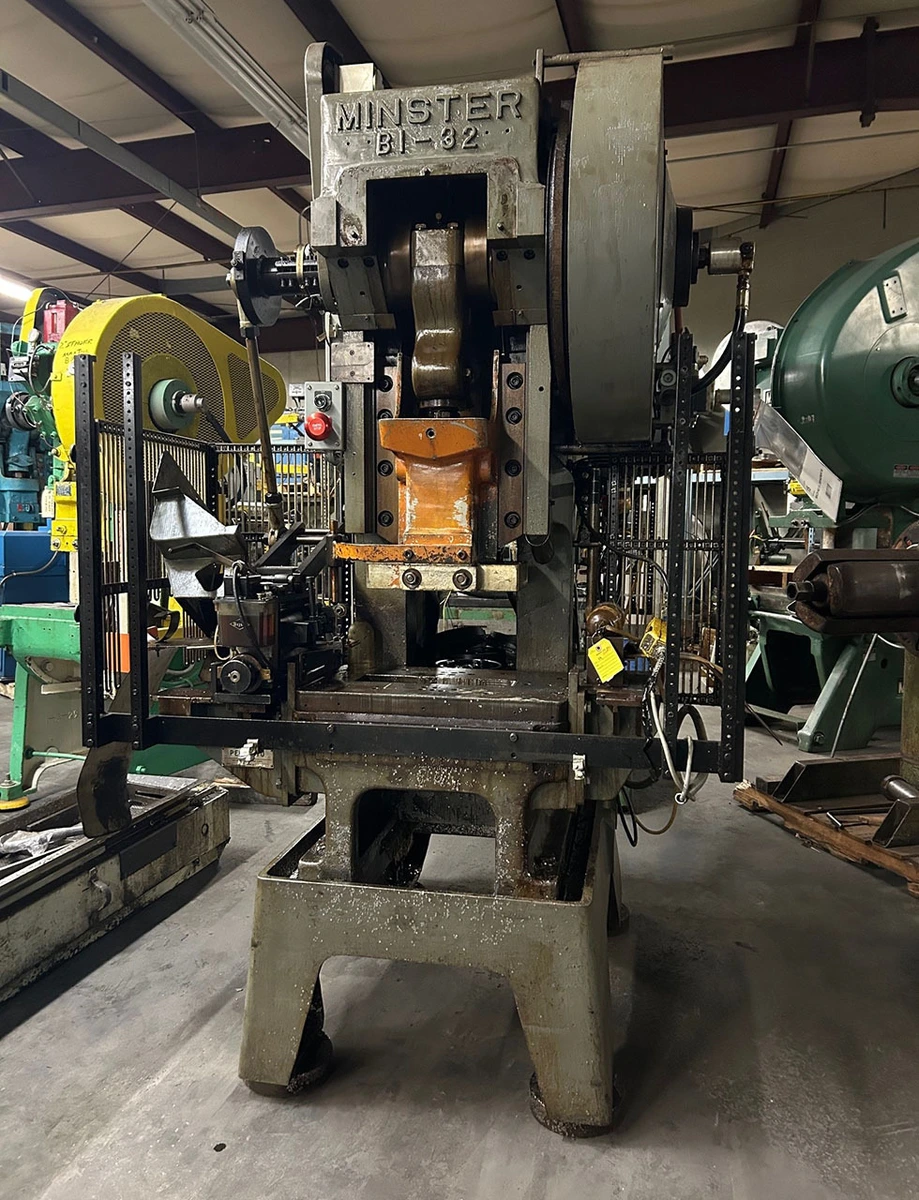

32 TON MINSTER C-FRAME FIXED BASE PRESS
Have one to sell?
ConditionUsed
1 available
Tonnage = 32
Stroke = 1.5"
Speed (Variable) = 0-200 SPM
Slide Adjustment = 2.25"
Shut Height (S.D.A.U.) = 8.25"
Ram Size = 14" L-R x 7.5" F-B
Bed Area = 23.75" L-R x 15" F-B
Motor = 3 HP
Electrics = 220/440V/60HZ/3PH
Weight (Approx.) = 4,900 lbs.
Minster Air Clutch and Brake
OSHA Compliant Press Control with Time-Based Brake Monitor
Dual Safety Clutch Valve
Recirculating Lubrication System
Floor Operator Control
1.75" Bolster Center Cutout (14" L-R x 3.75" F-B)
(4) Isolation Mounts
