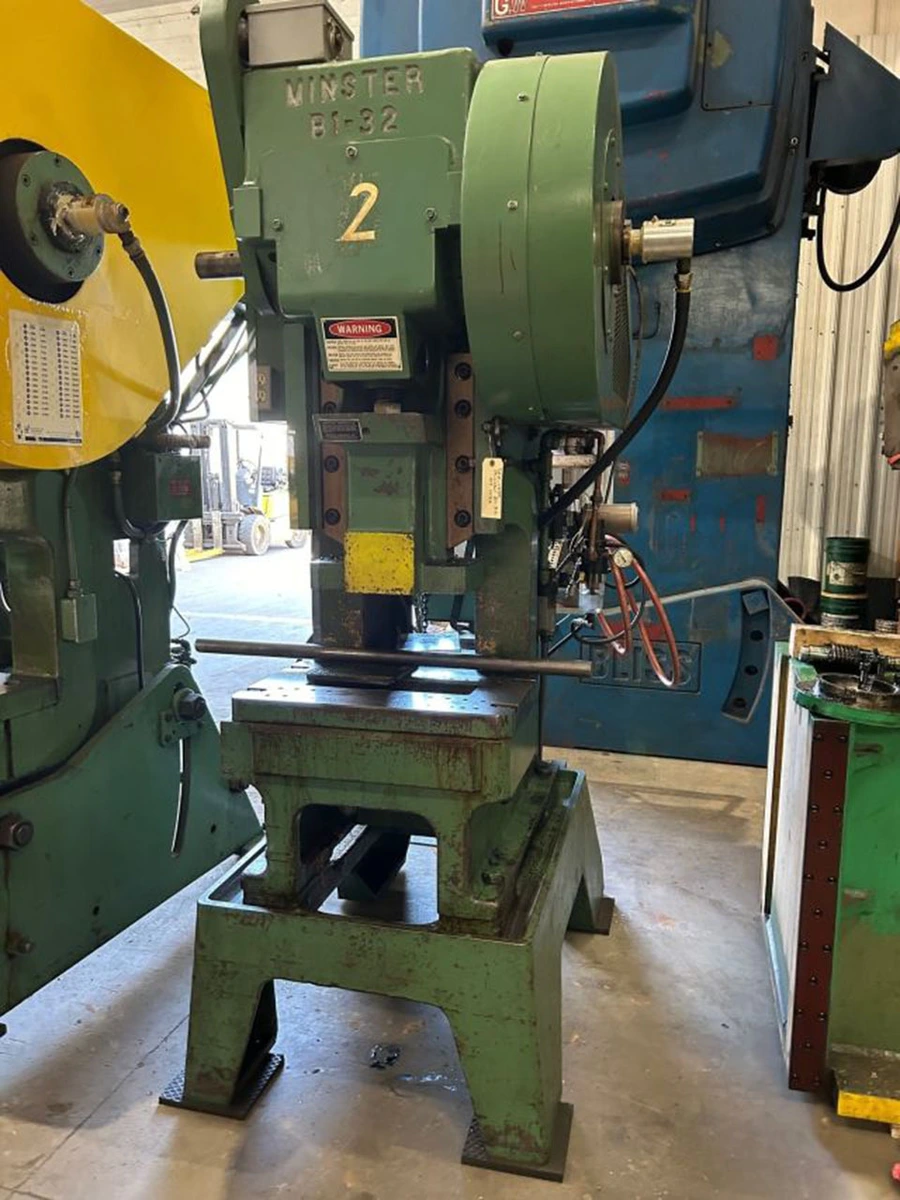

32 TON MINSTER C-FRAME FIXED BASE PRESS
Have one to sell?
ConditionUsed
1 available
Tonnage = 32
Stroke = 1.5"
Speed (Fixed) = 400 SPM
Slide Adjustment = 2.25"
Shut Height (S.D.A.U.) = 9.5"
Ram Size = 14.25" L-R x 7.5" F-B
Bed Area = 24" L-R x 15" F-B
Motor = 3 HP
Electrics = 220/440V/60HZ/3PH
Weight (Approx.) = 4,900 lbs.
Minster Air Clutch and Brake
OSHA Compliant Press Control with Time-Based Brake Monitor
Dual Safety Clutch Valve
Recirculating Lubrication System
Floor Operator Control
2" Bolster (Center Cutout 15" L-R x 4.5" F-B)
(4) Isolation Mounts
