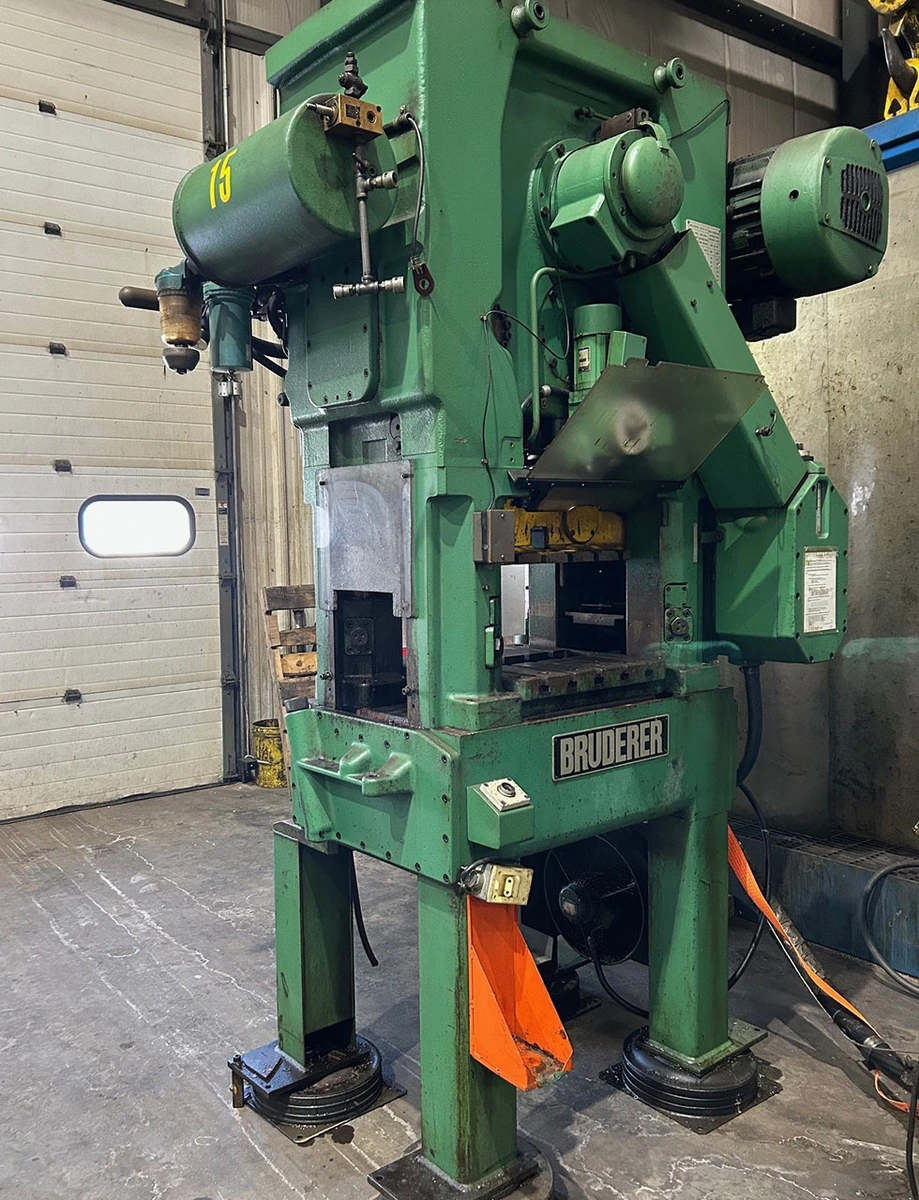

30 TON BRUDERER HIGH SPEED PRESS
Have one to sell?
ConditionUsed
1 available
Capacity = 30 Ton
Stroke (Adjustable) = 0.5" – 1.5"
Stroke per Minute (Variable) = 100-1500
Slide Adj = 2"
Shut Height (SDAU) = 9.17"
Side Window Width = 10"
Ram Area = 21" L-R x 21" F-B
Bed Size = 21" L-R x 21" F-B
Motor (Variable Speed) = 10 HP
Electrics = 220/440V/60HZ/3PH
Weight (Approx.) = 7,000 lbs
Air Clutch and Brake
Bruderer OEM Press Control
Bruderer Feeder Model #BBV 202/120 (L-R)
(4) Post Frame Design
Top Drive
Hydrostatic Variable Speed Drive
T-Slotted Ram
2" T-Slotted Bolster
(4) Press Mounts
