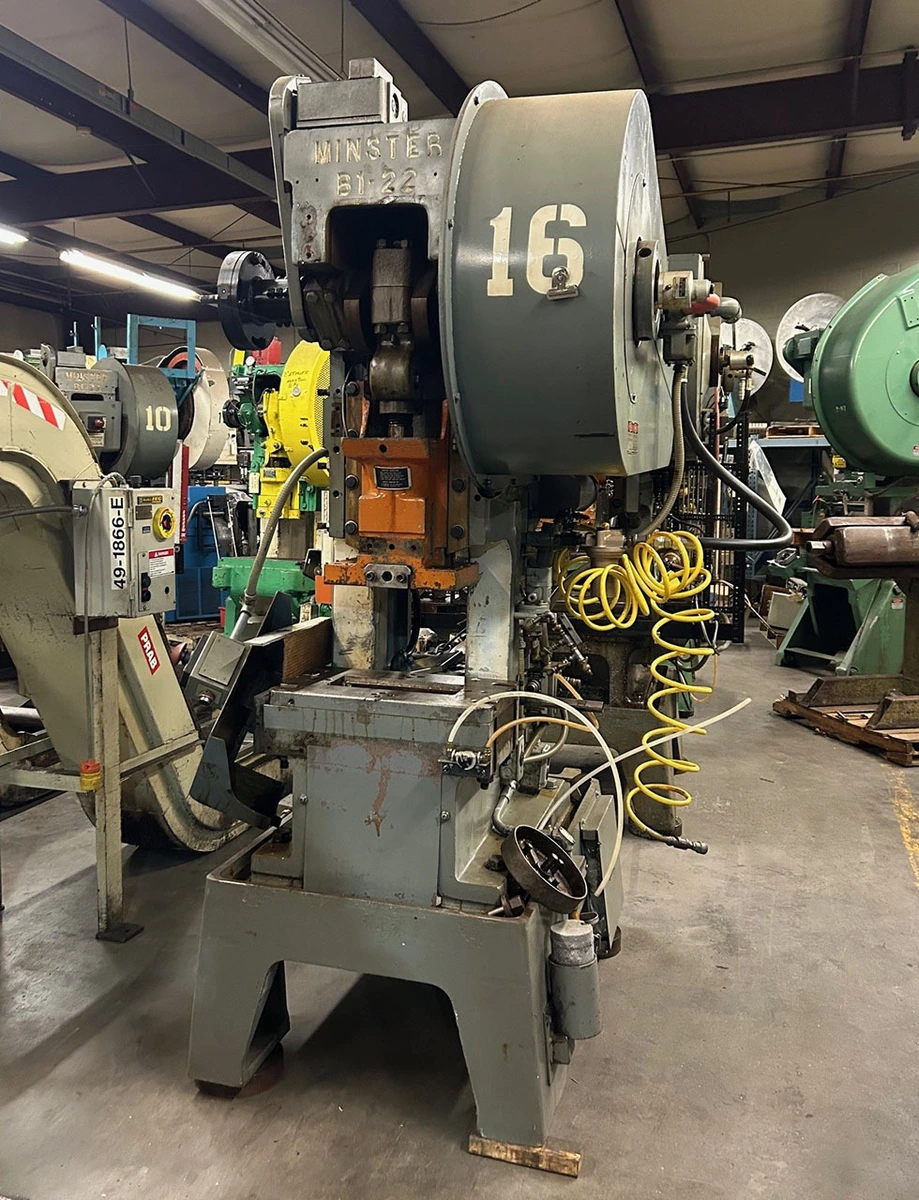

22 TON MINSTER HIGH-SPEED FIXED BASE PRESS
Have one to sell?
ConditionUsed
1 available
Tonnage = 22 Ton
Stroke = 1″
Speed (Variable) = 0-700 SPM
Slide Adjustment = 2″
Shut Height (S.D.A.U.) = 10.25″
Ram Size = 12″ L-R x 8″ F-B
Bed Area = 20″ L-R x 12″ F-B
Motor = 3 HP
Electrics = 220/440V/60HZ/3PH
Weight (Approx.) = 4,900 lbs.
Minster Air Clutch and Brake
OSHA Compliant Press Control with Time Based Brake Monitor
Dual Safety Clutch Valve
Recirculating Lubrication System
Floor Operator Console
1.25″ Bolster
(4) Isolation Mounts
