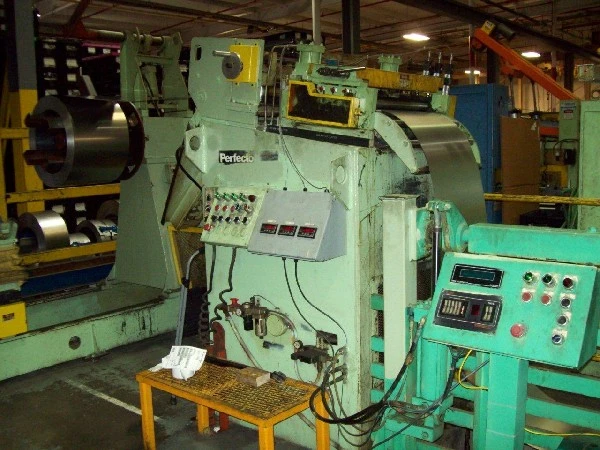

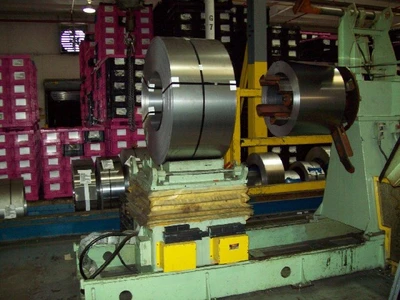

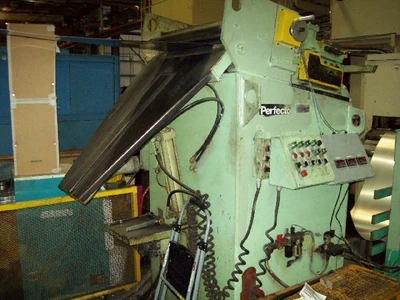

Used PERFECTO RS-6-24-B / 22-24-7 / 400-24 | Coil Reels and Straighteners

Perfecto Coil Reel Uncoiler and Powered Coil Straightener Combination Specifications:
Coil weight capacity: 7,000 Lbs.
Coil width capacity: 24"
Stock thickness capacity: .065" x 24" Wide
Stock thickness capacity: .090" x 12" Wide
Expansion range: 20" - 24"
Coil O.D. capacity: 60"

Perfecto Coil Reel Uncoiler and Powered Coil Straightener Combination Equipment and Features:

Perfecto Coil Reel Uncoiler Model No.: RS-6-24-B, Serial No.: R3-91057
Four leaf mandrel coil reel
Heavy duty hydraulic coil reel mandrel expansion
Coil hold down arm
Threading drive for jog forward and reverse
Air brake mounted on main coil reel spindle
Adjustable tensioning
Self contained hydraulic unit

Perfecto Traveling Coil Load Car Model No.: LC-1H / Serial No.: L1-91056
Powered lift and travel
Narrow coil supports on coil car

Perfecto Powered Coil Straightener Model No.: 22-24-7, Serial No.: S3-91058
Entry powered coil straightener pinch roll
Air operated upper powered coil straightener pinch roll adjustment
Seven coil straightening rolls x 2.2 inch diameter
Independent upper coil straightening roll adjustments with LED depth readouts
Hand crank adjustable stock width edge guides
Inclined powered coil straightener  head
Outboard air pressure regulators and gauges
Stock peeler with spade extension
Variable speed powered coil straightener pay out
Common operator's control console for coil reel, car, threading, and powered straightener functions
Remote pendant control for jog forward and reverse
Electrical safety disconnect
Three roll cascade loop support section
