Used 1992 PERFECTO DR100-14 / 38-14-7 | Coil Feed Lines

Perfecto Double End Conventional Complete Coil Feed Line Specifications:
Coil weight capacity: 10,000 Lbs. (per side)
Coil width capacity: 14"
Stock thickness capacity: .250" x 14" Wide
Expansion range: 20" Adjustable
Coil O.D. capacity: 60"

Perfecto Double End Conventional Complete Coil Feed Line Equipment and Features:

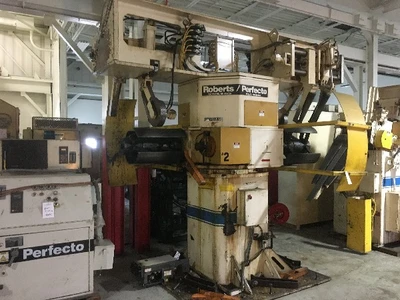

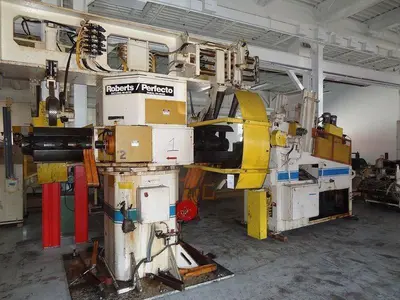

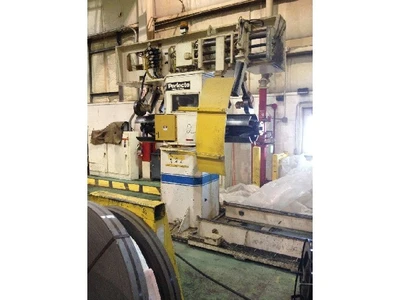

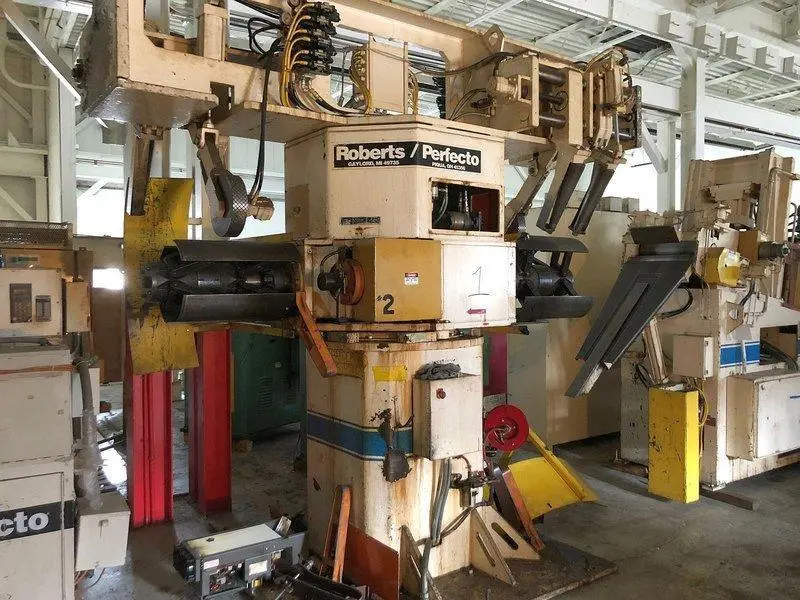

Perfecto Double End Coil Reel Uncoiler Model No.: DR100-14
Three leaf mandrel coil reel (per side)
Hydraulic coil reel mandrel expansion
Thread drives for jog forward and reverse
Powered mandrel rotation (indexing)
Air brakes mounted on main coil reel spindles
Adjustable tensioning
Coil hold down arms with motorized end wheel
Coil loading car with powered lift and travel

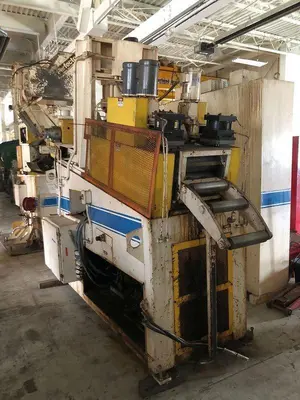

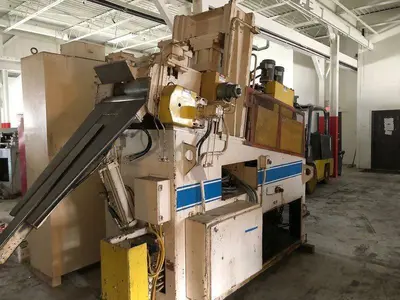

Perfecto Powered Coil Straightener Model No.: 38-14-7
Entry and exit powered coil straightener pinch rolls with air operated adjustments
Seven coil straightening rolls x 3.8" diameter
Motorized individual upper coil straightening roll adjustments
Stock peeler table with extension
Stock end debender
Heavy duty hand crank edge guides
Variable speed powered coil straightener drive system
Automatic lubrication system
Exit cascade loop support rollers
Ultrasonic variable speed loop control

Perfecto Exit Thread Table Model No. ETT-14
Bomb-Bay Door style

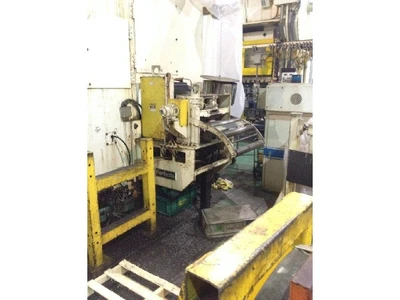

Perfecto Servo Roll Feed Press Feed Model No.: 600-14
Six inch diameter upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment/pilot
Solenoid controlled pilot release
Dual adjustable edge guides - motorized
Anti back up roll - air operated
Centralized lubrication points
Press mounted
INDRAMAT AC servo roll feed drive and controls

Warranty: Standard MDNA 30 day return privilege
Terms: 40% Deposit, net prepaid
