Used LITTELL 90 / 412DH-7PDL | Coil Reels and Straighteners

Littell Coil Reel and Powered Straightener Combination Specifications:
Coil weight capacity: 10,000 Lbs.
Coil width capacity: 12"
Stock thickness capacity: .156" x 12" Wide
Expansion range: 20" - 24"
Coil OD capacity: 72"

Littell Coil Reel and Powered Straightener Combination Equipment and Features:

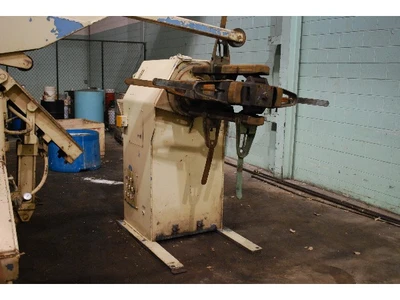

Littell Coil Reel Uncoiler Model No.: 90
Four leaf mandrel coil reel
Hydraulic coil reel mandrel expansion
Thread drive for jog forward and reverse
Air brake mounted on main coil reel spindle
Adjustable tensioning

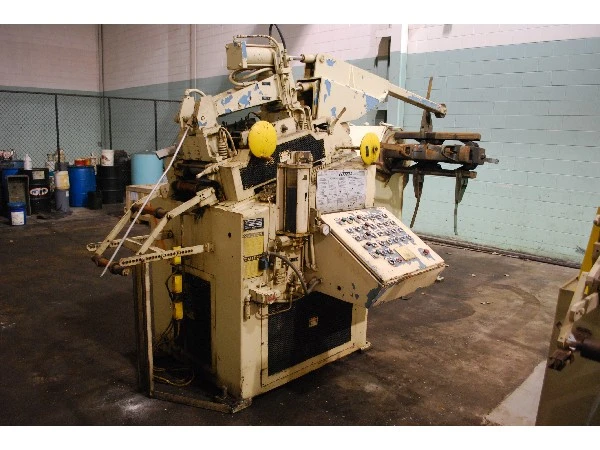

Littell Powered Coil Straightener Model No.: 412DH-7PDL
Entry and exit powered coil straightener pinch rolls
Seven coil straightening rolls x 3.125 diameter
Individual or simultaneous upper coil straightening roll adjustments
Hand crank adjustable stock width edge guides
Coil hold down arm
Stock peeler table
Stock end de-bender
Exit cascade loop support rolls
Automatic lubrication system
