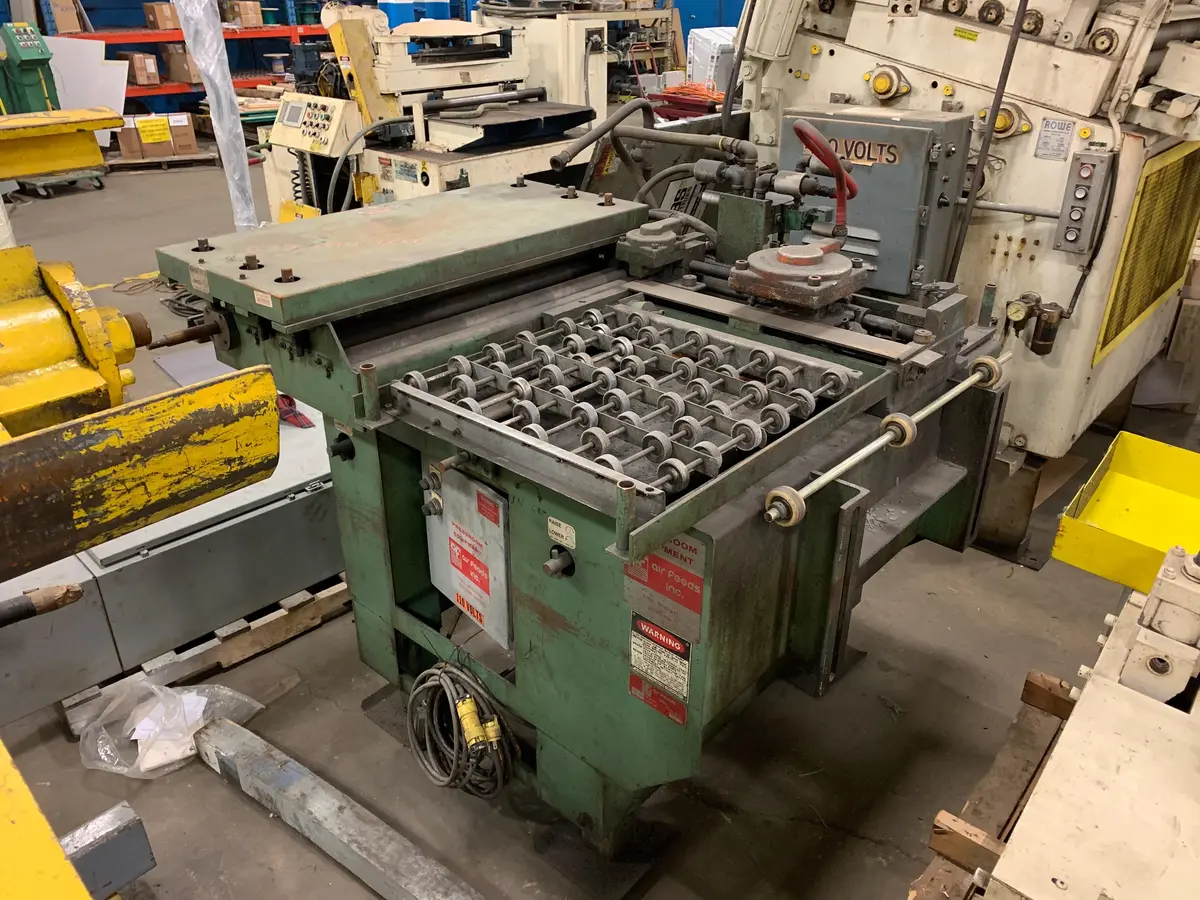

Air Feeds Inc. Air Feed Straightener Combination Press Feed 30" Wide
Air Feeds Inc. Air Feed Straightener Combination Press Feed Specifications:
Stock width capacity: 30"
Stock thickness capacity: .074" x 30" Wide
Stock thickness capacity: .170" x 12" Wide
Stroke (feed) length capacity: 12"

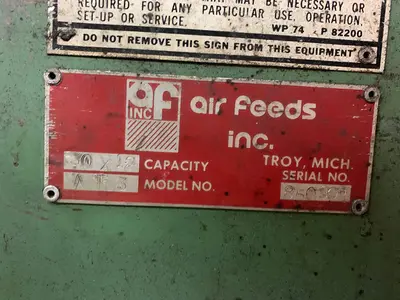

Serial #: 850902
Air Feeds Inc. Air Feed Straightener Combination Press Feed Equipment and Features:
Five air feed pull thru straightener rolls x 2-1/4 inch diameter
Individual upper air feed pull thru straightener roll adjustments
Manual air feed pinch roll assembly (Stock threading)
Manual upper air feed pinch roll adjustment
Adjustable stock width edge guides
Air saver cylinder (adjustable) air consumption and speed
Right angle handle for stroke length adjustments
Numatics brand pneumatic solenoid control valve
Dual quick exhausts
Pilot pin circuit
Horizontal and vertical cabinet base adjustments
Terms: 40% Deposit, net prepaid
