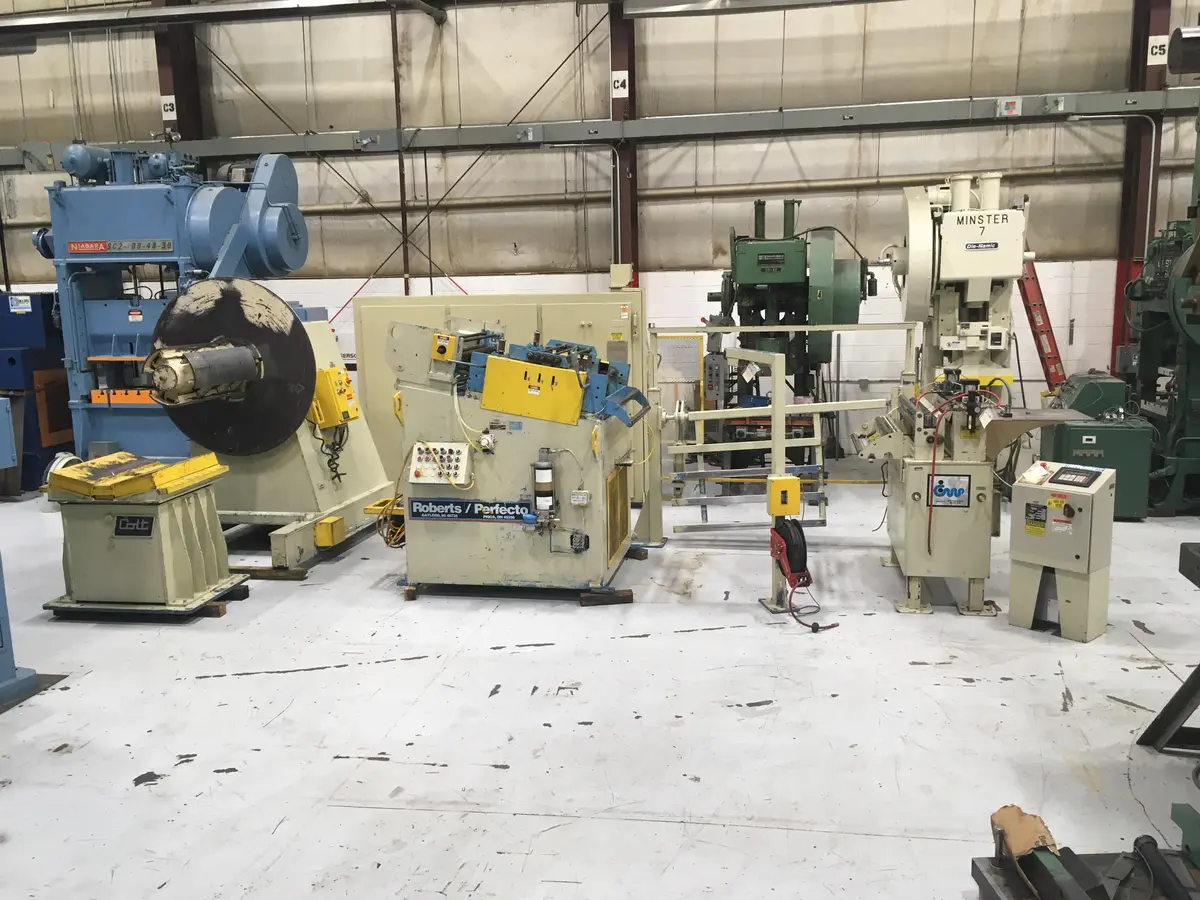

Used CWP CHDRCK-1500-30 / 28-36-7 / SMX-SE-36 | Coil Feed Lines

CWP / Colt Conventional Complete Coil Feed Line Specifications:
Coil weight capacity: 15,000 Lbs.
Coil width capacity: 30"
Stock thickness capacity: .090" x 30" Wide
Stock thickness capacity: .150" x 12" Wide
Expansion range: To Be Confirmed
Coil O.D. capacity: 60"

CWP / Colt Conventional Complete Coil Feed Line Equipment and Features:

Colt Coil Reel Uncoiler Model CHDRCK-1500-36
Three leaf mandrel coil reel
Hydraulic coil reel mandrel expansion
Traveling coil reel
Air brake mounted on main coil reel spindle
Adjustable coil reel drag brake tensioning
Stationary coil load car

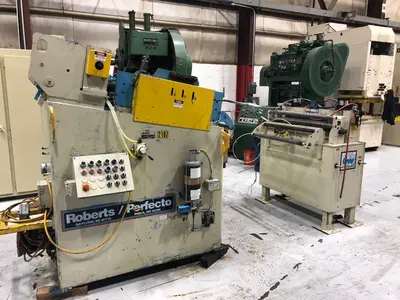

Perfecto Powered Coil Straightener Model No. 28-36-7
Entry and exit powered coil straightener pinch rolls with air operated adjustments
Seven coil straightening rolls x 2.8" diameter
Individual upper coil straightening roll adjustments
Inclined powered coil straightener head
Adjustable stock width edge guides
Cascade loop support rollers
Automatic lubrication system
Variable speed powered coil straightener payout
Operator's control station
Loop control
Exit stock threading table

CWP Servo Roll Feed Press Feed Model SMX-SE36
Air operated upper Servo feed roll lift / pilot
Adjustable stock width edge guides
Cascade loop support rollers
Cabinet base mounted
AC Servo roll feed controls

Warranty: Standard MDNA 30 day return privilege
Terms: 40% Deposit, net prepaid
