Minster Double End Conventional Complete Coil Feed Line Specifications:
Coil weight capacity: 6,000Lbs. (per side)
Coil width capacity: 20"
Stock thickness capacity: .110" x 20" Wide
Stock thickness capacity: .200" x 05" Wide
Expansion range: 16-20"
Coil O.D. capacity: 60"

Minster Double End Conventional Complete Coil Feed Line Equipment and Features:

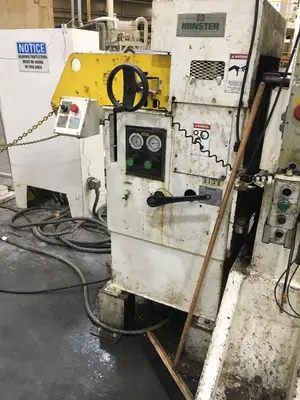

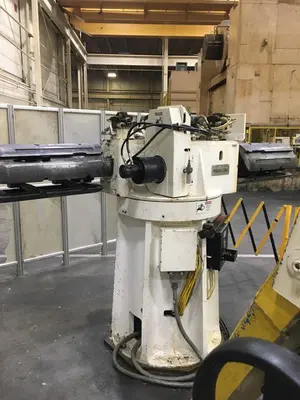

Minster Double End Coil Reel Uncoiler Model No.: MR6-20DThree leaf mandrel coil reel (per side)Hydraulic coil reel mandrel expansionThreading drives for jog forward and reversePowered mandrel rotation (Indexing)Drag brakes mounted on main coil reel spindlesAdjustable tensioningMinster Powered Coil Straightener Model No.: MSH-20-7Entry and exit powered coil straightener pinch rolls
Air operated entry powered coil straightener pinch roll adjustment
Manual exit powered coil straightener pinch roll adjustmentSeven coil straightening rolls Manual upper coil straightener roll adjustments
Digital read outs for upper coil straightening roll positioning
Coil hold down arm, peeler, de-bender station

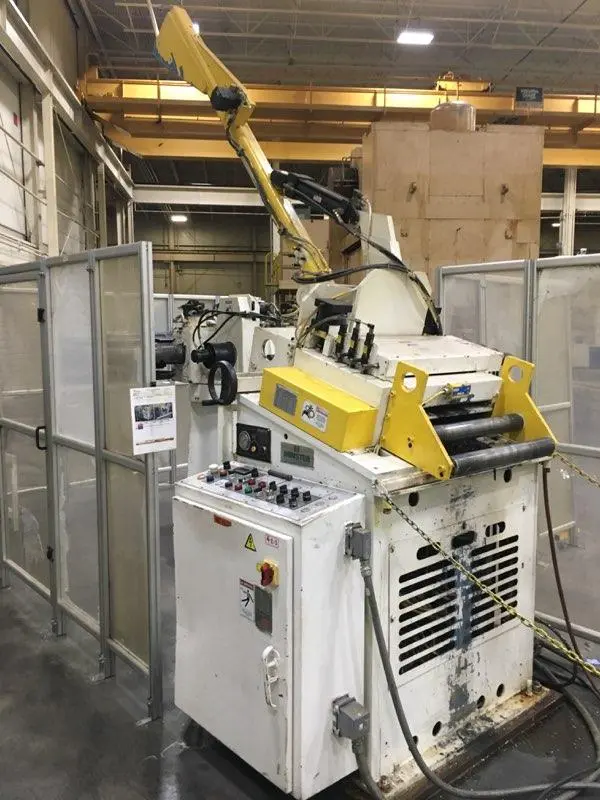

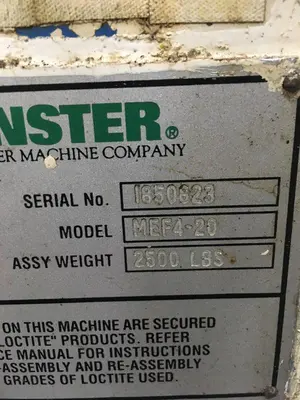

Motorized hold down arm end wheelStock peeler table with spade extensionStock end-debenderEntry stock width edge guides (Hand Crank)Variable speed powered coil straightener drive systemLubrication systemExit cascade loop support rollersLoop controlMinster Servo Roll Feed Press Feed Model No.: MEF-420Four inch diameter upper and lower servo feed rollsMatte chrome finish on servo feed rollsAir operated upper servo feed roll adjustments / pilot (Dual Cylinder)Solenoid controlled pilot releaseCentralized lubrication pointsCabinet base mounted servo roll feedAC servo roll feed drive and controlsFree standing sloped servo roll feed control consoleRemote pendant control for Jog forward and reverseFused disconnect
