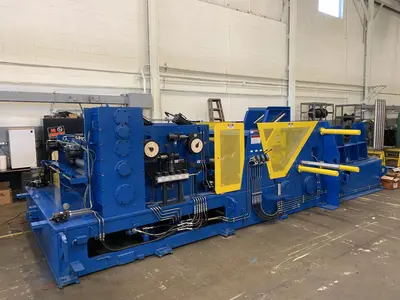

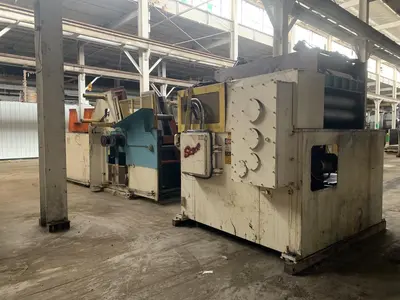

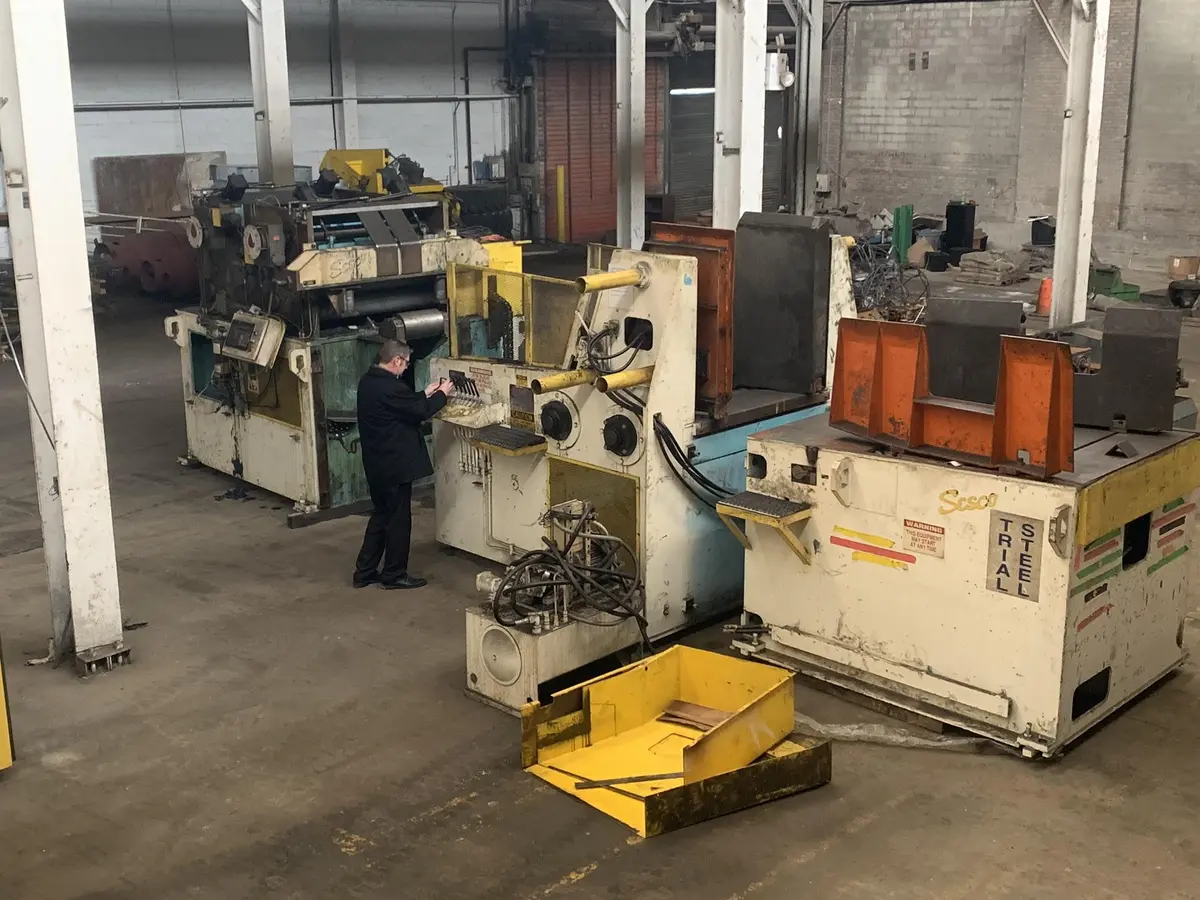

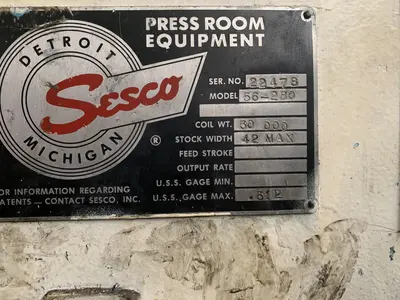

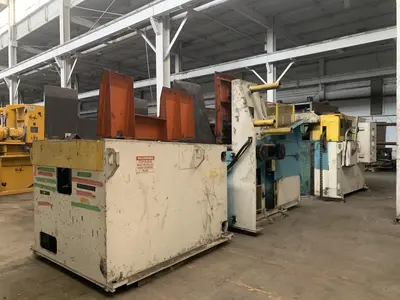

Used SESCO 56-280 | Coil Feed Lines

Sesco Coil Cradle Straightener Feeder Complete Coil Feed Line Specifications:
Coil weight capacity: 30,000 Lbs.
Coil width capacity: 40"
Stock thickness capacity: .300" x 40" Wide
Stock thickness capacity: .512" x 22" Wide
Coil O.D. capacity: 72"

Sesco Coil Cradle Straightener Feeder Complete Coil Feed Line Equipment and Features:
Entry powered coil straightener pinch rolls x 8" diameter
Seven coil straightening rolls x 5-5/8" diameter
Dial indicators for upper coil straightening roll position
Motorized upper coil straightening roll adjustment
Upper and lower servo feed rolls x 8" diameter
Air / Hydraulic operated upper servo feed roll release and pilot
Heavy duty stock width edge guides
Powered nest rolls in coil cradle
Coil cradle restrictor side plates
Wear protection coil cradle side plate rollers
Motorized coil cradle side plate adjustments
Combination Coil stop peeler threading assist and de-kinker assembly
Coil storage / load ramp
Self contained hydraulic pump unit

Needs controls  - Consult sales for details
