PERFECTO Double End Coil Reel And Straightener Combination 15,000 Lbs. x 36" Wide (New Servo Feed - Optional)
Coil weight capacity: 15,000 lb
Coil width capacity: 36"
Stock thickness capacity: .250" x 36"
Stock thickness capacity: .375" x 16"
Expansion range: 20" - 24"
Coil OD capacity: 72"

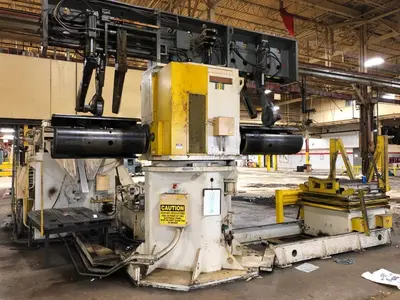

Perfecto Double End Pull Off Coil Reel Model No.: RD15436
Three leaf mandrels with hydraulic expansion
Threading drive for jog forward and reverse
Air brakes mounted on main spindle (adjustable tensioning)
Coil hold down arms with motorized end wheel
Powered coil guides (replaces manual coil keeper arms)
Powered turret rotation / indexing
Air shot pin for rotation lock
Self contained hydraulic pump unit

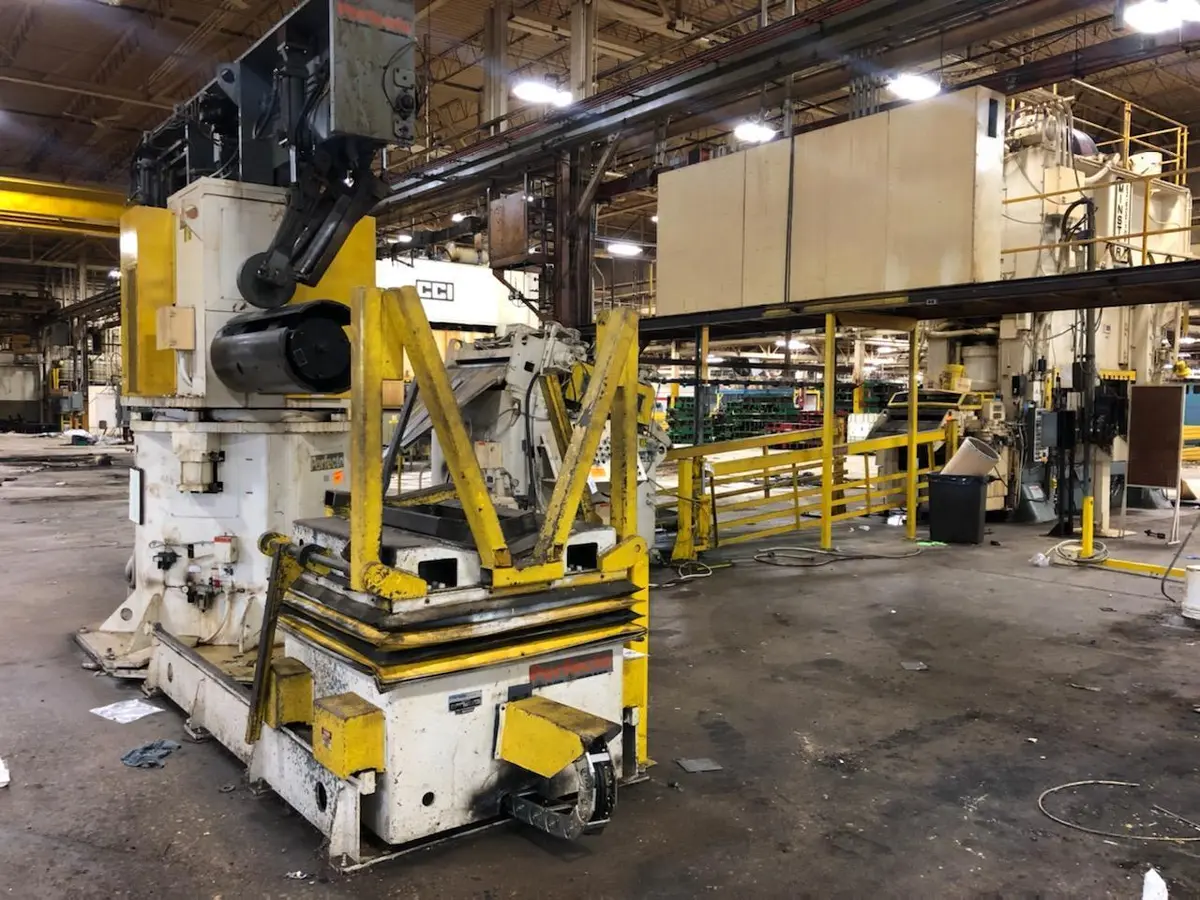

Perfecto Traveling Coil Load Car Model No.: LC-200
Powered lift and travel
Adjustable narrow coil supports

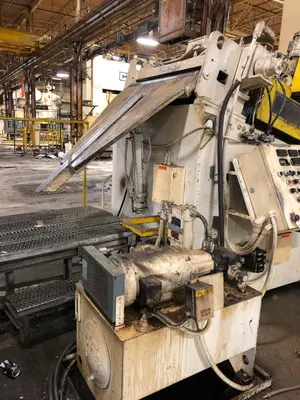

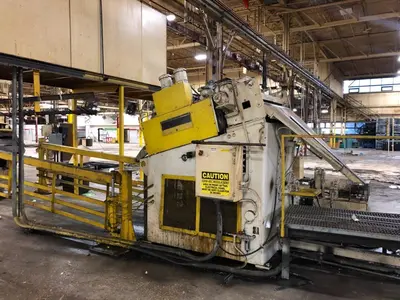

Perfecto Powered Coil Straightener Model No.: 38-36-7
Entry and exit pinch rolls with air operated adjustment
Seven straightening rolls x 3.8" diameter
Back up support rollers on straightening rolls
Motorized straightening roll adjustment
Motorized stock width edge guides
Stock peeler table with spade extension
Inclined head
Exit cascade loop support rollers
Variable speed drive
Operator's control station
Exit threading table for loop area
OPTIONAL

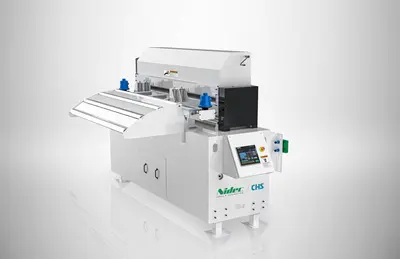

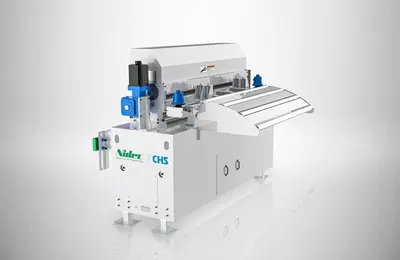

NEW NIDEC-CHS Servo Roll Feed MX-636
Six inch diameter feed rolls
Piloting upper feed roll (air operated)
Heavy duty hand crank adjustable edge guides
Cabinet base mounted (to be made custom to match press / die heights)
Adjustable pass line +/- 6" of adjustment
AC Servo drive and controls
Direct drive precision gearbox
Touch screen HMI
Complete press feed functionality and parameter settings - consult sales for full control feature details
Consult sales for pricing - approximately $ 100,000 USD (In addition to base price for the Perfecto)
