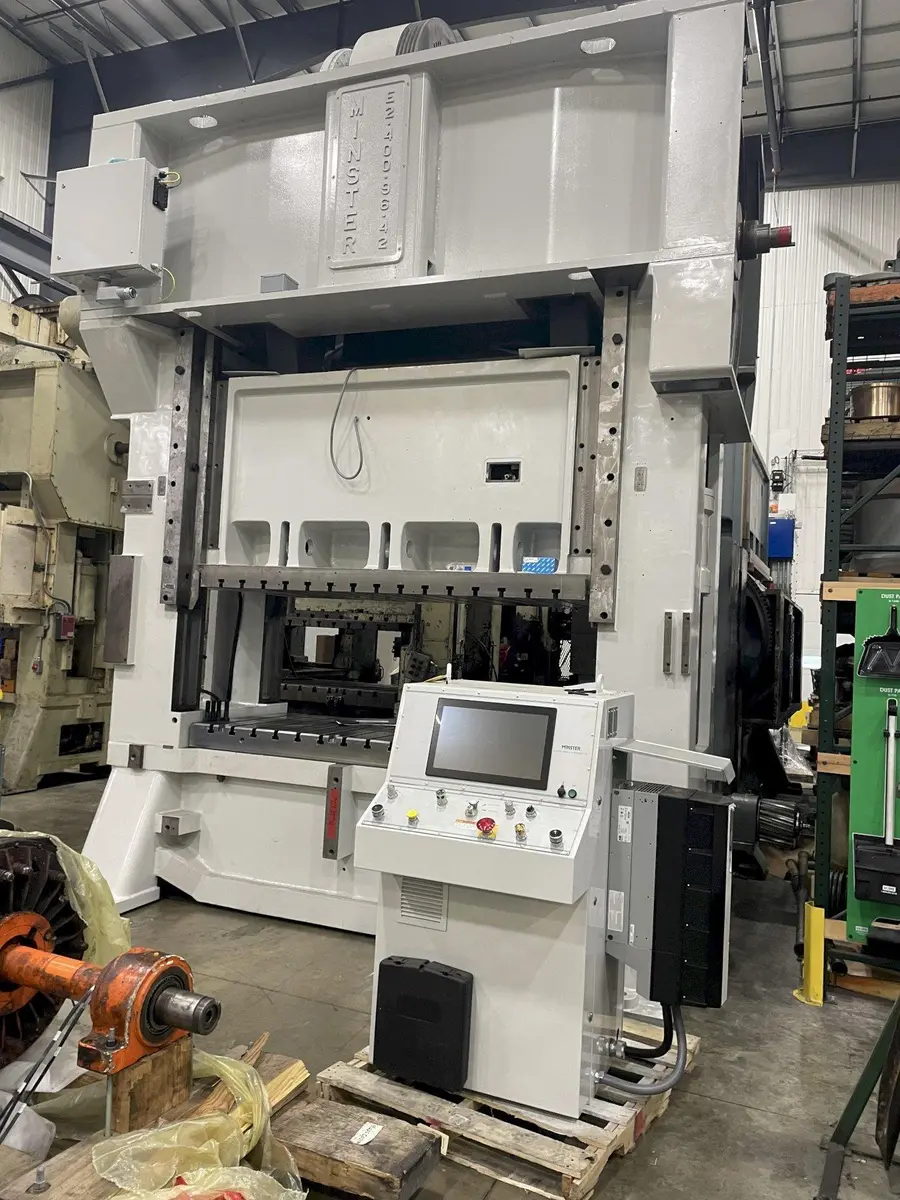

Used 1981 MINSTER E2-400-96 | Presses, Straight Side

Press Specifications:

·         400 U.S. Tons Capacity (3558 kN)
·         8.00 in. Stroke (203 mm)
·         6.00 in. Slide Adjustment (152 mm)
·         40.00 in. Shutheight, SDAU, on Bed (1016 mm)
·         6.00 in Bolster Plate Thickness (152 mm)
·         96.00 x 42.00 in. Slide Area (2438 mm x 1066 mm)
·         96.00 x 42.00 in. Bed Area (2438 mm x 1066 mm)
·         98.00 Distance between gibs (2489 mm)
·         90.00 x 15.00 Bed Opening (2286 mm x 381 mm)
·         26.00 in. Upright Opening (660 mm)
·         36.00 in. Floor to Top of Bed (914 mm)
·         35 - 70 SPM
·         New Drive Motor
·         TBD Incoming Voltage


Equipped With:

·         Single Geared
·         Minster Combination Air Clutch & Brake
·         Oil Troughs on front and rear of bed
·         Pneumatic Counterbalance System
·         Recirculating Lubrication System
·         New ABB Variable Frequency Drive
·         New Minster Production Management Control


Note:  All specifications contained herein are as the machine was originally manufactured and are subject to change at time of inspection.
