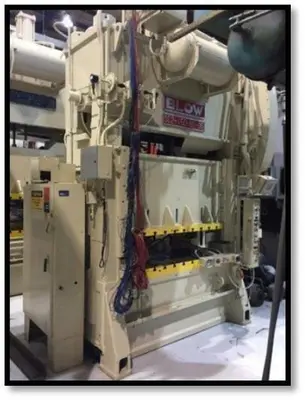

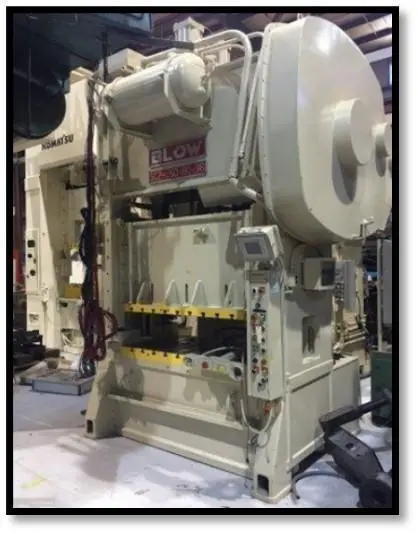

Used BLOW SC2-150-60-36 | Presses, Straight Side

Press Specifications:

·         150 U.S. Tons Capacity (1334 kN)
·         6.00 in. Stroke (152 mm)
·         4.00 in. Shut Height Adjustment (102 mm)
·         18.00 in. Shut Height (457 mm)
·         60.00 x 36.00 in. Ram Area (1524mm x 914 mm)
·         60.00 x 36.00 in. Bolster Area (1524mm x 914 mm)
·         21.00 in. Side Window Opening (533 mm)
·         30 - 60 SPM Speed Range

Equipped With:

·         Air clutch & brake
·         Air Counterbalances
·         Recirculating Lube System
·         T-Slotted Ram Plate and Bolster
·         8 point gibbing
·         Electrical Control Cabinet

Equipped With (cont’d):

·         Motors and Controls
·         Palm Buttons
·         Simatic Panel Siemens
·         Baumer Electric Rotating Cam Limit Switch
·         Dual Ross Air Valve
·         Motorized Ram Adjustment
·         Main Motor Fwd./ Reverse

Imco Tonnage Monitor

Note:  All specifications contained herein are as the machine was originally manufactured and are subject to change at time of inspection.
