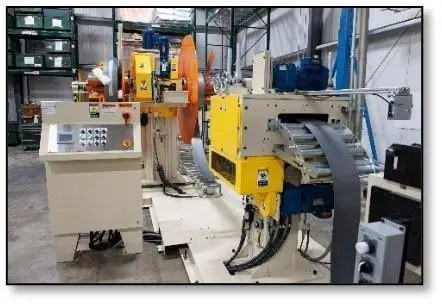

Used 2018 MACHINE CONCEPTS GENERATION L2 14” PRECISION STRAIGHTENER DM10-14” DOUBLE ARM DECOILER | Coil Reels and Straighteners

Generation L2 14” Precision Straightener
·         16.00 in. wide Roll Face (406 mm)*
·         0.007 – 0.035 in. thickness range (0.18 - 0.89 mm)*
·         55,000 psi yield strength*
·         0.875 in. diameter work rolls (22 mm)
·         50.00 – 54.38 in. pass line height (1270 - 1381 mm)
·         5 hp cassette drive (610 mm)
·         2400 ipm speed (61 m/mn)
·         Two (2) Backup Rail Sets
·         Fifteen (15) total number of straightening rolls
·         Quick change roll cassette
·         Two point drive connection
·         Allen-Bradley Control System
·         Constant Torque Variable Frequency Drive and motor
·         Exit side pull roll
·         Powered pinch roll
·         Self-centering edge guide
·         End of strip sensor
·         Integration of Reel Controls
·         Common mounting base
·         Non-contacting loop control

DM10-14” Double Arm decoiler
·         10,000 pound max. capacity per side (4536 kg)
·         18.00 to 22.00 in. expansion range (457 – 559 mm)
·         72.00 in. maximum coil od (1829 mm)
·         14.00 in. maximum coil width @ 60.00 in. coil od
(357 x 1524 mm)
·         0.093 in. maxi material width @ full width (2.36 mm)
·         Hydraulic actuation of:
o    Expansion
o    Turret rotation
o    Coil side shift
·         Adjustable lower base
·         Pneumatic drag brake
·         Allen-Bradley controls
·         Electric powered payoff
·         Eddy Current Drive
