Used 2016 MATSUMOTO MATSUMOTO MLM-150P | Coil Reels and Straighteners

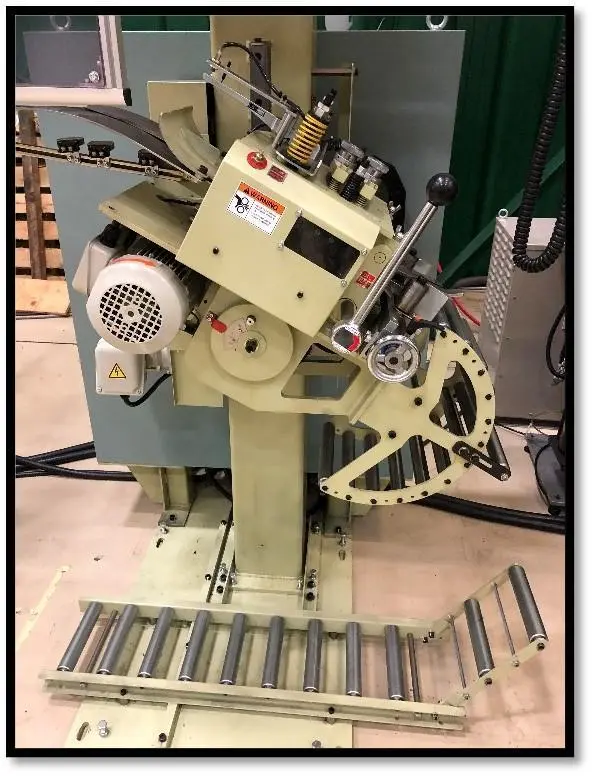

Straightener Specifications:

·         150 mm Maximum coil width (6.0 in.)
·         0.2 – 0.5 mm Coil thickness range (0.008 – 0.020 in.)
·         Ø50 mm Pinch Roll x 2 (1.97 in.)
·         Ø50 mm Work Roll x 6 (1.97 in.)
·         7 – 60 m/min Speed range (23 – 197 fpm)
·         480 VAC, 60 hz, 3 ph Incoming
·         Manual pinch roll open/close
·         Photo electric loop control
·         Left to right feed direction

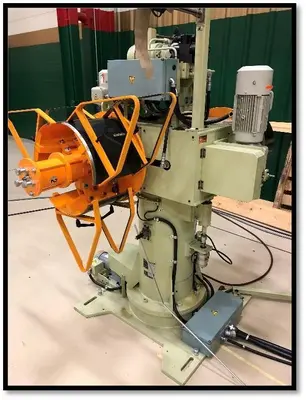

Dual Reel Specifications:

·         150 mm Maximum coil width (6.0 in.)
·         Ø1200 mm Coil OD (47.20 in.)
·         Ø470 - 520 mm Coil ID (18.50 – 20.50 in.)
·         1000 kg Coil weight per side (2205 lbs.)
·         Hydraulic expansion and turret rotation
·         Motorized coil rotation
·         Photo electric loop control
·         Left to right feed direction
