Used FEED LEASE FLCC-2017-7260-P20 | Coil Cradles & Straighteners

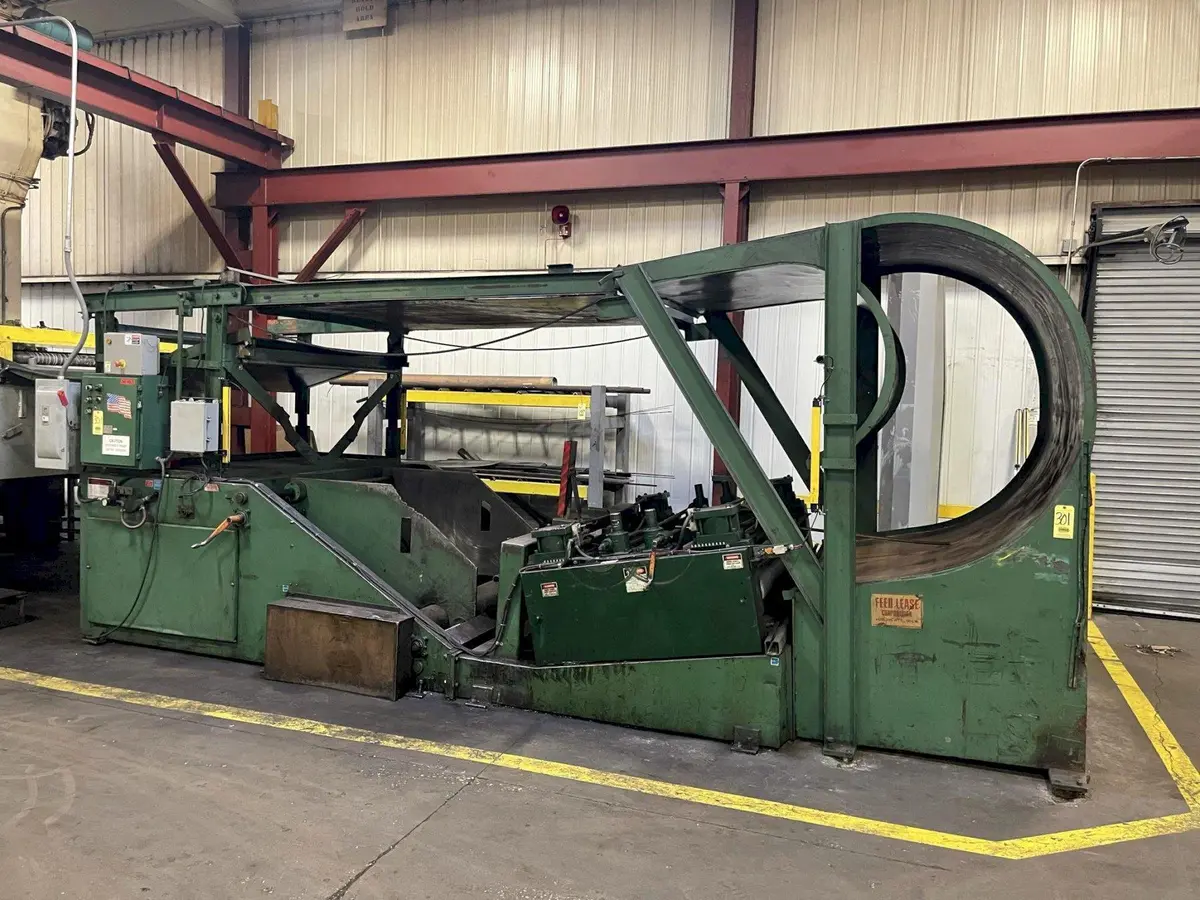

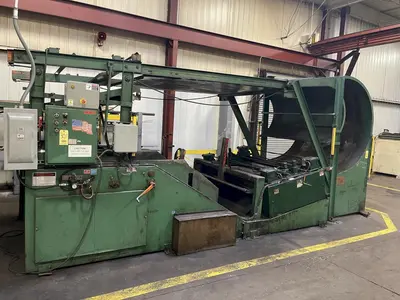

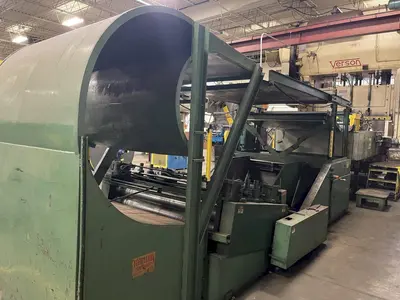

Feed Lease Coil Cradle Straightener Combination Uncoiler Specifications:

Coil weight capacity: 20,000 Lbs.
Coil width capacity: 72"
Stock thickness capacity: .156" x 72" Wide
Stock thickness capacity: .250" x 48" Wide
Coil OD capacity: 60"

Feed Lease Coil Cradle Straightener Combination Uncoiler Equipment and Features:
Coil cradle straightener entry and exit pinch rolls x 6.5" Diameter
Air operated adjustable coil cradle straightener entry and exit pinch rolls

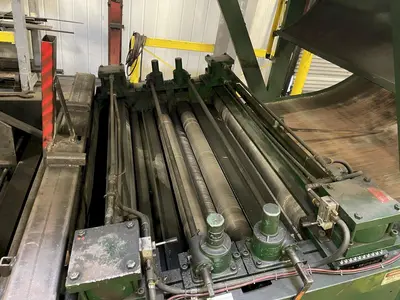

Five coil cradle straightener straightening rolls x 5" diameter
Hand crank upper coil cradle straightening roll adjustments via screw jacks
Inline (Floor Mounted) coil cradle straightener powered straightener
Stock peeler assembly
Dual adjustable coil cradle straightener side plates
Reverse loop stock deflector

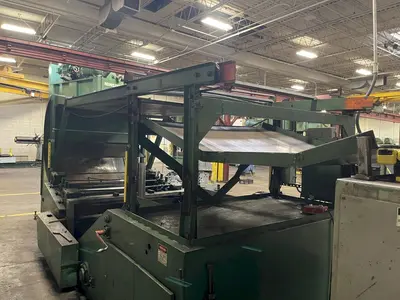

Over head guide chute (Motorized)
Chute extension
Variable speed drive system
Common operator's control console
Jog forward and reverse
Auto / Run cycle
Loop control
