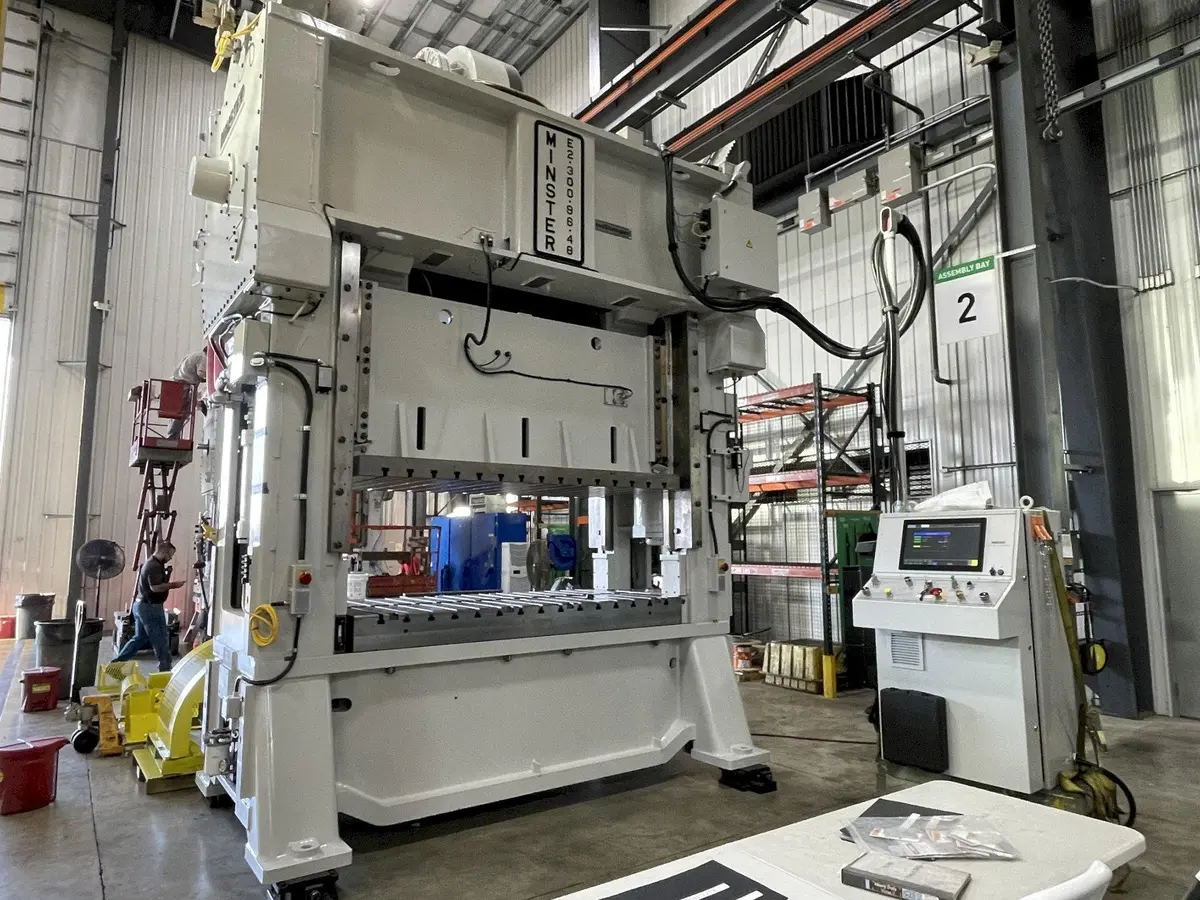

Used 1987 MINSTER E2-300-96 | Presses, Straight Side

Press Specifications:

·         300 U.S. Tons Capacity (2669 kN)
·         12.00 in. Stroke (305 mm)
·         6.00 in. Slide Adjustment (152 mm)
·         30.00 in. Shutheight, SDAU, on Bed (762 mm)
·         96.00 x 48.00 in. Slide Area (2438 mm x 1219 mm)
·         96.00 x 48.00 in. Bed Area (2438 mm x 1219 mm)
·         98.00 in. Between Gibs (2489 mm)
·         27.00 in. Upright Opening (686 mm)
·         36.00 in. Floor to Top of Bed (914 mm)
·         0 - 80 SPM
·         50 HP – 1500 RPM Drive Motor
·         112,500 lbs. Approx. Weight, Press Only (51710 kg)


Equipped With:

·         Single Geared
·         Minster Combination Air Clutch & Brake
·         Air Operated Flywheel Brake, electrically interlocked
·         Four piece tie rod construction frame
o    Welded crown, bed, slide
o    High tensile cast iron uprights
·         Pneumatic Counterbalance
·         Minster “Monitorflow” Recirculating Lube System
·         Long Barrel Motorized Shutheight Adjustment
·         Minster PMC Press Control
·         Vibro/Dynamics isolation mounts
·         Minster PMC Control


NOTE:  Press Feed Lines (Used and New) Available - consult sales for more information
