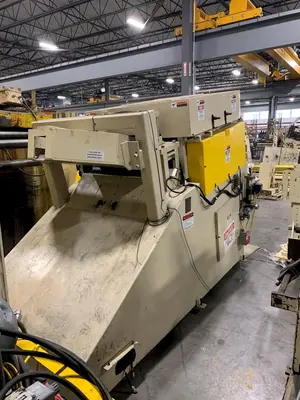

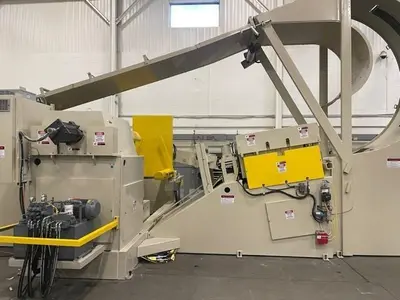

Feed Lease Coil Reel Uncoiler and Powered Coil Straightener 20,000 Lbs.
Feed Lease Coil Reel Uncoiler and Powered Coil Straightener Combination Specifications: Coil weight capacity: 20,000 Lbs. Coil width capacity: 36" Stock thickness capacity: .210" x 36" Wide
Stock thickness capacity: .250" x 30" Wide Stock thickness capacity: .375" x 12" Wide Expansion range: 20" - 24" (To Be Confirmed) Coil O.D. capacity: 72"Feed Lease Coil Reel Uncoiler and Powered Coil Straightener Combination Equipment and Features:
Feed Lease Coil Reel Uncoiler Model No.: R200M-36 Three leaf coil reel mandrel with full set of coil keeper arms Hydraulic coil reel mandrel expansion Powered threading drive for jog forward and reverse Air brake mounted on main coil reel spindle Adjustable tensioning Self contained hydraulic unit

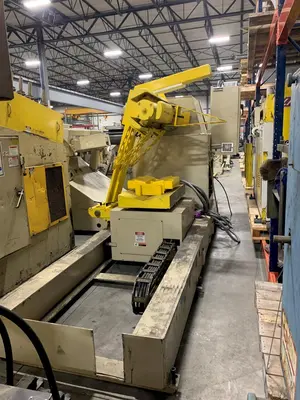

Coil holding arm with end wheel Traveling Coil Load Car Powered lift and travel Narrow coil supportsFeed Lease Powered Straightener Model No.: FLPS-5-36-5

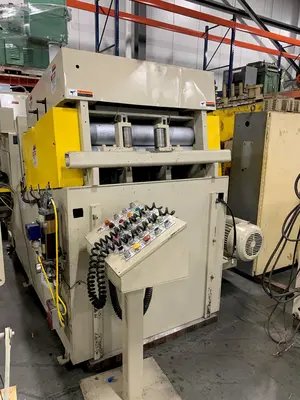

Powered entry and exit powered coil straightener pinch rolls x 6.25" diameter Air operated upper powered coil straightener pinch roll actuationStraightening rolls x 5.00 inch diameterBack ups on upper and lower straightening rolls Stock peeler assembly for coil threading

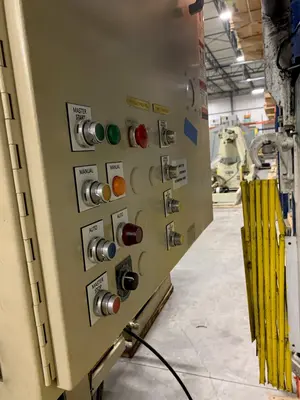

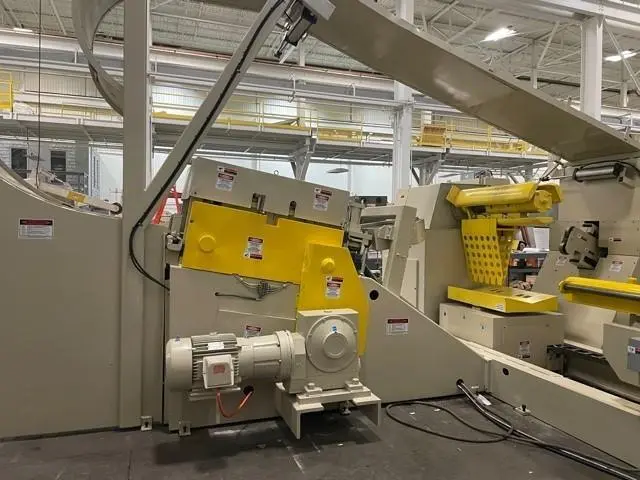

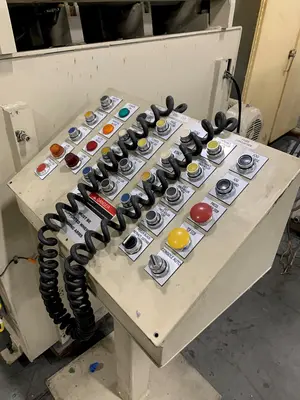

Coil End-Debender Hand crank adjustable stock width edge guides Automatic lubrication systemAC variable speed powered coil straightener drive Common operator's controls station
Jog forward and reverseLoop control
Reconditioned, painted and 100% cycling
Warranty: Ninety days parts and labor Terms: 40% Deposit, net prepaid
