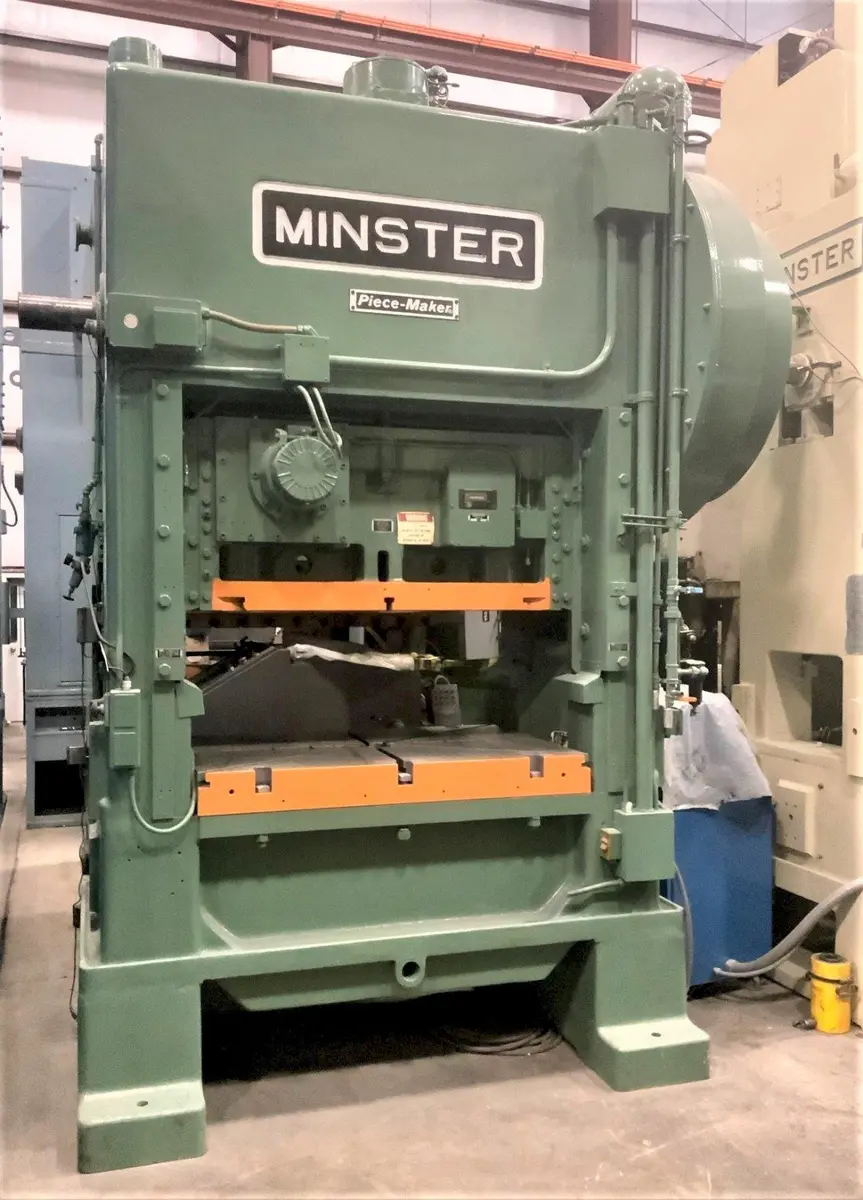

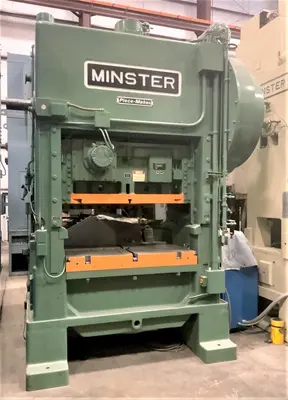

Used 1981 MINSTER P2-150-60 | Presses, Straight Side

SPECIFICATIONS
Press Specifications
Model Number........................................................ P2-150-1525 x 585-G (P2-150-60×40-G)
Force × Distance off Bottom..................................   1350kN (150 ton × 0.063 in)
Lube Unit Location.................................................   Opposite Feed Side
Approximate Press Weight.....................................   25.650 kg (66,500 lb.)
Shutheight Indicator Readout.................................   Inch
Shop Air Pressure, Minimum..................................   6 bar (85 psi)

Press Slide Specifications
Stroke Length, Speed Range...................................   152mm (6.00 in) 45 - 90  spm
Area of Slide, R-L × F-B........................................   1525 mm x 585mm (60.0 × 23.0 in)

Press Slide Specifications
Area of Slide Sub-Plate, R-L × F-B........................   1525mm x 1015mm (60.0 × 40.0 in)
Slide Machining......................................................   T Slots

Press Bolster Specifications
Bolster Plate Thickness...........................................   152mm (6.00 in)
Area of Bolster, R-L × F-B.....................................   1525mm x 1015mm (60.0 × 40.0 in)
Bolster Plate Machining..........................................   Per Customer Specifications



Press Frame Specifications
Upright Passline Opening, F-B...............................   504mm (20.0 in)
Area of Bed, R-L × F-B..........................................   1525mm x 1015mm (60.0 × 40.0 in)
Opening in Bed, R-L × F-B....................................   1270mm x 483mm (50.0 × 19.0 in)
Bed Deflection at 67% of Die Area........................   0.0010 in/ft
Shutheight, Maximum (SDAU) on Bed.................   584mm (23.0 in)
Shutheight, Maximum (SDAU) on Bolster............. 432mm (17.0 in)
Shutheight Adjustment...........................................   102mm (4.00 in)
Approx. Clearance, Foot to Bottom of Bed............   355mm (14.0 in)
Approx. Distance Foot to Top of Bolster................   1220mm (48.0 in)
Approx. Distance Foot to Top of Bed....................   1067mm (42.0 in)
Approx. Floor Area, R-L × F-B..............................   3202 mm x 2310mm (85.5 × 76.0 in)
Approx. Overall Height, from Foot........................   4128mm (162.5 in)

Press Control Specifications
Drive Motor Power, Speed.....................................   19kW (25 hp) 1500 - 1800 rpm, 480/3/60
Incoming Power Drop.............................................   Control Pedestal
Control Pedestal Location.......................................   Left Hand Side
Control Station Location.........................................   Pedestal Mounted
Run Station Location..............................................   Pedestal Mounted
Setup Station Location............................................   Left Hand Upright
Shutheight Adjust PB Location..............................   Console
Limit Switch Type...................................................   Programmable
Control Operation Mode.........................................   Inch-Auto One Cycle-Continuous
Control Language....................................................   English
Press Mounted Stop Control PB.............................   (1) Front and (1) Rear
Press Mounted Top Stop PB...................................   None
