Used DALLAS DDCR-6000-18 / DPS-3-9-18 / DRF-418 | Coil Feed Lines

DALLAS Double End Conventional Complete Coil Feed Line Specifications:
Coil weight capacity: 6,000Lbs. (per side)
Coil width capacity: 18"
Stock thickness capacity: .125" x 18" Wide
Stock thickness capacity: .250" x 06" Wide
Expansion range: 16"-21"
Coil O.D. capacity: 72"

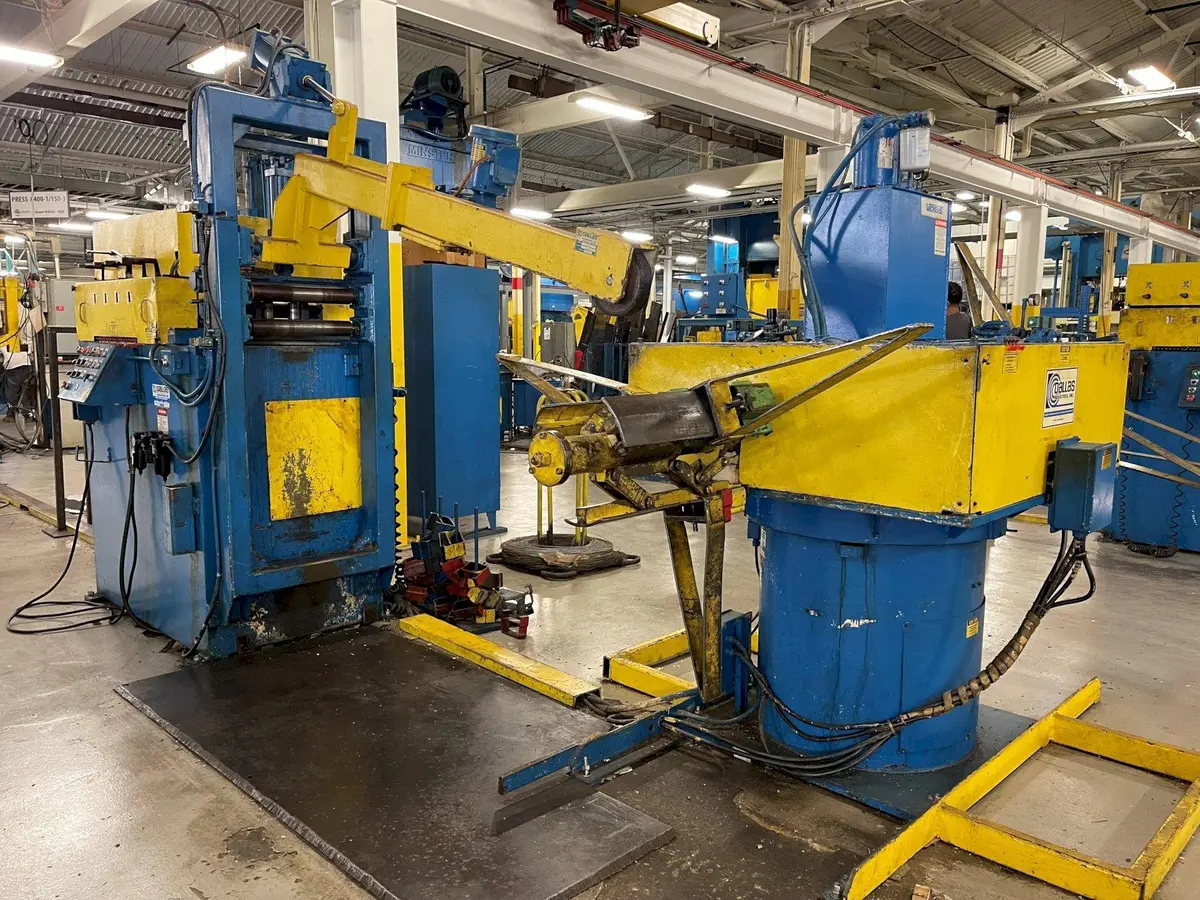

DALLAS Double End Conventional Complete Coil Feed Line Equipment and Features:

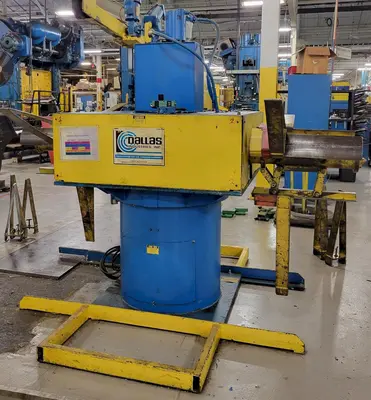

DALLAS Double End Coil Reel Uncoiler Model No.: DDCR-6000-18, Serial No.: 20844Three leaf mandrel coil reel (per side)Adjustable coil keeper arms
Hydraulic mandrel expansion
Arbor rotation locking pin (foot pedal release)

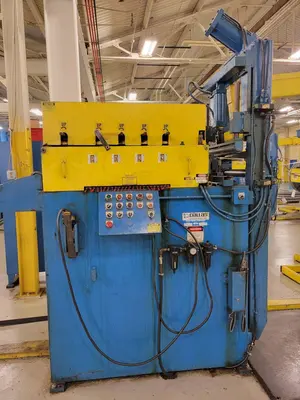

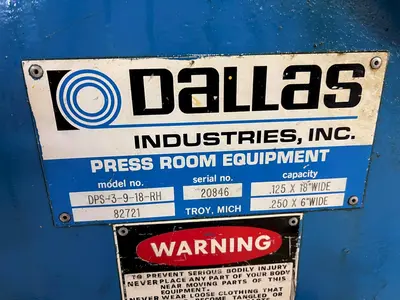

Pneumatic drag brakes mounted on main spindle Adjustable tensioningDALLAS Powered Coil Straightener Model No.: DPS-3-9-18, Serial No.: 20847Entry and exit powered coil straightener pinch rolls
Air operated entry powered coil straightener pinch roll adjustment
Manual exit powered coil straightener pinch roll adjustmentNine coil straightening rolls Individual upper straightening roll adjustments Entry stock width edge guides
Air operated coil hold down arm with motorized end wheel
Air operated coil breaker / de-bender
Centralized lubrication points
Exit cascade loop support rollers
Remote pendant control for jog forward and reverseVariable speed powered coil straightener drive systemAuto / Run cycleLoop controlDALLAS Servo Roll Feed Press Feed Model No.: DRF-418Four inch diameter upper and lower servo feed rollsMatte chrome finish on servo feed rollsAir operated upper servo feed roll adjustments / pilot Solenoid controlled pilot releaseCentralized lubrication pointsCabinet base mounted servo roll feedAC servo roll feed drive and controlsFree standing sloped servo roll feed control consoleRemote pendant control for Jog forward and reverseFused disconnect
