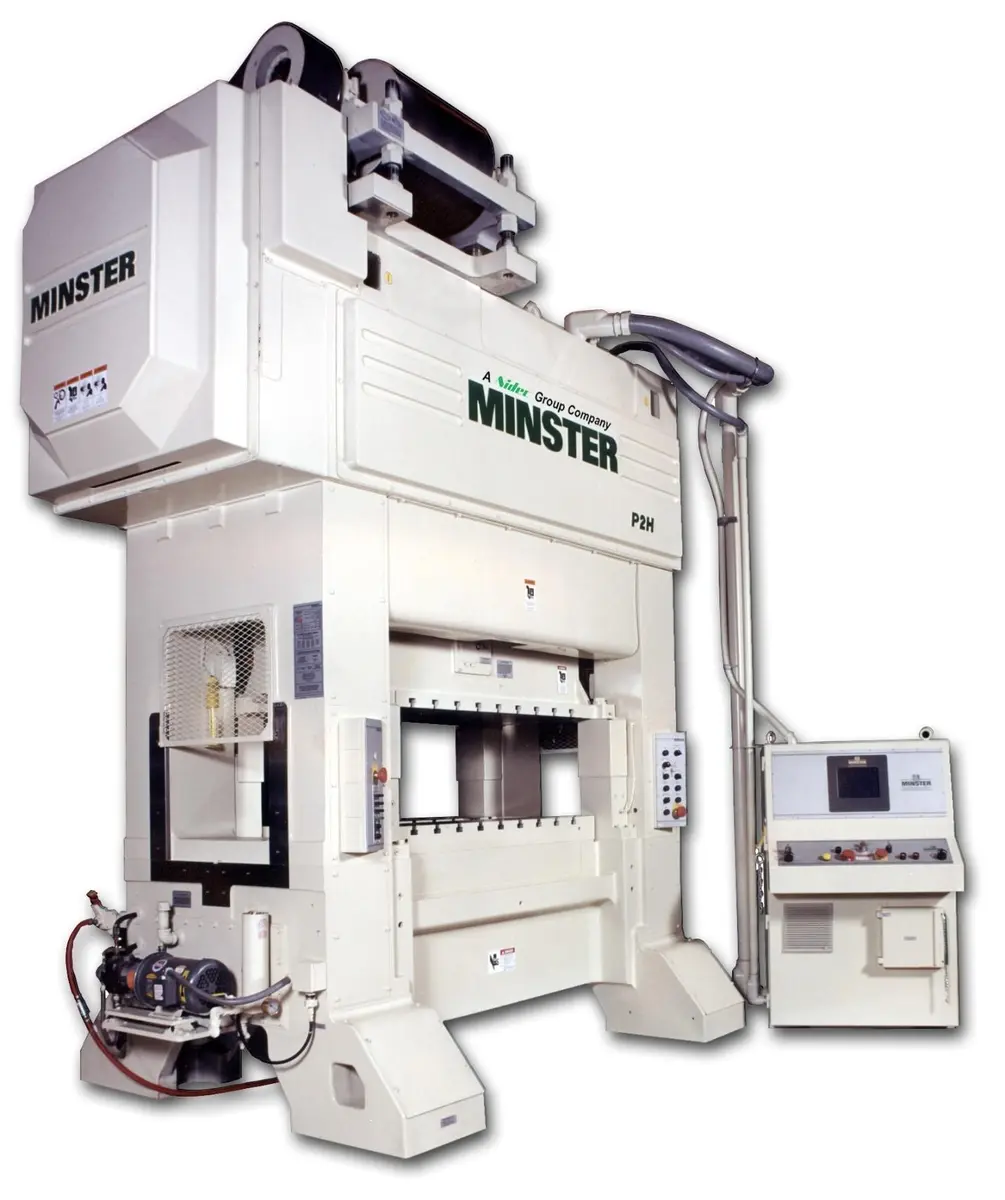

Used 1993 MINSTER P2H-100-48 | Presses, Straight Side

Press Specifications:

·         112 U.S. Tons Capacity (1000 kN)
·         1.96 / 3.94in. Stroke (50 mm / 100 mm) Dual Stroke
·         3.94 in. Shutheight Adjustment (100 mm)
·         0.50 – 4.50 in. Quick Access Slide Travel (12 – 115 mm)
·         11.00 – 14.98 in. Shutheight, SDAU, on Bolster (280 – 380  mm)
·         3.94 in. thick Cast Iron Bolster Plate (100 mm)
·         48.00 x 26.00 in. Slide Area (1220 x 660 mm)
·         48.00 x 31.50 in. Bed Area (1220 x 800 mm)
·         40.00 x 14.20 in. Bed Opening (1015 x 360 mm)
·         40.80 in. Floor to top of Bed (1035 mm)
·         15.1 in. Upright Opening (384 mm)
·         0 - 400 SPM 1.94 in. stroke, 0-250 SPM 3.94 in. stroke
·         25 HP, 1500/1800 RPM Drive Motor (19 kW)
·         41,000 Approximate Weight (18,600 kg)

Equipped With:

·         Flywheel Type
·         Left hand drive, extension on opposite end
·         High tensile cast iron frame w/ lube troughs cast in
·         Minster Hydraulic Clutch & Brake
·         Air Operated Flywheel Brake
·         Counterweights on Crankshaft
·         Quick Lift Slide
·         Hydraulic Motorized Slide Adjustment
·         Hydraulic Slide Lockup
·         Pressurized Monitored Recirculating Lube System
·         New Minster Management Control
