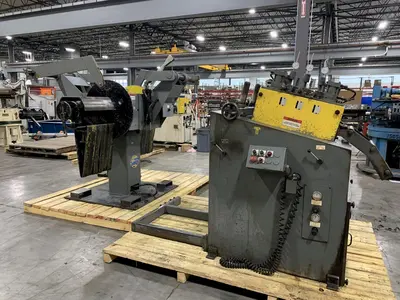

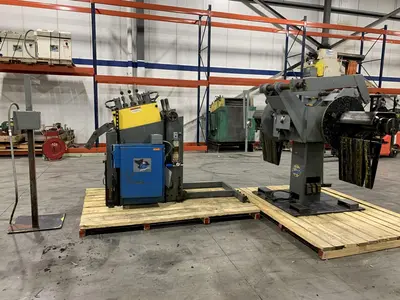

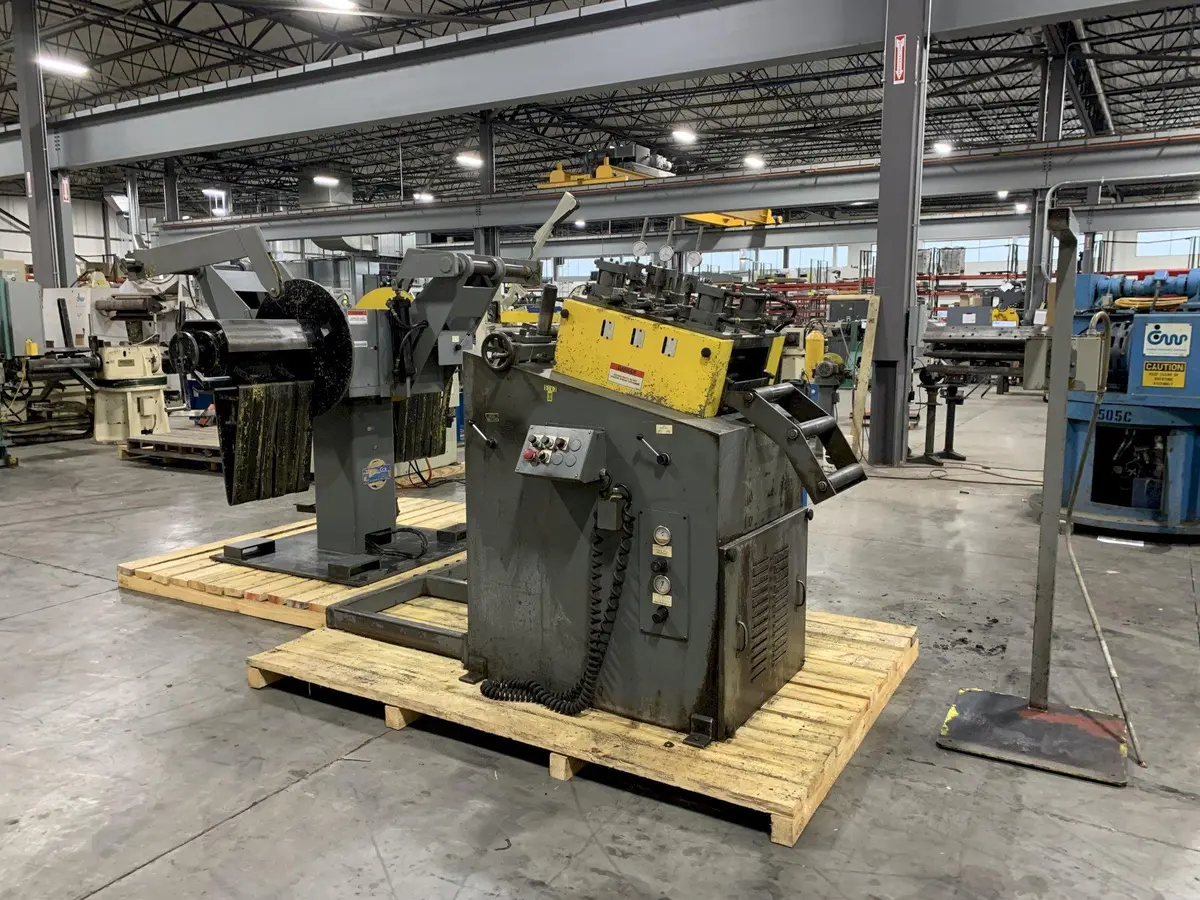

Used COE CPR-PO-2512 / CPPS--PO-300-12 | Coil Reels and Straighteners

Coe Press Double End Coil Reel and Powered Straightener Combination Specifications:
Coil weight capacity: 2,500 Lb (Per Side)
Stock width capacity: 12"
Stock thickness capacity: .156" x 12" Wide
Expansion range: 16" - 20" (To be confirmed)
Coil O.D. capacity: 60"

Coe Press Double End Coil Reel and Powered Straightener Combination Equipment and Features:

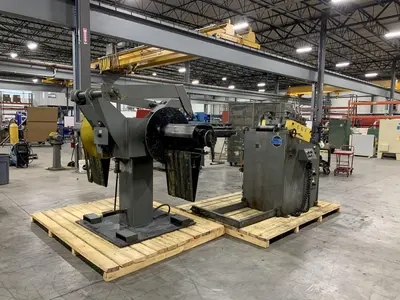

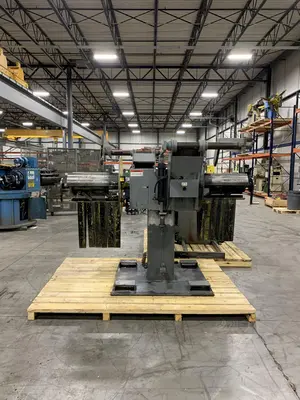

Coe Press Double End Pull Off Coil Reel Model No.: CPR-PO-2512, Serial No.: 13899-1
Three leaf mandrels
Full Set Of Coil Keeper Arms
Manual mandrel expansions
Air brakes (adjustable pull off tensioning)
Manual rotation for mandrel indexing
Manual foot pedal release for turret locking pin
Dual coil hold down arms (air operated via hand valve)

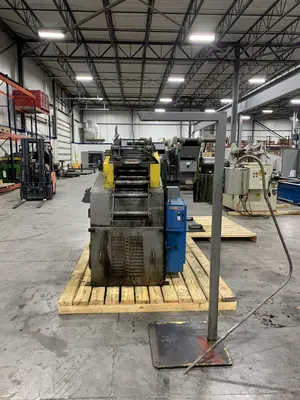

Coe Press Powered Coil Straightener Model No.: CPPS-PO-300-12, Serial No.: 13865-1
Seven straightening rolls x 3.00" diameter
Dial depth indicators for upper straightening roll position
Manual upper straightening roll adjustments
Entry and exit pinch rolls with air operated actuation
Inclined head
Adjustable entry stock width edge guide
Exit cascade loop support rollers
Automatic lubrication system

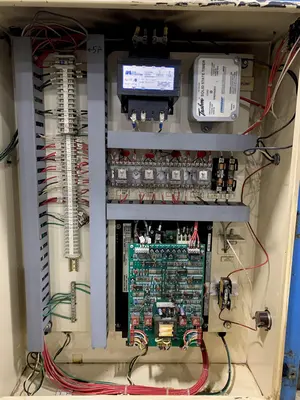

Variable frequency drive and control system
Jog forward and reverse
Auto / run cycle
Variable speed loop
