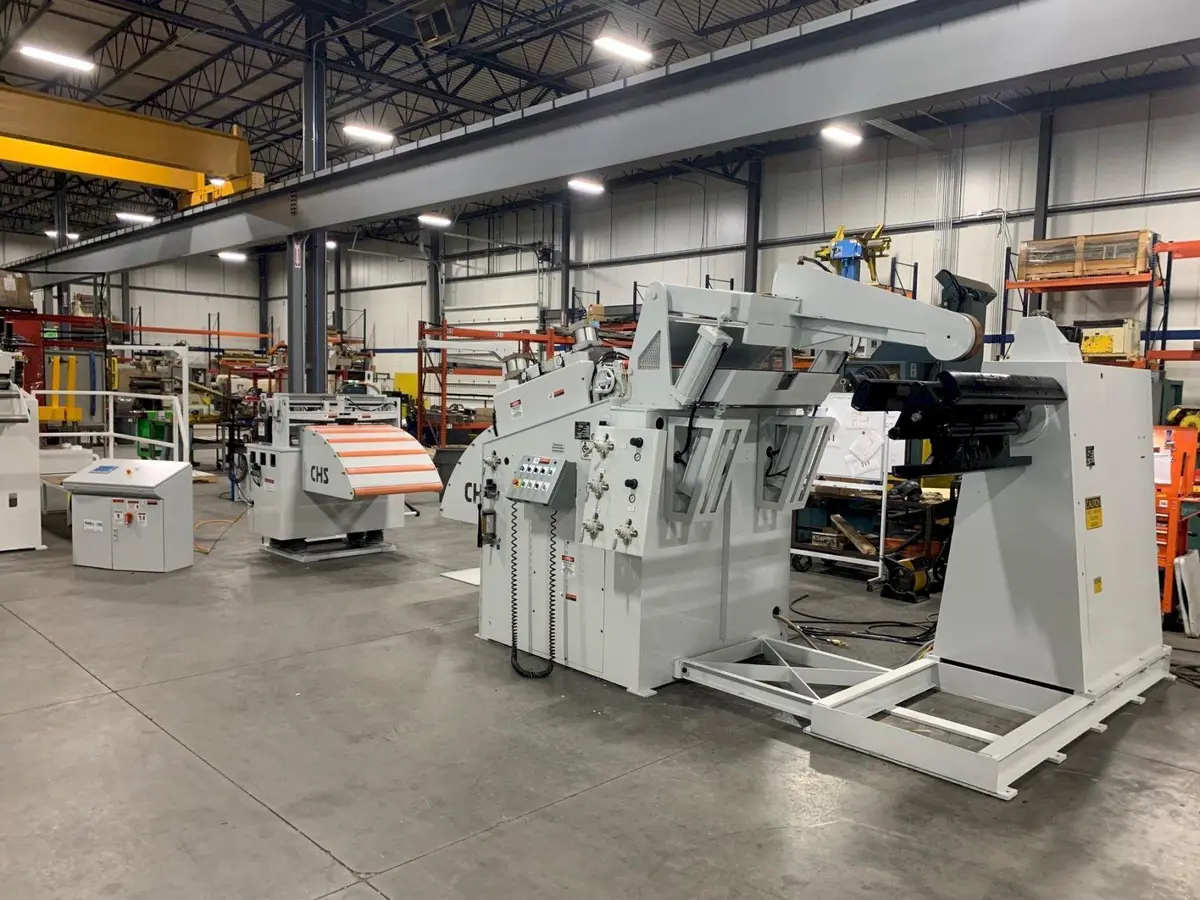

Used CWP 5R-42 / 42D11 | Coil Feed Lines

CWP Coil Reel and Powered Straightener Combination Specifications:Coil weight capacity: 10,000 Lbs.Coil width capacity: 36"Stock thickness capacity: .090" x 36" WideStock thickness capacity: .125" x 24" WideExpansion range: 17.5" - 22.5"Coil O.D. capacity: 72"CWP Coil Reel and Powered Straightener Combination Equipment and Features:CWP Coil Reel Uncoiler Model No.: 5R-42, Serial No.: 053696-SRThree leaf mandrel coil reelHydraulic coil reel mandrel expansion Adjustable coil reel keeper arms Air drag brake mounted on main coil reel spindle Adjustable brake - pull of tension Threading drive Jog forward and reverseSelf contained hydraulic pump unit CWP Powered Coil Straightener Model No.: 42D11, Serial No.: 053696-STREntry and exit powered coil straightener pinch rolls x 4.20" diameterAir operated entry upper powered coil straightener pinch roll adjustmentAir operated exit upper powered coil straightener pinch roll adjustmentEleven coil straightening rolls x 2.80" diameterManual individual upper coil straightening roll adjustmentsCoil hold down arm, peeler de-bender stationMotorized coil hold down arm end wheelStock peeler table with extension Stock end debender Heavy duty hand crank edge guidesNEW AC VFD Control System
Exit cascade loop support rollers
Variable speed powered coil straightener drive system New Laser Loop control

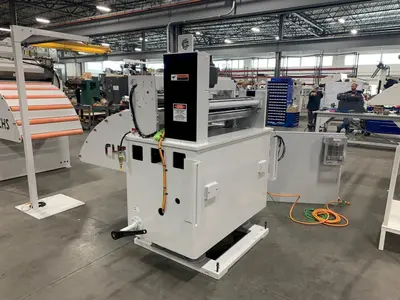

New Exit Threading Table Model ETT-36
Bomb bay door design

Perfecto Servo Roll Feed 36" Wide
Four inch upper and lower feed rolls

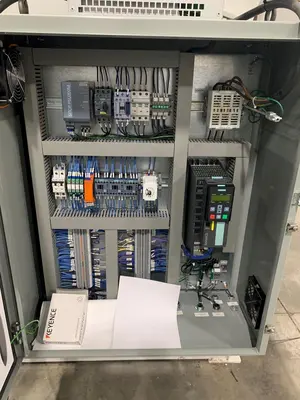

Piloting upper rollCabinet base mounted All new AC Servo drive and controls
IN STOCK READY TO SHIP
Reconditioned, painted and 100% cyclingWarranty: Ninety days parts and laborTerms: 40% Deposit, net prepaid
