Used MINSTER MR6-14D / MS20-14-7 / MEF4-14 | Coil Feed Lines

MINSTER Double End Complete Coil Feed Line Specifications:
Coil weight capacity: 6,000 Lbs.
Coil width capacity: 14"
Stock thickness capacity: .120" x 14" Wide
Stock thickness capacity: .187" x 04" Wide
Expansion range: 16" - 20"
Coil O.D. capacity: 60"

Minster Double End Complete Coil Feed Line Equipment and Features:

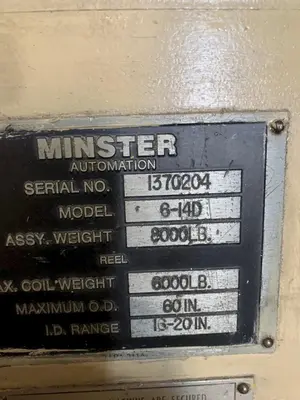

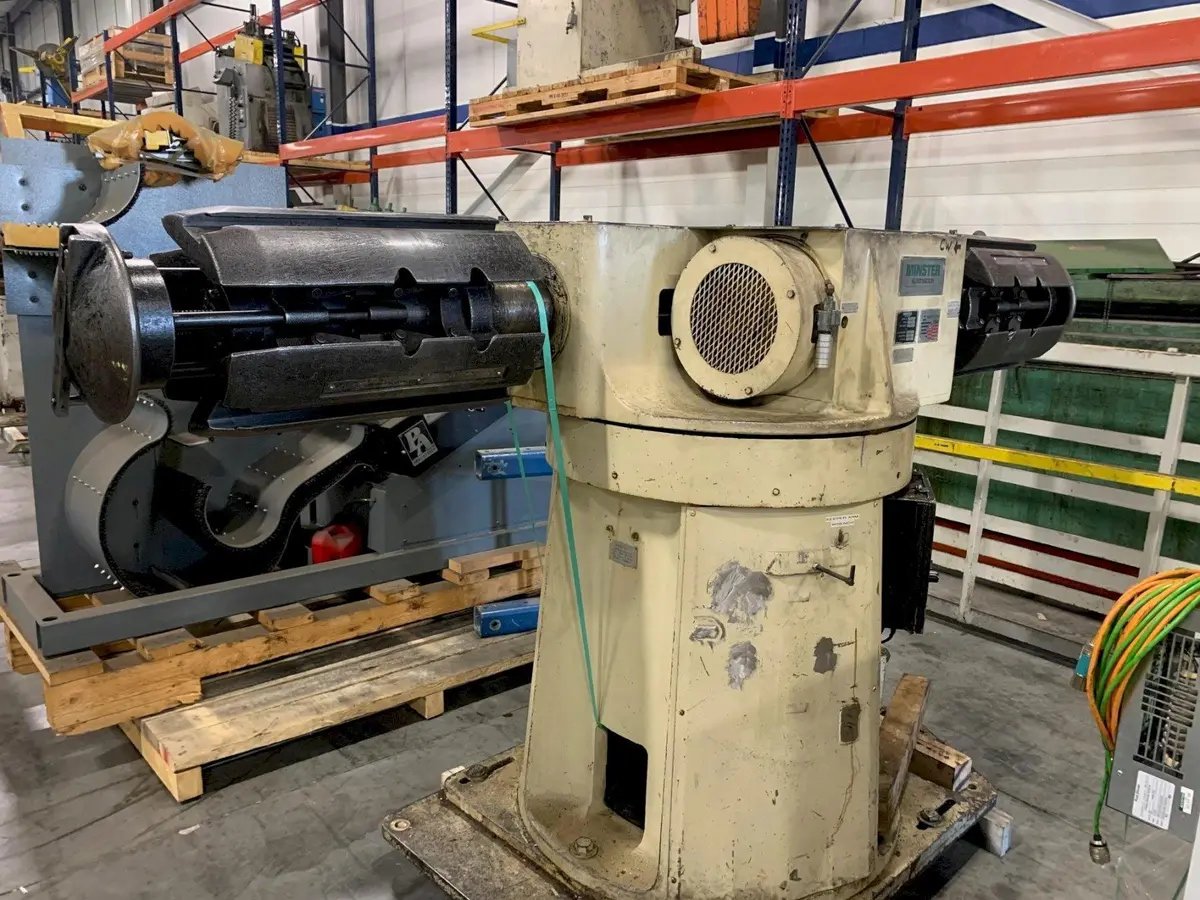

Minster Double End Coil Reel Uncoiler Model No.: MR6-14D, Serial No.: 13-70204
Three leaf mandrel coil reel
Coil reel keeper arms
Front mounted manual mandrel expansion
Air drag brakes mounted on main coil reel spindles
Outboard air regulators for drag brake adjustments

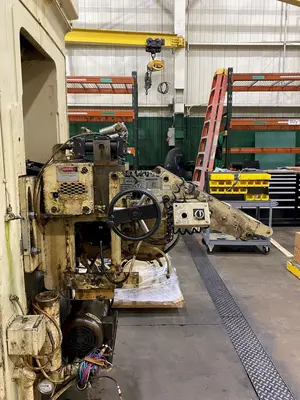

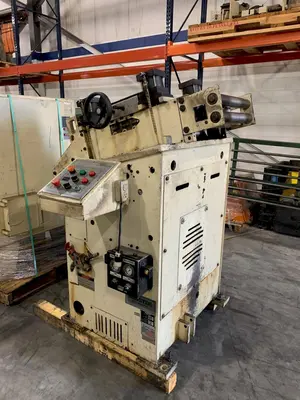

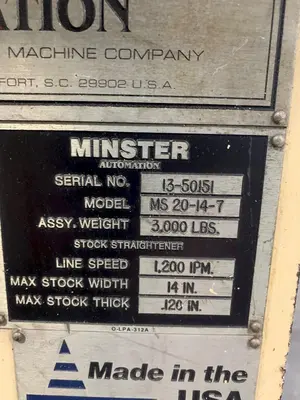

Minster Powered Coil Straightener Model No.: MS20-14-7, Serial No.: 13-50151
Entry and exit powered coil straightener pinch rolls with air operated adjustment
Outboard air regulator for upper powered coil straightener pinch roll air pressure adjustment
Seven coil straightening rolls x 2" diameter
Inclined powered coil straightening head
Cascade loop support section
Variable speed powered coil straightener drive
Common operator's control station for coil reel and powered straightener functions
Jog forward and reverse
Auto / Run cycle
Loop control
480 Volt

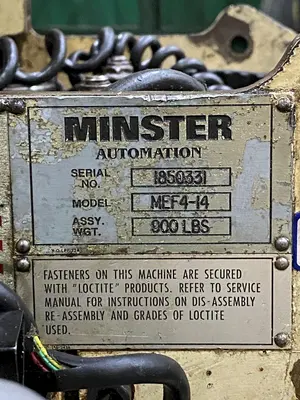

Minster Servo Roll Feed Model No.: MEF4-14, Serial No.: 18-50331Four inch diameter upper and lower servo feed rollsAir operated upper servo feed pilot releaseCascade loop - material support rollers
Press mounted with pass line adjustment
Adjustable stock width edge guides  Updated AC servo roll feed drive and controls
Controls installed 2024Job memory micro adjust batch count etc (Consult sales for complete details)Free standing sloped front servo roll feed control consoleRemote pendant control for jog forward and reverseFused disconnect480 VoltAuto Mode
