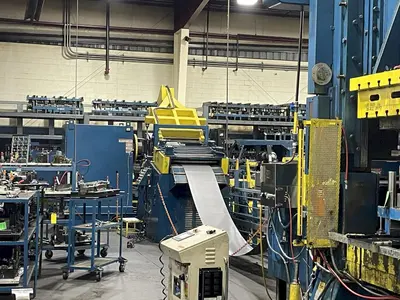

Coe Press Coil Feed Line 20,000 Lbs. x 36" Wide
Stock thickness capacity: .125" x 36" Wide
Stock thickness capacity: .250" x 12" Wide
Equipped with:

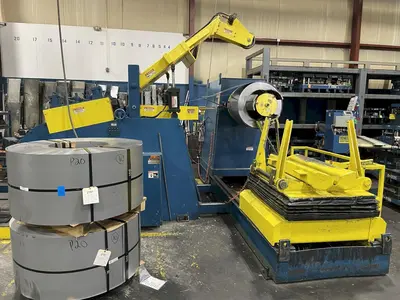

Coe Press Coil Reel Model CPR-PO-200-36
Hydraulic mandrel expansion
Hydraulic jog drive
Air brake (adjustable tensioning)
Traveling coil load car
Powered lift and travel on coil car

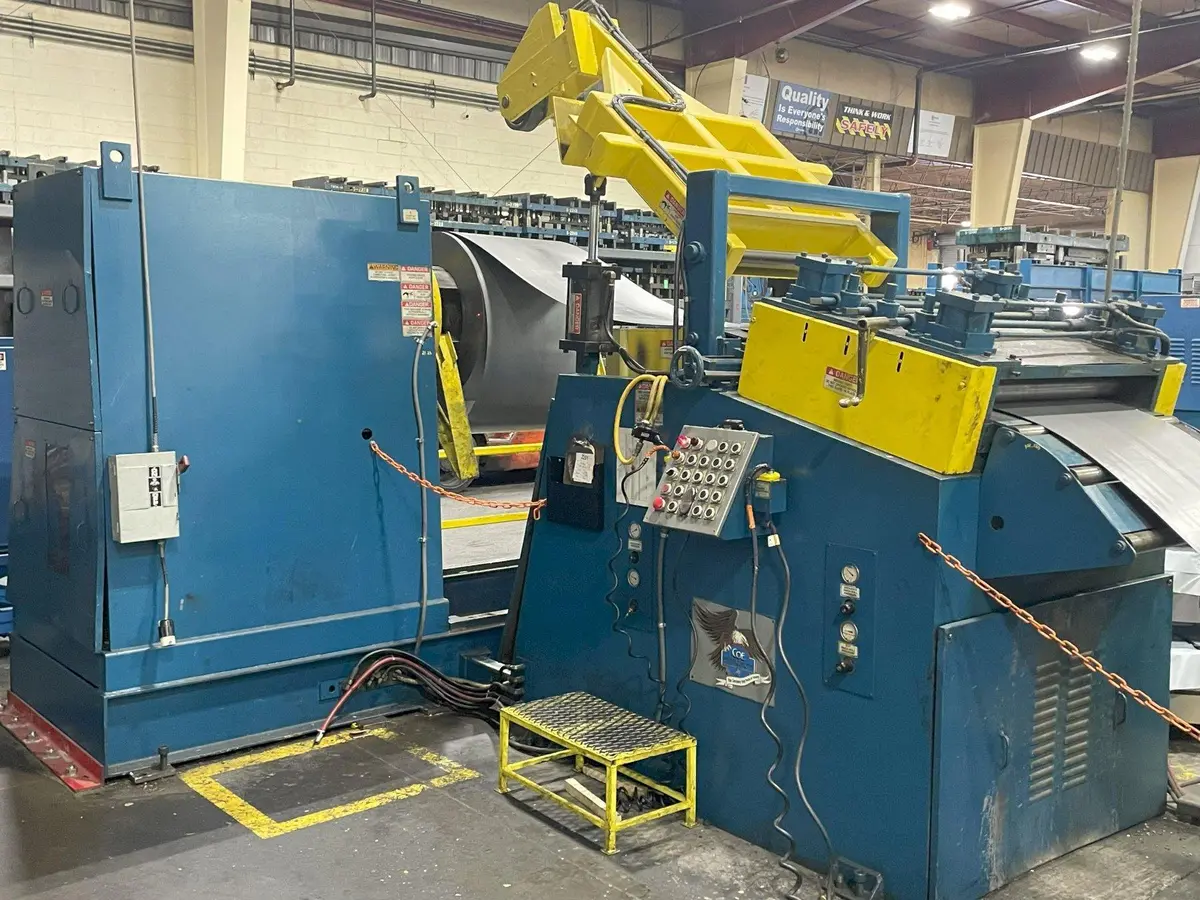

Coe Press Powered Coil Straightener Model No. CPPS-350-36
Entry and exit pinch rolls with air operated adjustment
Seven straightening rolls x 3.50" diameter
Coil hold down arm with motorized end wheel
Stock peeler table
Integrated stock de-bender
Adjustable stock width edge guides
Exit cascade loop support rollers
Variable speed payout
Loop control
Coe Press Exit Thread Table Model CPTT-36
Coe Press Servo Roll Feed Model No. CPR-436
Piloting upper feed roll
Adjustable stock width edge guides
Cabinet base with adjustable pass line
NOTE: Jet Set stock lubricator is not included

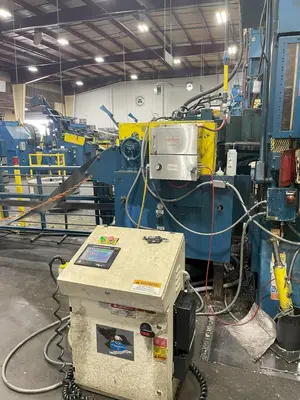

Updated AC servo controls by Coe Press
