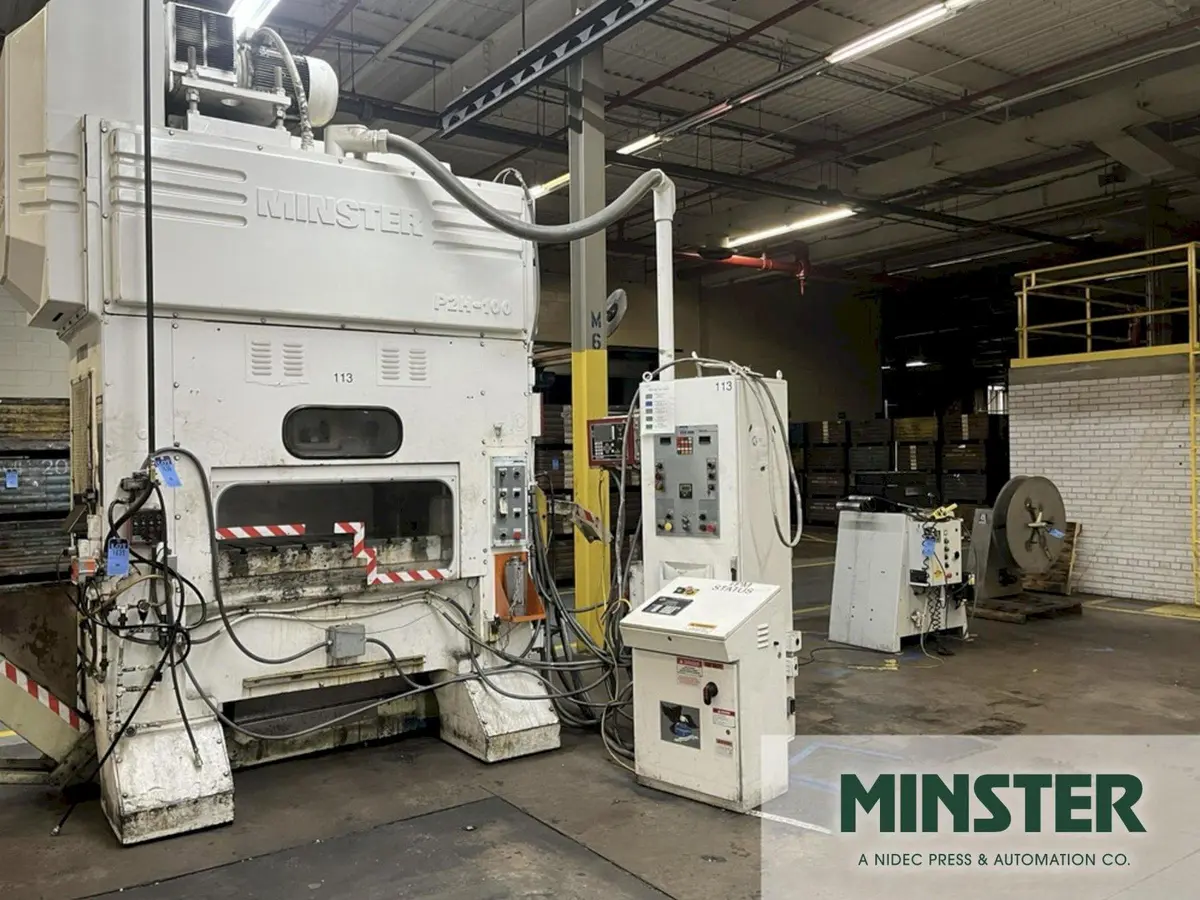

Used 1990 MINSTER P2H-100-48 | Presses, Straight Side

PRESS SPECIFICATIONS:
• 112 U.S. Tons Capacity (1000 kN)
• 1.57 in. Stroke (40 mm)
• 3.94 in. Shutheight Adjustment (100 mm)
• 0.50 – 4.50 in. Quick Access Slide Travel (12-115 mm)
• 9.44 – 13.44 in. Shutheight, SDAU, on Bolster (240 – 340 mm)
• 6.0 in. Bolster Plate (152 mm)
• 48.00 x 26.00 in. Slide Area (1220 x 660 mm)
• 48.00 x 31.50 in. Bed Area (1220 x 800 mm)
• 40.00 x 14.20 in. Bed Opening (1015 x 360 mm)
• 40.80 in. Floor to top of bed (1035 mm)
• 15.1 in. Upright Opening (384 mm)
• 0-450 SPM 1.57 in. stroke (40 mm)
• 25 HP, 1500/1800 RPM Drive Motor (19 kW)
• 41,000 lbs. Approximate Weight (18,600 kg)

EQUIPPED WITH:
• Flywheel Type
• Left hand drive, extension on opposite end
• High tensile cast iron frame w/ lube troughs cast in
• Minster Hydraulic Clutch & Brake
• Air Operated Flywheel Brake
• Counterweights on Crankshaft
• Quick Lift Slide
• Hydraulic Motorized Slide Adjustment
• Hydraulic Slide Lockup
• Pressurized Monitored Recirculating Lube System
• Die Space enclosure, pneumatically assisted
