Used 2005 CHS DR200-36 / DFRS5-36 | Coil Feed Lines

CHS Automation Coil Feed Line Specifications:
Coil weight capacity: 20,000 Lb
Coil width capacity: 36"
Stock thickness capacity: .125" x 36" wide
Expansion range: 19.5" - 24.5"
Coil O.D. Capacity: 72"

CHS Automation Coil Feed Line Equipment And Features:

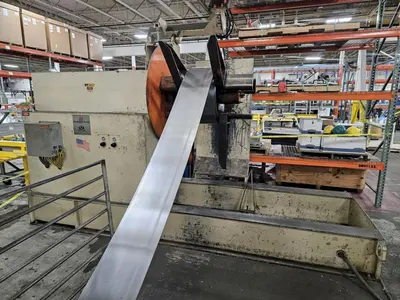

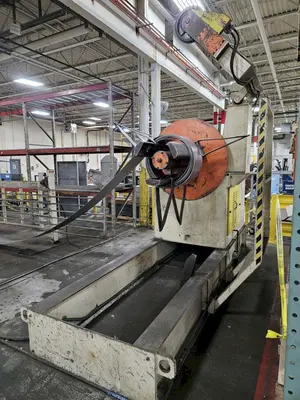

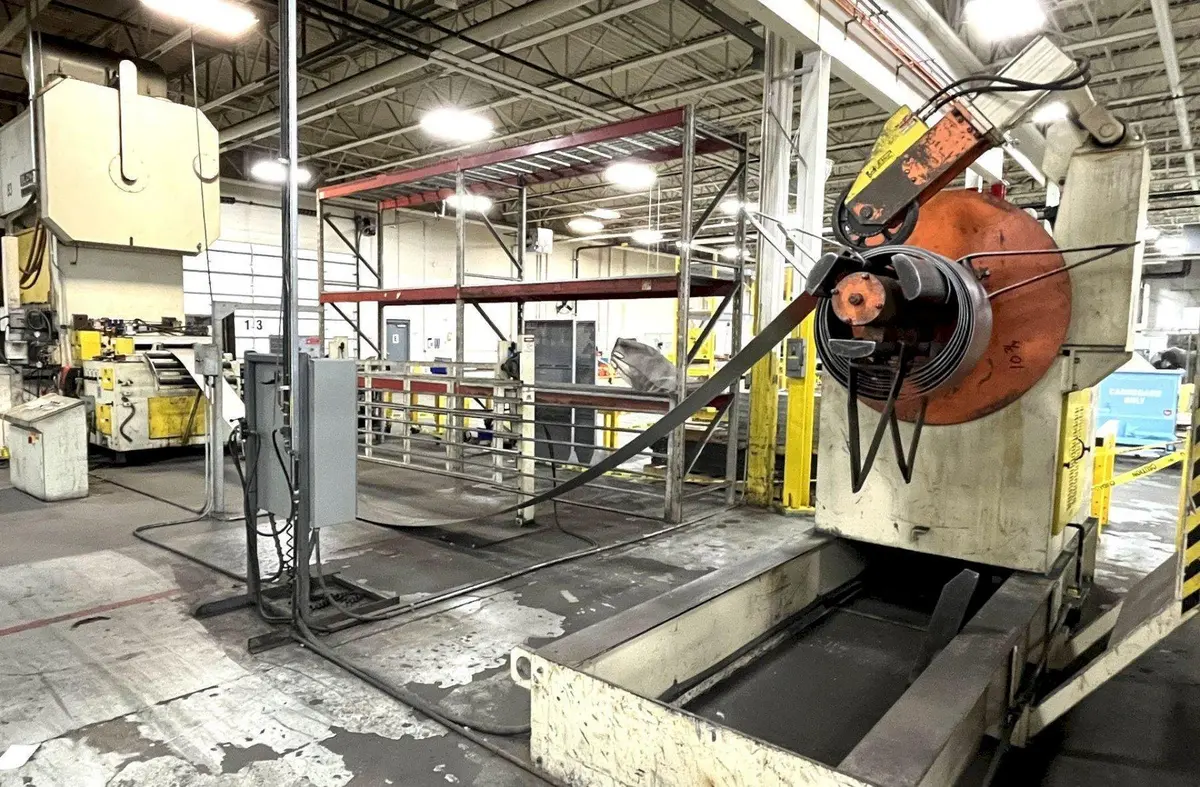

CHS Automation Motorized Coil Reel, Model No.: DR200-36, Serial No.: 05-5304
Three leaf mandrel coil reel
Hydraulic coil reel mandrel expansion
Stand alone hydraulic unit
Air operated coil hold down arm
Motorized hold down arm end wheel (Hydraulic)
Clock spring safety guard
Motorized coil payout
Variable speed drive
Jog forward and reverse
Auto / Run cycle
Loop control

CHS Automation Exit Threading Table, Model No.: ETT-36
Bombay door style
Air operated raise and lower

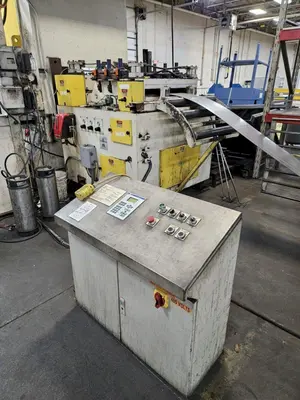

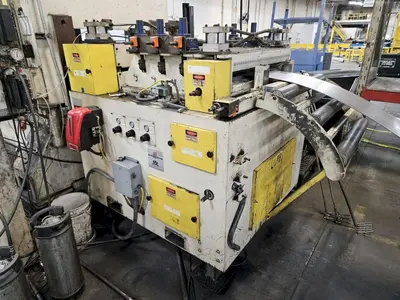

CHS Automation Servo Roll Feed Straightener Combination, Model No.: DRFS5-36, Serial No.: 05-5305
Five inch diameter full width upper and lower feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo roll lift / pilot (solenoid controlled)
Seven roll pull thru straightener x 3.5" diameter
Individual upper pull thru straightener roll adjustments via screw jacks
Air operated upper pinch roll adjustment
Motorized pinch roll assembly with air clutch engagement
Jog forward and reverse
Stock width edge guides

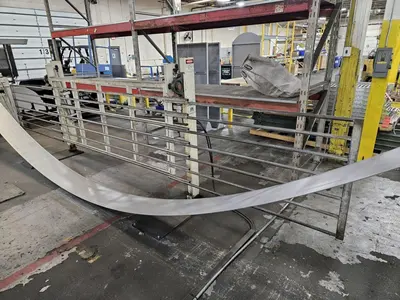

Cascade loop support rollers
Centralized lubrication points
Outboard air pressure regulators and gauges
Heavy duty cabinet base mounted
Motorized pass line adjustment

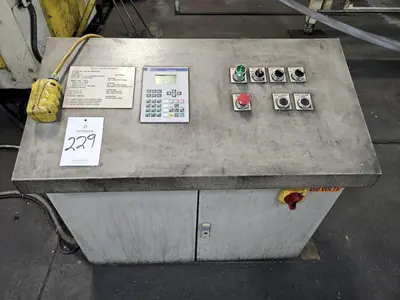

AC servo roll feed drive and controls
Job memory storage
