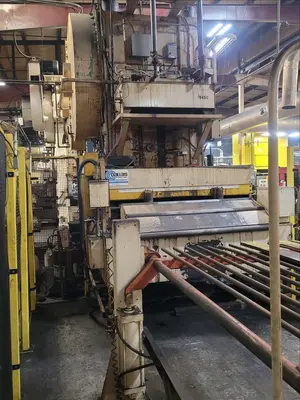

Dallas Industries Coil Feed Line 20,000 Lbs. x 72" Wide
Stock thickness capacity: .060" x 72" Wide
Stock thickness capacity: .125" x 48" Wide
Equipped With:

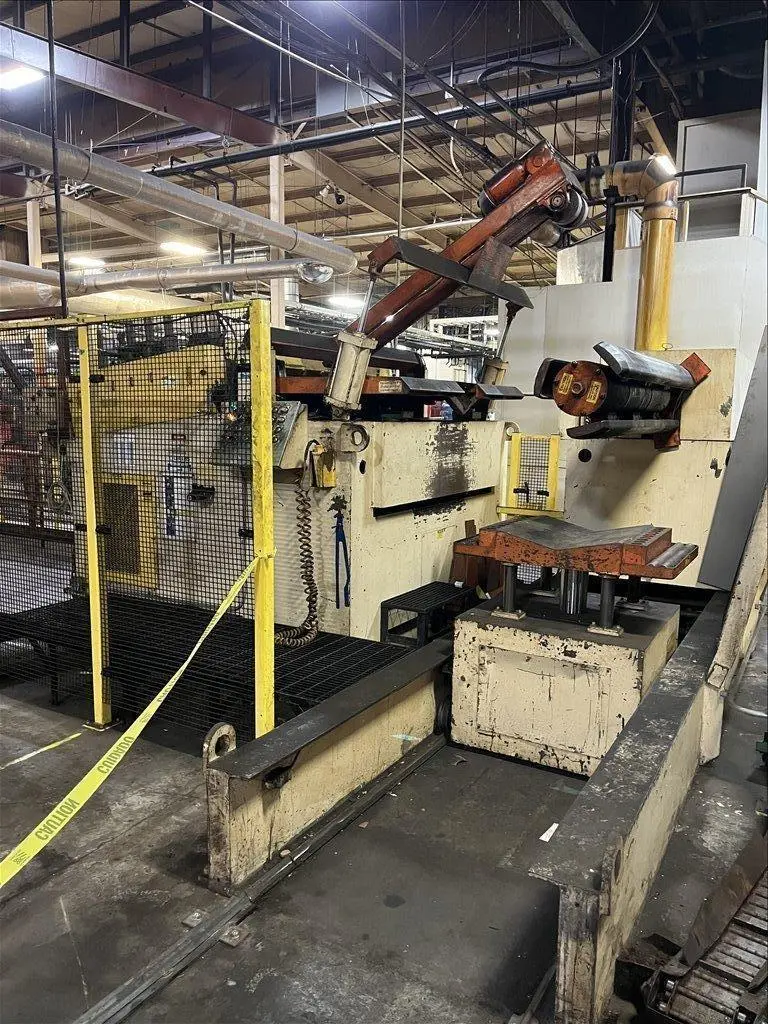

Dallas Coil Reel Model No. DJR-20,000# x 72
Three leaf mandrel with hydraulic expansion
Adjustable coil keeper arms
Jog drive for threading
Dallas Coil Load Car Model No. LC-20,000# x 72
Powered lift and travel
Dallas Powered Straightener Model No. DPS-4-1/4-72
Seven straightening rolls x 4.25" diameter
Entry and exit pinch rolls
Coil hold down arm and stock peeler / threading station

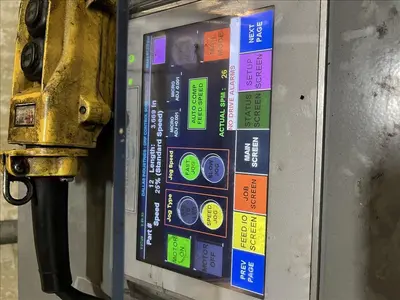

Operator's controls
Loop control

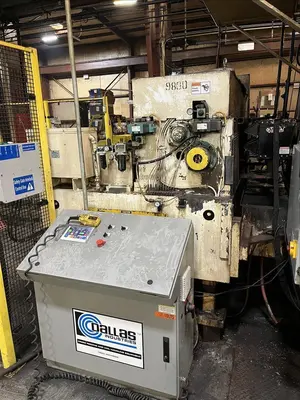

Dallas Servo Roll Feed Model NO. DRF-672
Piloting upper feed roll
Cabinet base with adjustable pass line

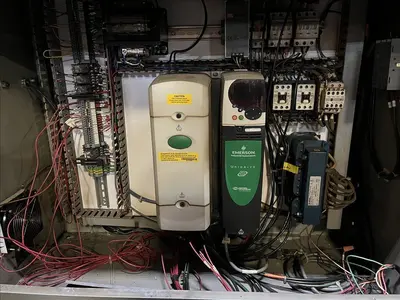

Servo controls upgraded by Dallas in 2015
