Used MINSTER | Coil Feed Lines

MINSTER Double End Complete Coil Feed Line Specifications:
Coil weight capacity: 6,000 Lbs. per side
Coil width capacity: 14"
Stock thickness capacity: .120" x 14" Wide
Stock thickness capacity: .188" x 04" Wide
Expansion range: 16" - 20"
Coil O.D. capacity: 60"

Minster Double End Complete Coil Feed Line Equipment and Features:

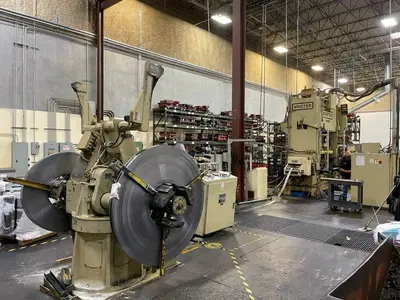

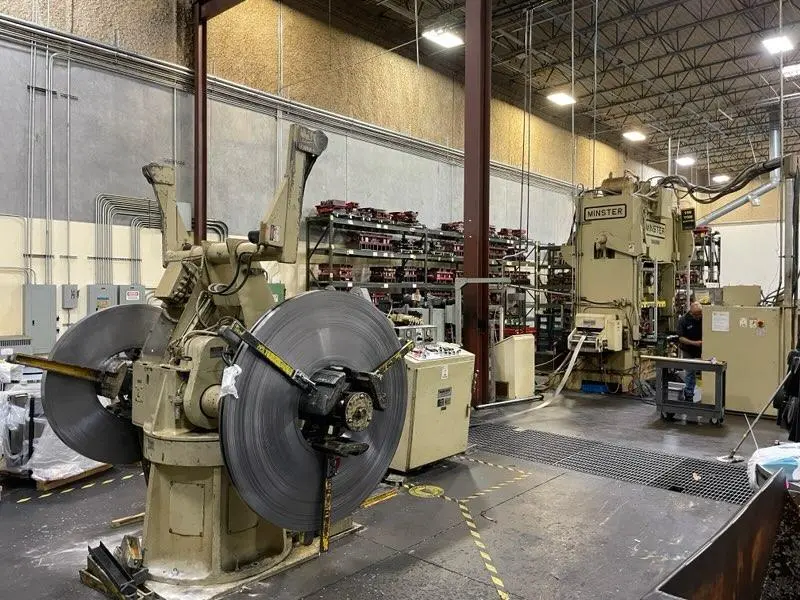

Minster Double End Coil Reel Uncoiler Model No.: MR6-14D, Serial No.: 13-70077
Three leaf mandrel coil reel per side
Coil reel keeper arms
Hydraulic mandrel expansion
Air drag brakes mounted on main coil reel spindles
Outboard air regulators for drag brake adjustments
Hydraulic threading drives for jog forward and reverse
Dual air operated coil hold down arms
Motorized coil hold down arm end wheels
Air operated turret locking pin
Hydraulic turret rotation

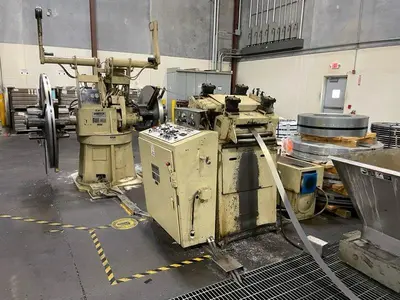

Minster Powered Coil Straightener Model No.: MS20-14-7, Serial No.: 13-50071
Entry and exit powered coil straightener pinch rolls with air operated adjustment
Outboard air regulator for upper powered coil straightener pinch roll air pressure adjustment
Seven coil straightening rolls x 2" diameter
Hydraulic upper straightener roll adjustments
Digital upper straightening roll depth displays
Inclined powered coil straightening head
Cascade loop support section
Auto lubrication system
Variable speed powered coil straightener drive
Common operator's control station for coil reel and powered straightener functions
Jog forward and reverse
Auto / Run cycle
Loop control
480 Volt

Minster Exit threading Table
Air Actuated
Bombay door style

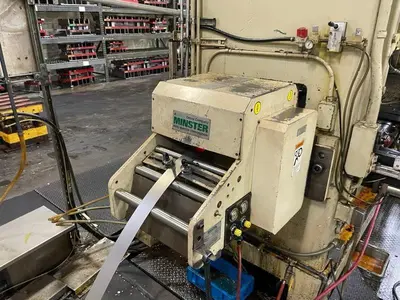

Minster Servo Roll Feed Model No.: MEF3-14S, Serial No.: 18-514612.5 inch diameter upper and lower servo feed rollsAir operated upper servo feed roll lift / pilot releaseCascade loop - material support rollers
Press mounted

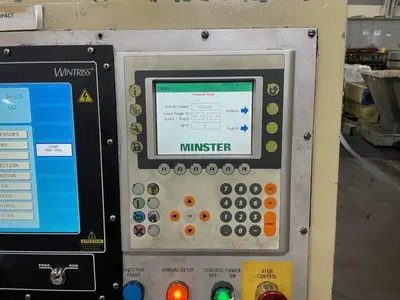

Adjustable stock width edge guides  AC servo roll feed drive and controlsJob memory micro adjust batch count etc (Consult sales for complete details)Free standing sloped front servo roll feed control consoleRemote pendant control for jog forward and reverseFused disconnect480 VoltAuto Mode
