Used PERFECTO RS15-30 / 28-30-7 / 500-30 | Coil Feed Lines

Perfecto Complete Coil Feed Line Specifications:Coil weight capacity: 15,000 Lbs.Coil width capacity: 30"Stock thickness capacity: .090" x 30" Wide
Expansion range: 19.5" - 24.5" Coil OD capacity: 60"

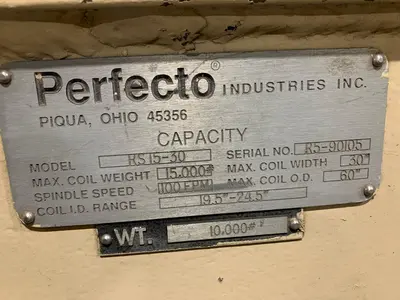

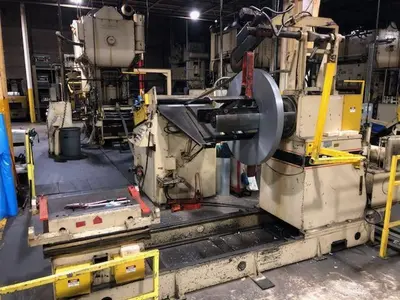

Perfecto Complete Coil Feed Line Equipment and Features:Perfecto Coil Reel Uncoiler Model No.: RS150-30, Serial No.: RS-90105Four leaf mandrel coil reelHydraulic coil reel mandrel expansion Adjustable coil reel keeper arms Air brake mounted on main coil reel spindle Adjustable brake - pull off tension
Coil hold down arm with motorized end wheelThreading drive Traveling coil load car Powered elevation and travel Self contained hydraulic pump unit Jog forward and reverse

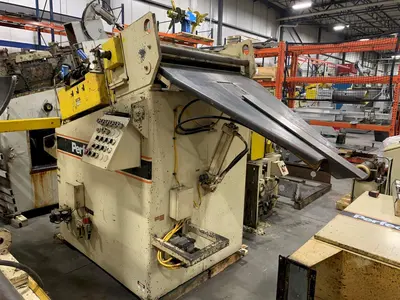

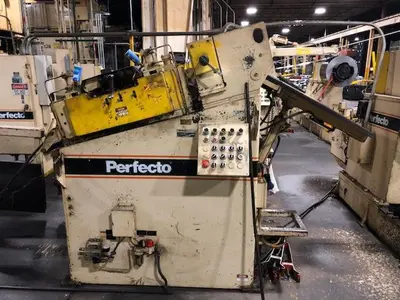

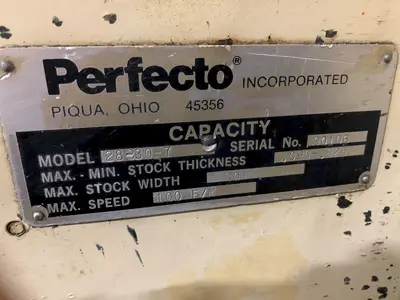

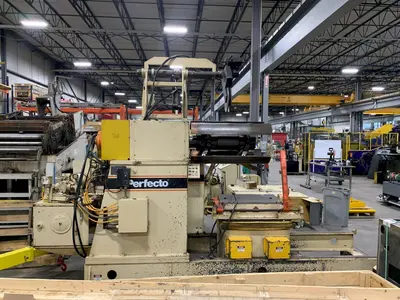

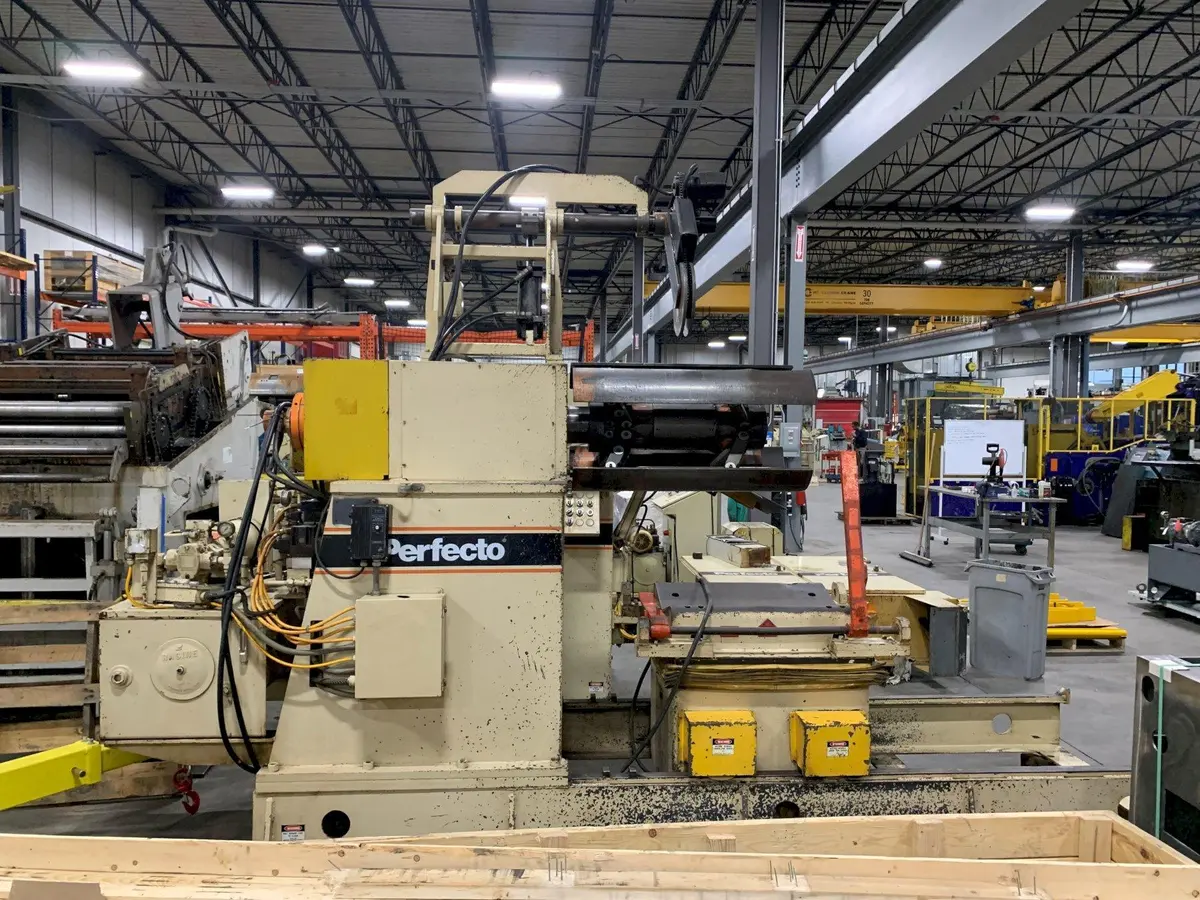

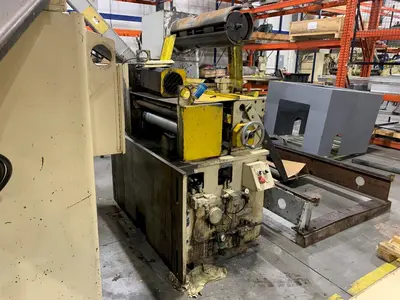

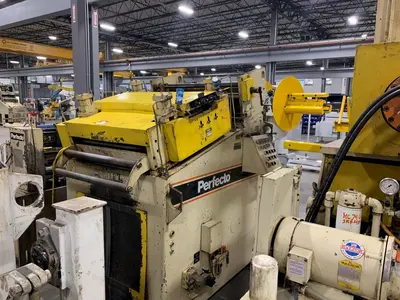

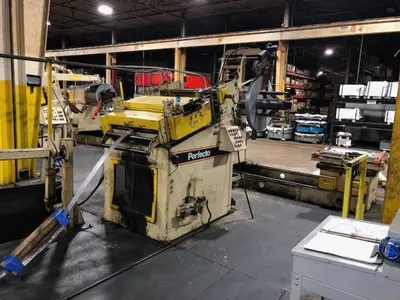

Perfecto Powered Coil Straightener Model No.: 28-30-7, Serial No.: 90106Entry and exit powered coil straightener pinch rolls with air operated adjustmentsSeven coil straightening rolls x 2.8" diameterManual individual or unison upper coil straightening roll adjustments
Stock peeler table with extension Heavy duty hand crank edge guides
Exit cascade loop support rollers
Manual lubrication systemVariable speed powered coil straightener drive system Operator's control console
Jog forward and reverse
Auto / run cycleLoop control

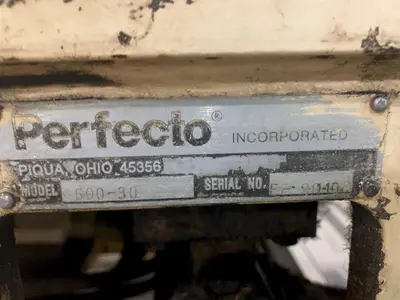

Perfecto Exit Thread Table Model No. ETT-30Perfecto Servo Roll Feed Press Feed Model No.: 500-30, Serial No.: EF901005" diameter upper and lower servo feed rolls
Air operated upper servo feed roll lift/pilot
Adjustable stock width edge guides (Hand Crank)Entry cascade loop support rollers Free standing base with adjustable pass line height
Press mounted with adjustable pass line heightAC servo roll feed drive and controls Job memory micro adjust batch count etcPilot pin modeFree standing sloped front servo roll feed control consoleRemote pendant control for jog forward and reverseFused disconnect
