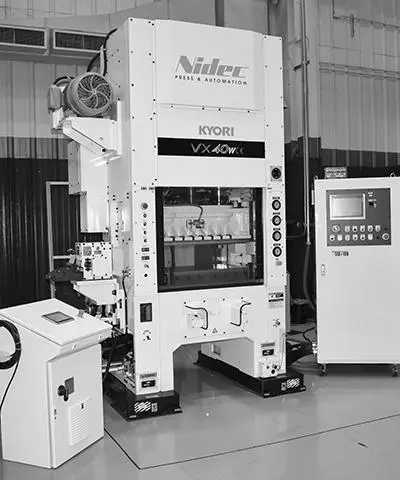

New 2024 KYORI VX-40W | Presses, High Speed Production


SPECIFICATIONS:

Press Specifications
 Model Number........................................................... VX-40W
Force × Distance off Bottom.....................................   400 kN
Drive Arrangement....................................................   Flywheel w/ Dynamic Balancer
Drive Location............................................................   Right Hand Side
Approximate Press Weight........................................   9,500 kg
Shutheight Indicator Readout....................................   Metric
Shop Air Pressure, Minimum....................................   5.9 bar
Stroke Length, Speed Range....................................   Variable from 16-50 mm in 7 distinct increments
                                                                                      16 mm @ 1000 SPM
                                                                                      20 mm @ 800 SPM
                                                                                      25 mm @ 600 SPM
                                                                                      30 mm @ 500 SPM
                                                                                      35 mm @ 400 SPM
                                                                                      40 mm @ 350 SPM
                                                                                      50 mm @ 260 SPM

Slide Specifications
 Area of Slide (AxB)....................................................   950 x 450 mm

Bolster Specifications
 Bolster Plate Material................................................     S45C
Area of Bolster, (AxB)...............................................     950 x 600 mm

Opening in Bolster (C)...............................................    110 mm

Press Frame Specifications
 Shutheight, Maximum (SDAU).................................   285 mm on Bolster
Shutheight Adjustment..............................................   50 mm
Feedline Height from floor…………………………….  1366 mm
Feedline height over Bolster………………………….  120+- 20 mm
(4) Individual Spacers…………………………………. TBD (to get 1366mm)
(4) Individual Shock Mounts…………………………..  Air type shock absorber
Approx. Clearance, Foot to Bottom of Bed...............   505 mm

Approx. Distance Foot to Top of Bed........................   935 mm
