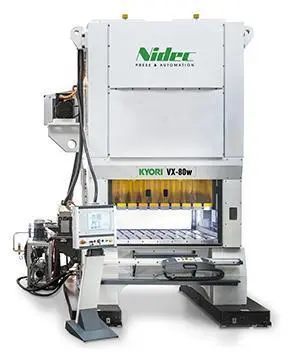

New 2024 KYORI VX-80W | Presses, High Speed Production

SPECIFICATIONS
 Model Number........................................................... VX-80W
Force × Distance off Bottom..................................... 800 kN (88 US Ton)
Drive Arrangement.................................................... Flywheel w/ Dynamic Balancer
Drive Location........................................................... Left Hand Side
Approximate Press Weight........................................ 27,000 kg (59,525 lbs)
Shutheight Indicator Readout.................................... Metric
Shop Air Pressure, Minimum.................................... 5.9 bar (86 PSI)

Slide Specifications
Stroke Length, Speed Range..................................... 7 distinct increments
                                                                                     25 mm (0.98 in) @ 650 SPM
                                                                                     30 mm (1.18 in) @ 550 SPM
                                                                                     35 mm (1.38 in) @ 470 SPM
                                                                                     40 mm (1.57 in) @ 400 SPM
                                                                                     50 mm (1.96 in) @ 330 SPM
                                                                                     60 mm (2.36 in) @ 270 SPM
                                                                                     75 mm (2.95 in) @ 150 SPM
Shutheight, Maximum (SDAU)................................ 380 mm (14.96 in) on Bolster
Shutheight Adjustment.............................................. 80 mm (3.15 in)
Electric Slide Adjustment Device............................. Servo Motor
Area of Slide.............................................................. 1380 x 580 mm (54.33 x 22.83 in)
Slide Machining......................................................... Standard T-Slots
Maximum Recommended Upper Die Weight........... 550 kg (1212 lb.) @ Stroke 25-65mm (0.98-2.56 in)
                                                                                     450 kg (992 lb.) @ Stroke 66-75mm (2.60-2.95 in)

Bolster Specifications
Bolster Plate Material................................................ FC300 Steel
Area of Bolster........................................................... 1500 x 900 mm (59.05 x 35.43 in)
Opening in Bolster..................................................... 1160 x 210 mm (45.66 x 8.26 in)
Bolster Plate Thickness.............................................. 100 mm (3.94 in)
Bolster Plate Machining............................................. Standard T-slots

Press Frame Specifications
Floor to Top of Bed................................................... 960 mm (37.8 in)
Upright Opening, F-B................................................ 380 mm (14.9 in)
Opening in Bed, R-L x F-B....................................... 1200 x 250 mm (47.2 x 9.8 in)
Approx. Overall Area (Length x Width)................... 2850 x 1825 mm (112 x 73 in)
Approx. Overall Height from Floor........................... 4070 mm (160 in)
