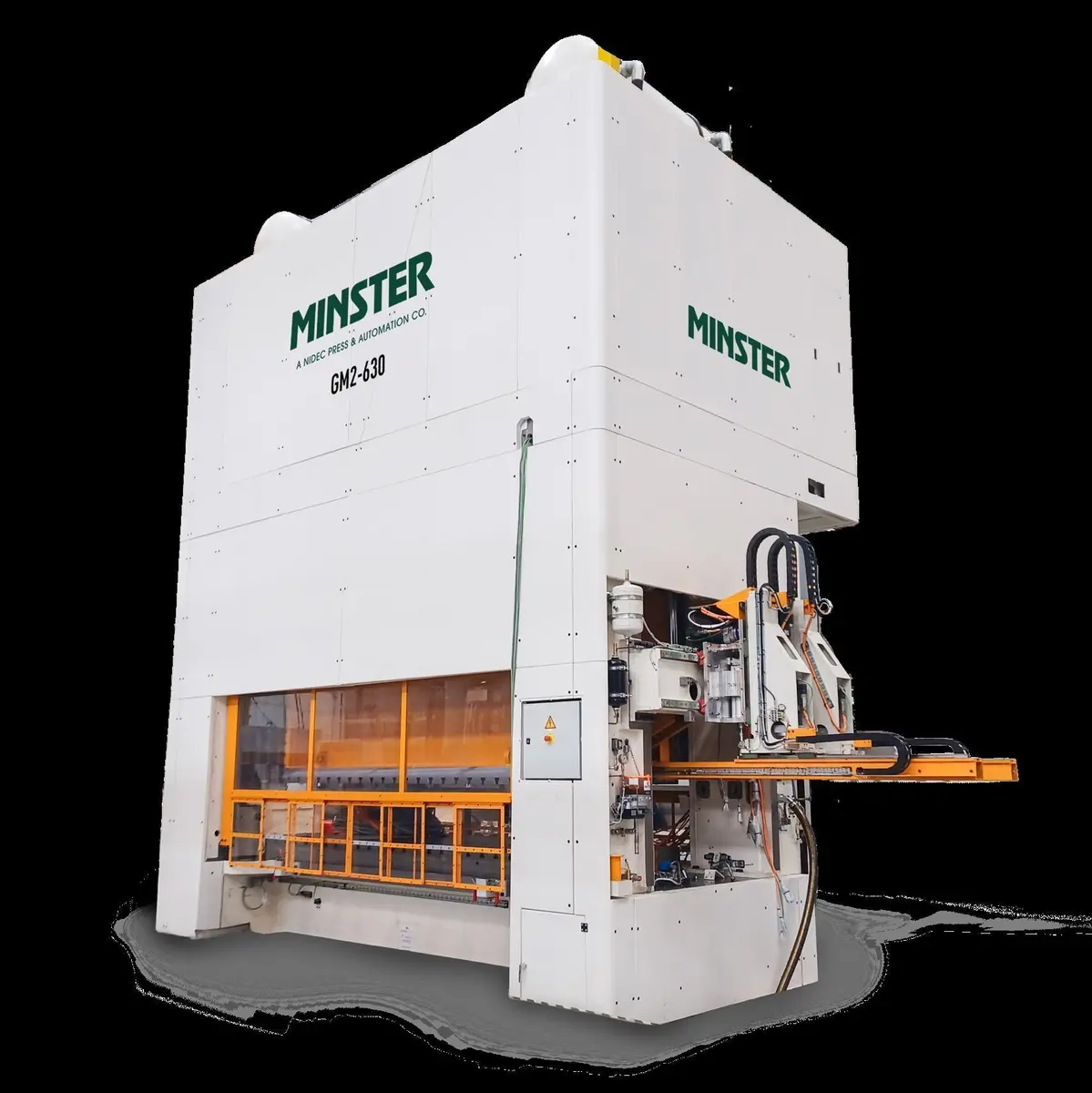

New 2024 MINSTER GM2-400-305X140-STD | Presses, Straight Side

SPECIFICATIONS

Press Specifications
Model Number........................................................ GM2-400-305x140-STD
Force × Distance off Bottom.................................. 4000 kN x 6 mm (440 tons x 0.24 in.)
Energy (with 15% slowdown)................................ 25 kJ (110.6 in-tons) @ 25 spm
Connection Points................................................... 2
Lube Unit Location................................................. Standalone Floor Level
Approximate Press Weight..................................... 82,000 kg (181,000 lbs.)
Scale and Display Units.......................................... Inch/Metric
Shop Air Pressure, Minimum.................................. 5.9 bar (590 kPa) (85 psi)

Press Slide Specifications
Stroke Length.......................................................... 50 to 400 mm (1.97 to 15.75 in) variable
   Max. Speed at 400 mm (15.75 in.)....................... 55 spm
   Max. Speed at 300 mm (11.81 in.)....................... 65 spm
   Max. Speed at 200 mm (7.87 in.)......................... 80 spm
   Max. Speed at 100 mm (3.94 in.)......................... 100 spm
   Max. Speed at 50 mm (1.97 in.)........................... 120 spm
Area of Slide, R-L × F-B........................................ 3050 x 1400 mm (120 x 55 in.)
Slide Face Machining.............................................. Standard
Overload travel........................................................ 25 mm (0.98 in.)
Overload recovery time........................................... 120s
Maximum Upper Die Weight................................. 6,000 Kg (13,200 lbs.)

Press Bolster Specifications
Bolster Plate Material.............................................. Steel
Bolster Plate Thickness........................................... 190 mm (7.5 in.)
Area of Bolster, R-L × F-B..................................... 3050 x 1400 mm (120 x 55 in.)
Opening in Bolster, R-L × F-B............................... None
Bolster Plate Machining.......................................... Standard

Press Frame Specifications
Upright Passline Opening, F-B............................... 1400 mm (55 in.)
Area of Bed, R-L × F-B.......................................... 3050 x 1400 mm (120 x 55 in.)
Opening in Bed, R-L (F-B ribs) × F-B................... 2500 (3) x 350 mm (98.4 x 13.7 in.)
Bed/Slide Deflection at 67% of Die Area............... 0.125 mm/m (0.0015 in/ft)
Shutheight SDAU @ 50 mm Stroke....................... 900 mm (35.43 in.) Bolster to Slide
Shutheight SDAU @ 100 mm Stroke..................... 875 mm (34.45 in.) Bolster to Slide
Shutheight SDAU @ 200 mm Stroke..................... 825 mm (32.48 in.) Bolster to Slide
Shutheight SDAU @ 300 mm Stroke..................... 775 mm (30.51 in.) Bolster to Slide
Shutheight SDAU @ 400 mm Stroke..................... 725 mm (28.54 in.) Bolster to Slide
Shutheight Adjustment........................................... 350 mm (13.8 in.)
Accuracy of slide adjustment.................................. 0.1 mm (0.004 in)
