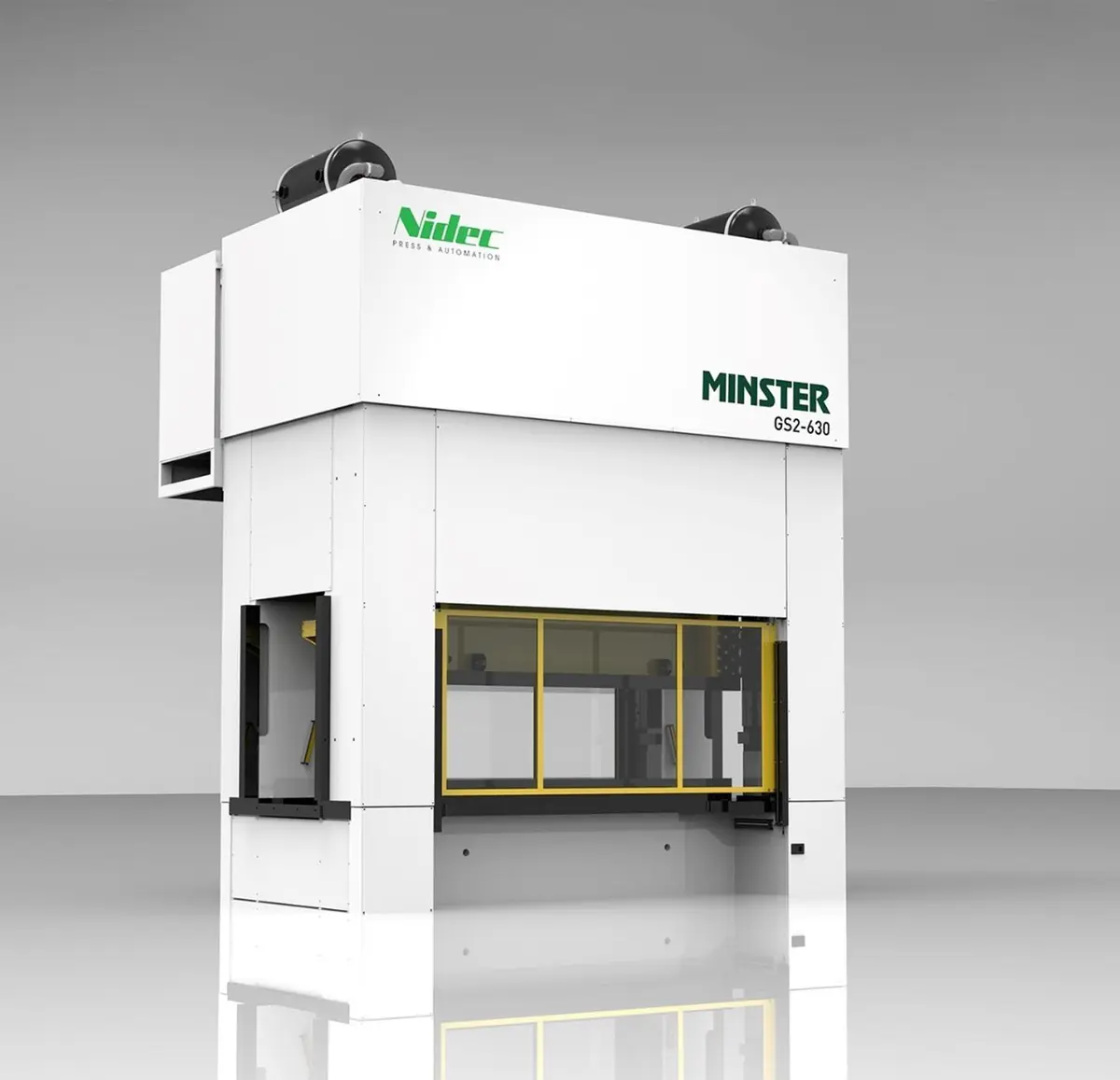

New 2024 MINSTER GM2-630-365X150 | Presses, Straight Side

SPECIFICATIONS

Press Specifications
Model Number........................................................ GM2-630-365x150
Force × Distance off Bottom.................................. 6300 kN x 7 mm (710 tons x 0.27 in.)
Energy..................................................................... 60 kJ (265.5 in-tons) @ 25 spm
Connection Points................................................... 2
Lube Unit Location................................................. Standalone Floor Level
Approximate Press Weight..................................... 125,000 kg (276,000 lbs.)
Scale and Display Units.......................................... Inch/Metric
Shop Air Pressure, Minimum.................................. 5.9 bar (590 kPa) (85 psi)

Press Slide Specifications
Stroke Length.......................................................... 50 to 450 mm (1.97 to 17.71 in.) variable
   Max. Speed at 450 mm (17.71 in.)....................... 45 spm
   Max. Speed at 400 mm (15.75 in.)....................... 50 spm
   Max. Speed at 300 mm (11.81 in.)....................... 60 spm
   Max. Speed at 200 mm (7.87 in.)......................... 75 spm
   Max. Speed at 100 mm (3.94 in.)......................... 100 spm
   Max. Speed at 50 mm (1.97 in.)........................... 120 spm
Area of Slide, R-L × F-B........................................ 3650 x 1500 mm (143 x 59 in.)
Slide Face Machining.............................................. Standard
Overload travel........................................................ 25 mm (0.98 in.)
Overload recovery time........................................... 120s
Maximum Upper Die Weight................................. 7,000 Kg (15,430 lbs.)

Press Bolster Specifications
Bolster Plate Material.............................................. Steel
Bolster Plate Thickness........................................... 190 mm (7.5 in.)
Area of Bolster, R-L × F-B..................................... 3650 x 1500 mm (143 x 59 in.)
Opening in Bolster, R-L × F-B............................... None
Bolster Plate Machining.......................................... Standard

Press Frame Specifications
Upright Passline Opening, F-B............................... 1500 mm (59 in.)
Area of Bed, R-L × F-B.......................................... 3650 x 1500 mm (143 x 59 in.)
Opening in Bed, R-L (F-B ribs) × F-B................... 3100 (3) x 650 mm (122 x 25.6 in.)
Bed/Slide Deflection at 67% of Die Area............... 0.125 mm/m (0.0015 in/ft)
Shutheight SDAU @ 50 mm Stroke....................... 1025 mm (40.35 in.) Bolster to Slide
Shutheight SDAU @ 100 mm Stroke..................... 1000 mm (39.37 in.) Bolster to Slide
Shutheight SDAU @ 200 mm Stroke..................... 950 mm (37.40 in.) Bolster to Slide
Shutheight SDAU @ 300 mm Stroke..................... 900 mm (35.43 in.) Bolster to Slide
Shutheight SDAU @ 400 mm Stroke..................... 850 mm (33.46 in.) Bolster to Slide
Shutheight SDAU @ 450 mm Stroke..................... 825 mm (32.48 in.) Bolster to Slide
Shutheight Adjustment........................................... 400 mm (15.7 in.)
Accuracy of Slide Adjustment................................ 0.1 mm
