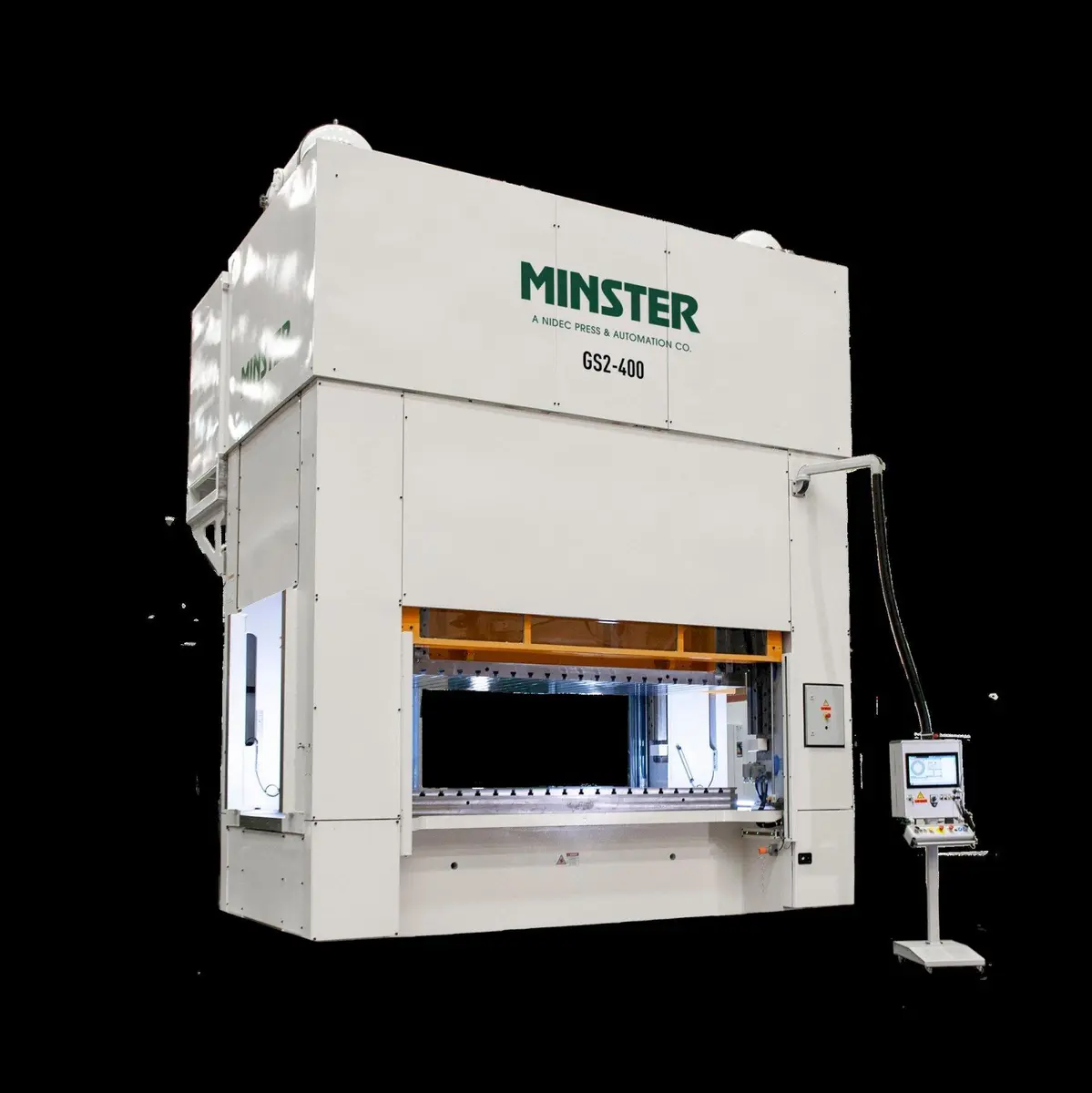

New 2024 MINSTER GS2-400-305X140-STD | Presses, Servo

SPECIFICATIONS

Press Specifications
Model Number........................................................ GS2-400-305x140-STD
Force × Distance off Bottom.................................. 4000 kN x 6 mm (440 tons x 0.24 in.)
Energy..................................................................... 120 kJ (531 in-tons) @ 40 spm
Connection Points................................................... 2
Lube Unit Location................................................. Standalone Floor Level
Approximate Press Weight..................................... 82,000 kg (181,000 lbs.)

Scale and Display Units.......................................... Inch/Metric
Shop Air Pressure, Minimum.................................. 5.9 bar (590 kPa) (85 psi)

Press Slide Specifications
Stroke Length.......................................................... 350 mm (13.8 in.)
Max. Speed - Continuous (reduced rating)............. 53 spm
Max. Speed in pendulum 150 mm *....................... 90 spm
Max. Speed in pendulum 125 mm *....................... 95 spm
Max. Speed in pendulum 100 mm *....................... 105 spm
Max. Speed in pendulum 80 mm *......................... 110 spm
      * Rate depends on stroke profile and press mechanical properties
Area of Slide, R-L × F-B........................................ 3050 x 1400 mm (120 x 55 in.)
Slide Face Machining.............................................. Standard
Overload travel........................................................ 25 mm (0.98 in.)
Overload recovery time........................................... 120s
Maximum Upper Die Weight................................. 6,000 Kg (13,200 lbs.)

Press Bolster Specifications
Bolster Plate Material.............................................. Steel
Bolster Plate Thickness........................................... 190 mm (7.5 in.)
Area of Bolster, R-L × F-B..................................... 3050 x 1400 mm (120 x 55 in.)
Opening in Bolster, R-L × F-B............................... None
Bolster Plate Machining.......................................... Standard

Press Frame Specifications
Upright Passline Opening, F-B............................... 1400 mm (55 in.)
Area of Bed, R-L × F-B.......................................... 3050 x 1400 mm (120 x 55 in.)
Opening in Bed, R-L (F-B ribs) × F-B................... 2500 (3) x 350 mm (98.4 x 13.7 in.)
Bed/Slide Deflection at 67% of Die Area............... 0.125 mm/m (0.0015 in/ft)
Shutheight, Maximum (SDAU).............................. 750 mm (29.5 in.) Bolster to Slide
Shutheight Adjustment........................................... 350 mm (13.8 in.)
Accuracy of slide adjustment.................................. 0.1 mm
