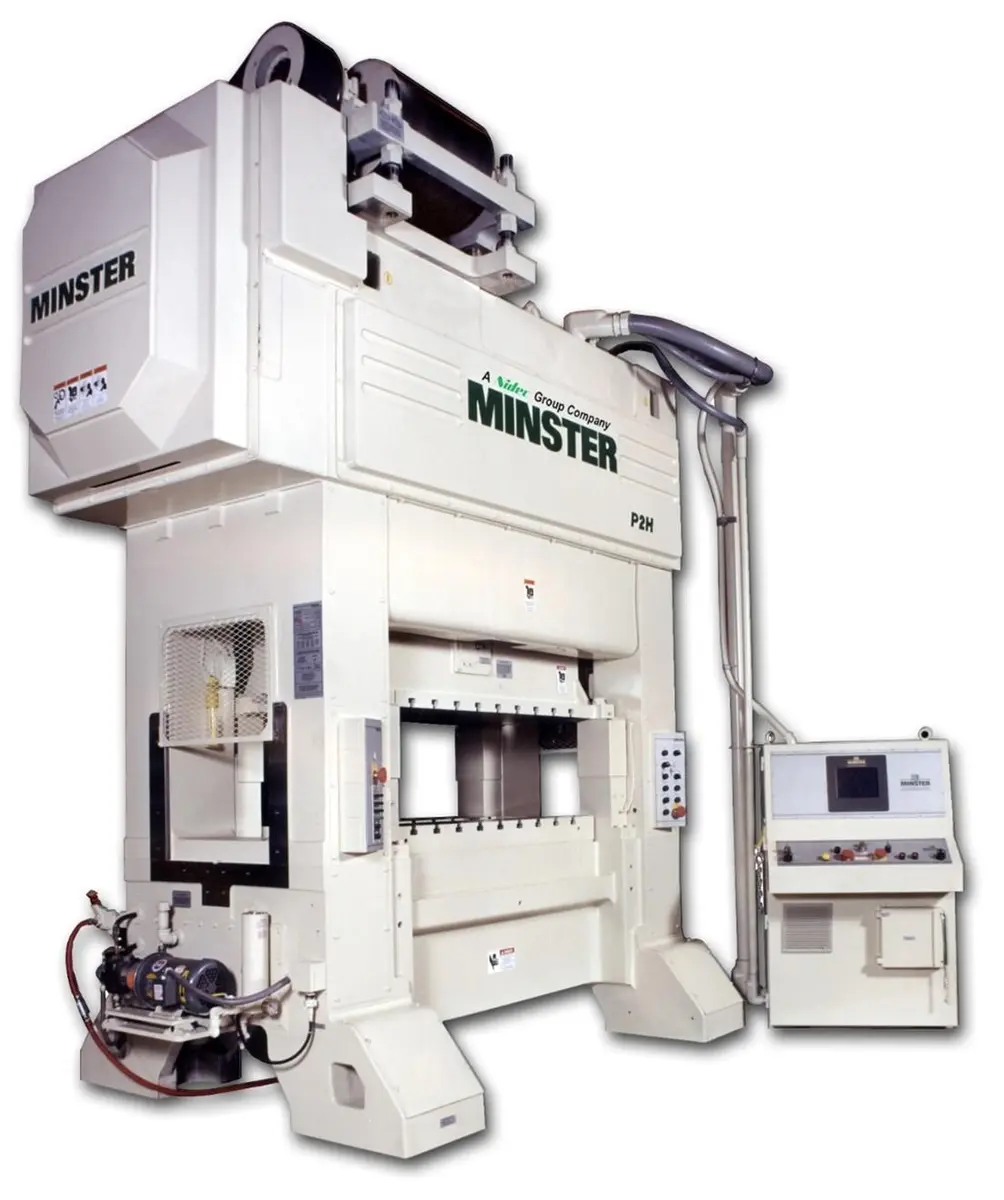

New 2024 MINSTER P2H-160-74X33-FW | Presses, Straight Side

SPECIFICATIONS

Press Specifications
Model Number........................................................   P2H-160-74x33-FW
Force × Distance off Bottom..................................   1600 kN × 1.5 mm (180 ton × 0.060 in)
Crankshaft Extension Location...............................   Opposite Drive Side
Drive Arrangement..................................................   Flywheel
Drive Location........................................................   Left Hand Side
Lube Unit Location.................................................   Opposite Feed Side
Approximate Press Weight.....................................   35 400 kg (78,000 lb)
Shutheight Indicator Readout.................................   Inch
Shop Air Pressure, Minimum..................................   5.9 bar (590 kPa) (85 psi)

Press Slide Specifications
Stroke Length, Speed Range...................................   150 mm (5.90 in),  70 - 200 spm
Shutheight Adjustment...........................................   150 mm (5.90 in)
Quick Access Slide Range......................................   12  - 165 mm (0.50 - 6.50 in)
Area of Slide, R-L × F-B........................................   1900 × 850 mm (74.8 × 33.5 in)
Slide Face Machining..............................................   Standard

Press Bolster Specifications
Bolster Plate Material..............................................   Steel
Bolster Plate Thickness...........................................   125 mm (4.92 in)
Area of Bolster, R-L × F-B.....................................   1900 × 850 mm (74.8 × 33.5 in)
Opening in Bolster, R-L × F-B...............................   1600 × 250 mm (63.0 × 9.9 in)
Bolster Plate Machining..........................................   Standard

Press Frame Specifications
Upright Passline Opening, F-B...............................   630 mm (24.8 in)
Area of Bed, R-L × F-B..........................................   1900 × 850 mm (74.8 × 33.5 in)
Opening in Bed, R-L × F-B....................................   1600 × 370 mm (63.0 × 14.6 in)
Bed Deflection at 67% of Die Area........................   0.12 mm/m (0.0014 in/ft)
Shutheight, Maximum (SDAU)..............................   500 mm (19.69 in)  on Bolster
Approx Clearance, Mount to Bottom of Bed.........   300 mm (11.8 in)
Approx. Distance Mount to Top of Bolster............   1180 mm (46.4 in)
Approx. Distance Mount to Top of Bed.................   1060 mm (41.5 in)
Approx. Floor Area, R-L × F-B..............................   3700 × 2050 mm (144 × 80.0 in)
Approx. Overall Area, R-L × F-B...........................   3700 × 2050 mm (144 × 80.0 in)
Approx. Overall Height, from Mount.....................   4191 mm (165 in)
