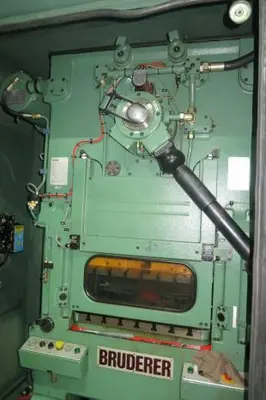

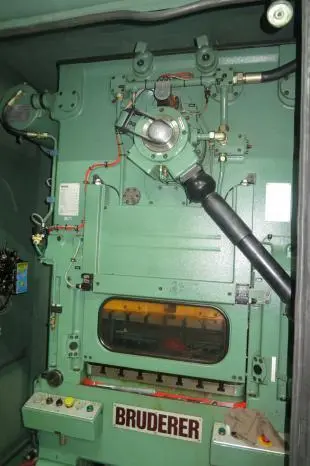

Used Bruderer High Speed BSTA 300
PRESS SPECIFICATIONS:
· Tonnage 300KN
· Strokes/minute 80-1400 (Depending on stroke length)
· 750mm Tool Loading Area
· Adjustable Stroke: 13,16,19,25,32,38,44
· 51mm Ram Adjustment Area
· 171-239mm Shut Height (Depending on stroke length)
· 740 x 480mm Bolster Plate Area
· 710 x 160mm Bolster Plate Opening
· 630 x 360mm Ram Area
· 206mm Strip Inlet Width
· Feed Direction Left to Right
· 5,150 Kg Approx. Weight
