Used BRUDERER BSTA 50L | Presses, High Speed Production
Have one to sell?
ConditionUsed
1 available

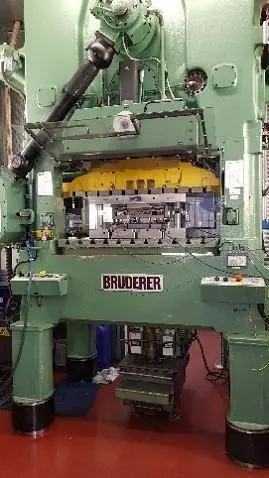

Used Bruderer High Speed Press BSTA 50L
PRESS SPECIFICATIONS:
· Tonnage 500KN
· 950mm Tool Loading Area
· Strokes/minute 80-1120 (Depending on stroke length)
· Adjustable Stroke: 16,19,25,32,38,44,51
· 64mm Ram Adjustment Area
· 212.5-294mm Shut Height (Depending on stroke length)
· 940 x 650mm Bolster Plate Area
· 910 x 200mm Bolster Plate Opening
· 810 x 420mm Ram Area
· 250mm Strip Inlet Width
· 60-140mm Strip Inlet Height
· Feed Direction Left to Right
· 8,400 Kg Approx. Weight
