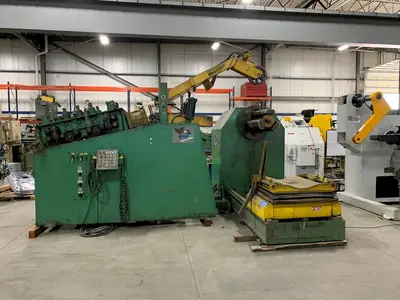

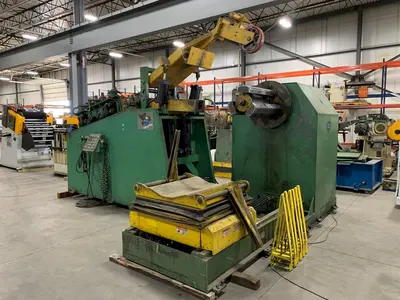

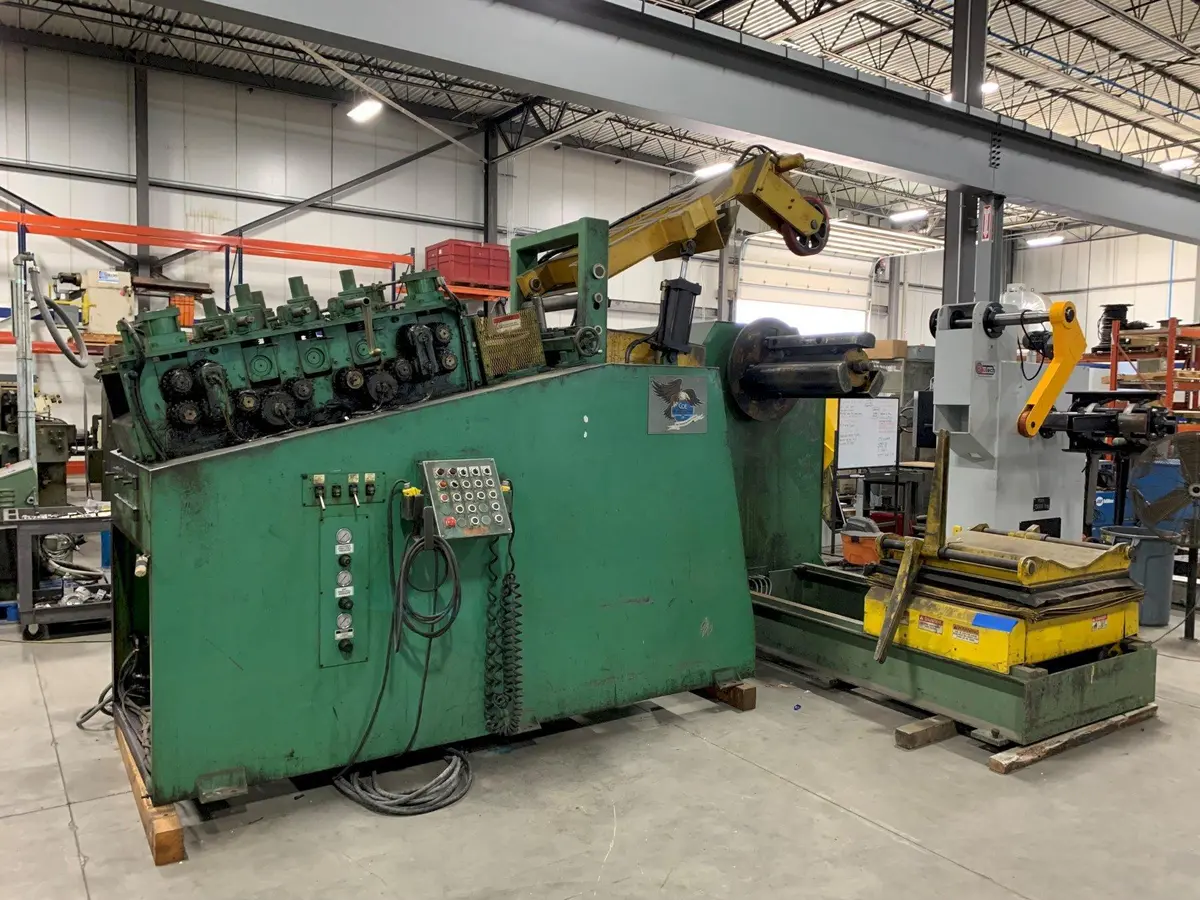

Used COE CPR-PO-10024 / CPPS-PO-500-24 / CPRF-724 | Coil Feed Lines

Coe Press Complete Coil Feed Line Specifications:Coil weight capacity: 10,000 Lbs. Coil width capacity: 24"Stock thickness capacity: .250" @ 24" Wide
Stock thickness capacity: .375" x 12" WideExpansion range: 19" - 24" (To be confirmed)Coil OD capacity: 72"Coe Press Complete Coil Feed Line Equipment and Features:

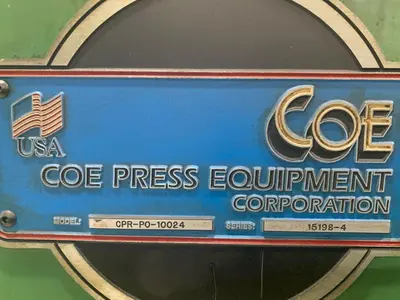

Coe Press Pull Off Coil Reel Uncoiler Model No.: CPR-PO-10024, Serial No.: 15198-4Three leaf mandrel
Hydraulic wedge type madrel expansion
Adjustable coil keeper armsThread drive for jog forward and reverse
Air brake mounted on main spindle
Adjustable tensioning

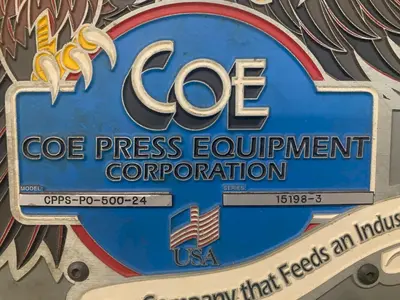

Self contained hydraulic unitTraveling coil load carPowered lift and travelCoe Press Powered Straightener Model No.: CPPS-PO-500-7-24, Serial No.: 15198-3Entry and exit pinch rolls with air operated upper pinch roll adjustmentsSeven straightening rolls x 5 inch diameter
Individual upper straightening roll adjustments via screw jacksAdjustable stock width edge guidesInclined head with exit cascade loop support rollersStock peeler - threading - debending station (PTH)
Air operated coil hold down armMotorized neoprene end wheel
Air operated peeler table with spade extensionOut board lubrication pointsOutboard air pressure regulator and gaugesAC variable frequency drive systemCommon operator's station for control functionsHand held pendant for Jog forward and reverseAuto / Run cycle
Loop control

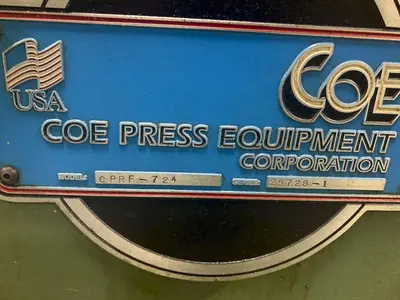

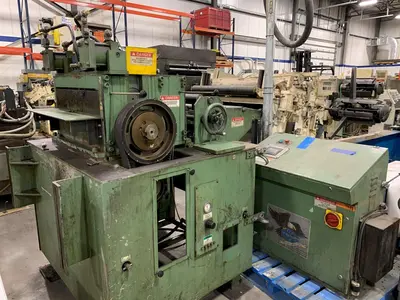

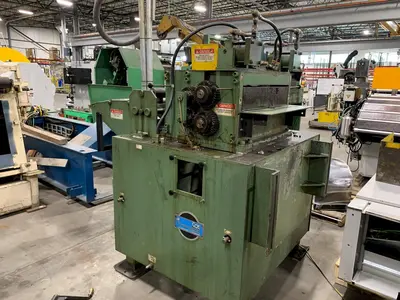

Coe Press Servo Roll Feed Model No.: CPRF-724, Serial No.: 25728-1
Seven inch diameter feed rollsMatte chrome finish on upper and lower feed rollsPrecision cluster gear driven feed rollsPivoting upper feed roll assures gear meshAir operated upper roll adjustment / pilotHeavy duty adjustable stock width edge guidesCascade loop support rollersCabinet base mounted with heavy duty pass line adjustmentNEW AC servo drive and control systemJob memory micro adjust batch count etc(Consult sales for complete details)Free standing sloped front control consoleRemote pendant control for jog forward and reverseFused disconnect480 Volt Preset to customer specificationAuto Mode
