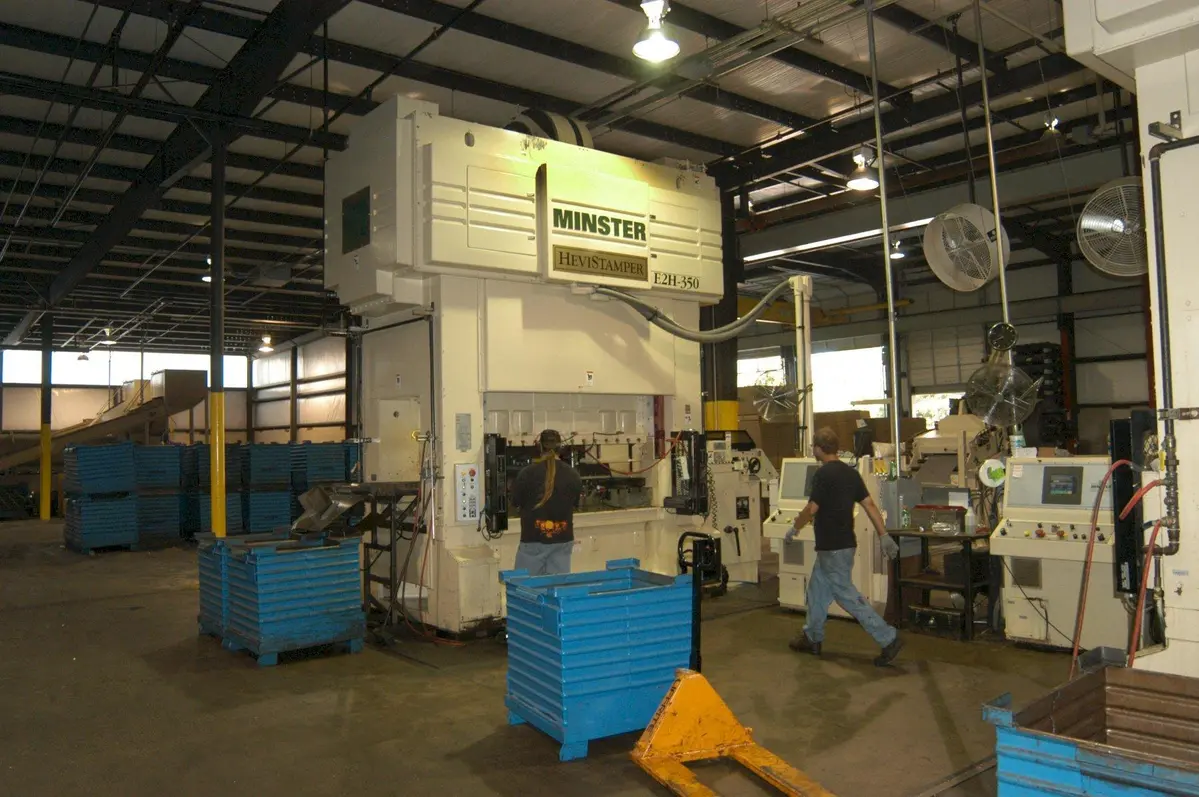

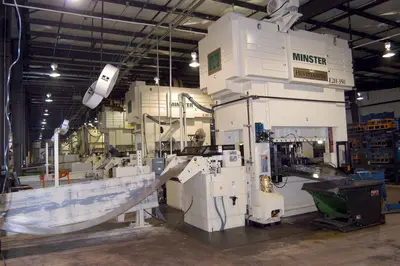

Used 2004 MINSTER E2H-350-86 | Presses, Straight Side

E2H HeviStamper
Specifications (INCH)


Press Specifications
Model Number........................................................   E2H-350-86×47-SG
Force × Distance off Bottom..................................   350 ton × 0.236 in, w/ASM
Crankshaft Extension Location...............................   None
Drive Arrangement..................................................   Single-Gear Twin-End
Drive Location........................................................   Twin Drive
Lube Unit Location.................................................   Rear Leg
Approximate Press Mass.........................................   140,000 lb.
Scale and Display Units..........................................   Inch
Shop Air Pressure, Minimum..................................   85 PSI
Press Slide Specifications
Stroke Length..........................................................   9.84 in
Speed Range............................................................   30 - 100 stroke/min
Quick Access Slide Range......................................   2.95 in
Area of Slide, R-L × F-B........................................   86.6 × 47.4 in
Slide Face Machining..............................................   Standard
Recommended Max Upper Die Mass.....................   5500 lb.
Press Bolster Specifications
Bolster Plate Material..............................................   Steel
Plate Thickness........................................................   9.09 in
Area of Bolster, R-L × F-B.....................................   86.6 × 47.4 in
Opening in Bolster, R-L × F-B...............................   None
Bolster Plate Machining..........................................   Standard

Press Frame Specifications
Upright Passline Opening, F-B...............................   33.5 in
Area of Bed, R-L × F-B..........................................   86.6 × 47.4 in
Opening in Bed, R-L × F-B....................................   76.8 × 15.0 in
Bed Deflection at 50% of Die Area........................   0.0012 in/ft
Shutheight, Maximum (SDAU)..............................   19.6 in., on Bolster
Shutheight Adjustment...........................................   6.89 in
Approx. Clearance, Mount to Bottom of Bed........   4.9 in
Approx. Distance Mount to Top of Bed.................   42.9 in
Approx. Floor Area, R-L × F-B..............................   133 × 91.3 in

Minster Electric Feed Specifications
Model Number........................................................   MEF6-32S
Feed Line Height....................................................   58.0 – 70.0 in over Floor
Feed Roll Diameter.................................................   6.37 in (162mm)
Number of Rolls Driven..........................................   (2)
Minimum Stock Width...........................................   2.00 in (50.8mm)
Maximum Stock Width...........................................   32.0 in (813mm)
Minimum Stock Thickness......................................   0.020 in (.508mm)
Maximum Stock Thickness.....................................   0.312 in (7.92mm)
Max Stk Thickness @ Max Width (40 kpsi yield).   0.151 in x 32 in (3.84mm x 813mm)
Max Stk Width @ Max Thickness (40 kpsi yield).   8.71 in x 0.312 in (221mm x 7.92mm)
Max Stk Thickness x Width x Yield.......................   See Capacity Chart
Roll Opening for Threading....................................   0.470 in (11.9mm)
Feed Repeatability Accuracy..................................    +/- 0.002 in (.05mm)
Maximum Feed Length Preset................................   100 in (2540mm)
Maximum Roll Lift Rate.........................................   250 spm
Scale and Display Units..........................................   Inch
PMC Control Language..........................................   English
Approximate Feed Mass.........................................   6400 lb (2902 Kg)
Drive Reduction Ratio............................................   Single 5 : 1
Feed Setup Station Location...................................   Press Setup Station

Thread Table Specifications
Model Number........................................................   MTT14-32S
Length of Table.......................................................   168 in.
Maximum Stock Width...........................................   32.0 in

Straightener Specifications
Model Number........................................................   MSH30-32
Line Speed..............................................................   40 - 1200 in/min (1 m x 30.48m/min)
Maximum Stock Width...........................................   32.0 in (813mm)
Minimum Stock Width...........................................   2.0 in (50.8mm)
Minimum Stock Thickness......................................   0.020 in (.508mm)
Maximum Stock Thickness.....................................   0.312 in (7.92mm)
Max Stk Thickness @ Max Width (40 kpsi yield).   0.151 in x 32 in (3.84mm x 813mm)
Max Stk Width @ Max Thickness (40 kpsi yield).   8.71 in x 0.312 in (221mm x 7.92mm)
Max Stk Thickness x Width x Yield.......................   See Capacity Chart
Work Rolls Full Open.............................................   0.300 in (7.62mm)
Work Rolls Full Close.............................................   - 0.300 in (7.62mm)
Work Rolls Number Driven....................................   6
Work Rolls Quantity...............................................   7
Work Rolls Diameter..............................................   3.00 in (76.2mm)
Work Rolls Center Distance...................................   4.50 in (114mm)
Pinch Roll Diameter................................................   5.06 in (128mm)
Pinch Roll Opening.................................................   0.50 in (12.7mm)
Pinch Roll Sets........................................................   1
Pinch Rolls Number Driven....................................   2
Head Inclination......................................................   15 Degrees
Entry Pass Line Height...........................................   68.0 in (1727mm)
Exit Pass Line Height.............................................   56.0 in (1422mm)
Scale and Display Units..........................................   Inch
Pneumatic Supply Pressure.....................................   80 PSI (551 Kpa)
Approximate Straightener Mass..............................   8000 lb (3628 Kg)
Approx. Floor Area, R-L × F-B..............................   42 in × 53 in (1.06 m x 1.35 m)
Approx. Overall Area, R-L × F-B...........................   115 in × 58.5 in (2.92 m x 1.49 m)

Reel Specifications
Model Number........................................................   MRH20-38S
Maximum Capacity per Mandrel............................   24,000 lb
Maximum Strip Width............................................   38.0 in
Minimum Strip Width.............................................   2.0 in
Maximum Strip Thickness......................................   0.38 in
Coil I.D. Range.......................................................   20.0 - 24.0 in
Coil O.D. Maximum................................................   72.0 in
Max Width at Full OD (by wt.)..............................   27.3 in
Max OD at Full Width (by wt.)..............................   62.3 in
Scale and Display Units..........................................   Inch
Coil Load Position..................................................   Towards Operator
Number of Coil Shoes.............................................   (3)
Approx. Floor Area, R-L × F-B..............................   78.0 × 119 in
Center Mandrel to Floor .........................................   72.0 in
Approximate Reel Mass..........................................   9500 lb
