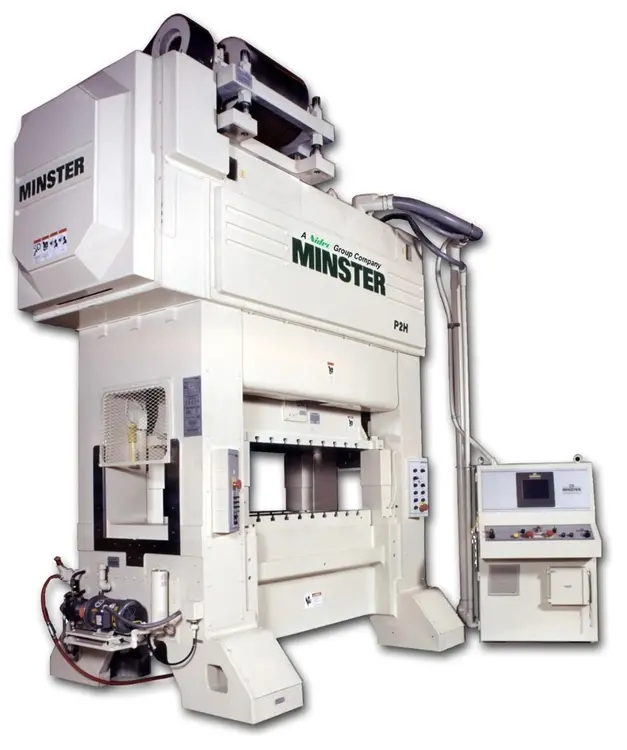

Used 1999 MINSTER P2H-160G | Presses, Straight Side

P2H-160G-75 GEARED TYPE PRESS
Specifications (U.S.)

GENERAL
Capacity off Bottom....................................................................... 1600 KN @ 6.0 mm
Drive Arrangement................................................................................. Single Geared
Shutheight Indicator Readout............................................................................... Inch
Lube Unit Location........................................................................................ Right Side
Approximate Press Weight.......................................................................... 75,000 lbs.

SLIDE
Stroke/Speed........................................................................................... 5.91”/150 SPM
Adjustment of Slide................................................................................................... 5.9”
Quick Lift Slide Range................................................................................... 0.5” - 6.5”
Area of Slide, R-L x F-B............................................................................... 75” x 33.5”
Slide Face Machining................................................................... Standard 1” T-slots

BOLSTER
Bolster Plate Material............................................................................................ Steel
Thickness of Bolster Plate..................................................................................... 4.92”
Shutheight Range on Bolster to slide subplate................................. 14.21” - 20.1”
Area of Bolster, R-L x F-B (SPECIAL)......................................................... 75” x 44”
Opening in Bolster, R-L x F-B...................................................................... 63” x 9.8”
Bolster Machining......................................................................... Standard 1” T-slots

FRAME
Upright Passline Opening, F-B............................................................................ 24.8”
Opening in Bed, R-L x F-B.......................................................................... 63” x 14.6”
Distance, Floor to Bottom of Bed....................................................................................................... 17”
Distance Floor to Top of Bolster........................................................................... 46.4”
Distance Floor to Top of Bed................................................................................. 41.5”
Floor Space, R-L x F-B............................................................................... 132.5” x 80”
Overall Area, R-L x F-B............................................................................. 132.5” x 80”
Approximate Overall Height (w/o mounts)............................................................... 160”
Minster Electric Feed Specifications
Model Number........................................................   MEF5-26S
Minimum Feed Line Over Floor.............................................................................. 52”
Maximum Feed Line Over Floor.............................................................................. 61"
Minimum Feed Line Over Bed........................................................................... 10.52"
Maximum Feed Line Over Bed........................................................................... 19.52"
Floor to Top of Bed................................................................................................... 41.5"
Feed Roll Diameter................................................................................................ 5.392"
Maximum Stock Width......................................................................................... 26.00"
Minimum Stock Thickness.................................................................................. 0.020"
Maximum Stock Thickness.................................................................................. 0.250"
Maximum Thickness at Full Width................................................................... 0.125"
Maximum Width at Full Thickness................................................................... 16.00"
Roll Opening for Threading................................................................................... 0.47"

Display Readout........................................................................................................ Inch

MTT12-26S THREADING TABLE

Length of Table............................................................................................................ 12’
Maximum Stock Width.............................................................................................. 26”

MSH30-26-7 STRAIGHTENER

Capacity (Based on Mild Steel)
Maximum Strip Thickness.................................................................................. 0.350"
Minimum Strip Thickness................................................................................... 0.020"
Maximum Strip Width....................................................................................... 26.000"
Maximum Width at Maximum Thickness....................................................... 5.000"
Maximum Thickness at Full Width................................................................... 0.140"
Line Speed................................................................................................. 40-1,200 IPM

MR15-26S SINGLE REEL

Coil Weight, Maximum on Center............................................................. 15,000 lbs.
Coil Width, Maximum................................................................................................ 26"
Coil I.D. Range................................................................................................. 20" to 24"
Coil O.D., Maximum.................................................................................................... 72"
Display Readout (Metric or Inch).......................................................................... Inch

Coil Load Position................................................................................... Operator Side
