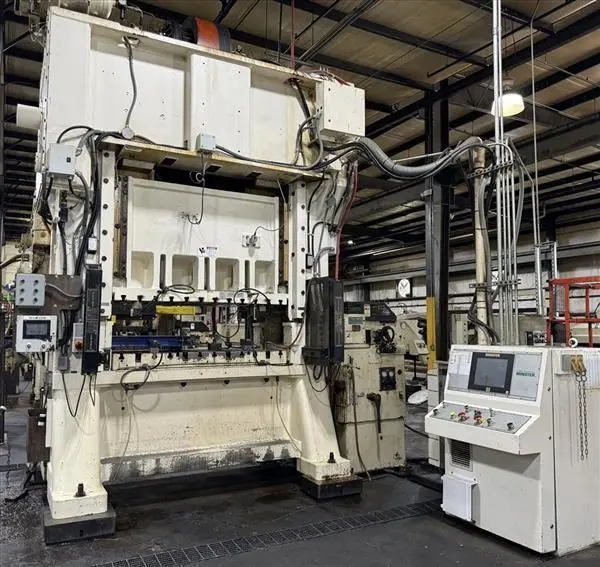

Used 1984 MINSTER E2-300-72 | Presses, Straight Side

E2-300-72X36-SG
Specifications (U.S.)
 Press Specifications
Shutheight Indicator Readout......................................................   Inch
Capacity at Distance off Bottom.................................................   300 ton at 0.236 in
Drive Arrangement......................................................................   Single Geared Twin Drive
Approximate Press Mass.............................................................   96,000 lb.

Press Slide Specifications
Stroke Length..............................................................................   4.0 in
Speed Range................................................................................   0-120 SPM
Adjustment of Shutheight............................................................   6.0 in
Area of Slide, R-L x F-B.............................................................   72.0 x 36.0 in
Slide Face Machining..................................................................   Standard

Press Bolster Specifications
Bolster Plate Material..................................................................   Steel
Bolster Plate Thickness................................................................   6.00 in
Area of Bolster, R-L x F-B..........................................................   72.0 x 36.0 in

Press Frame Specifications
Upright Passline Opening, F-B....................................................   22.0 in
Area of Bed, R-L x F-B...............................................................   72.0 x 36.0 in
Opening in Bed, R-L x F-B.........................................................   none
Bed Deflection.............................................................................   0.0018 in/ft
Shutheight, SDAU......................................................................   20.00 in, on Bolster
Approx. Clearance, Foot to Bottom of Bed................................   0.50 in
Approx. Distance Foot to Top of Bolster....................................   50.0 in
Approx. Distance Foot to Top of Bed.........................................   44.0 in
Approx. Floor Space, R-L x F-B.................................................   114 x 76.0 in
MEF5-26S SINGLE ROLL ELECTRIC FEED
Specifications (U.S.)

Minimum Feed Line Over Floor.......................................................................................... 52”
Maximum Feed Line Over Floor.......................................................................................... 61"
Minimum Feed Line Over Bed....................................................................................... 10.52"
Maximum Feed Line Over Bed....................................................................................... 19.52"
Floor to Top of Bed.......................................................................................................... 41.5"
Feed Roll Diameter........................................................................................................ 5.392"
Maximum Stock Width.................................................................................................. 26.00"
Minimum Stock Thickness............................................................................................. 0.020"
Maximum Stock Thickness............................................................................................ 0.250"
Maximum Thickness at Full Width................................................................................. 0.125"
Maximum Width at Full Thickness................................................................................. 16.00"
Roll Opening for Threading.............................................................................................. 0.47"
Display Readout................................................................................................................ Inch

MTT12-26S THREADING TABLE
Specifications (U.S.)
Length of Table.................................................................................................................. 12’
Maximum Stock Width....................................................................................................... 26”

MSH30-26-7 STRAIGHTENER
Specifications (U.S.)

Capacity (Based on Mild Steel)
Maximum Strip Thickness.............................................................................................. 0.350"
Minimum Strip Thickness.............................................................................................. 0.020"
Maximum Strip Width.................................................................................................. 26.000"
Maximum Width at Maximum Thickness........................................................................ 5.000"
Maximum Thickness at Full Width................................................................................. 0.140"
Line Speed......................................................................................................... 40-1,200 IPM

MR15-26S SINGLE REEL
Specifications (U.S.)
Coil Weight, Maximum on Center............................................................................ 15,000 lbs.
Coil Width, Maximum........................................................................................................ 26"
Coil I.D. Range........................................................................................................ 20" to 24"
Coil O.D., Maximum......................................................................................................... 72"
Display Readout (Metric or Inch)....................................................................................... Inch
Coil Load Position.............................................................................................. Operator Side
